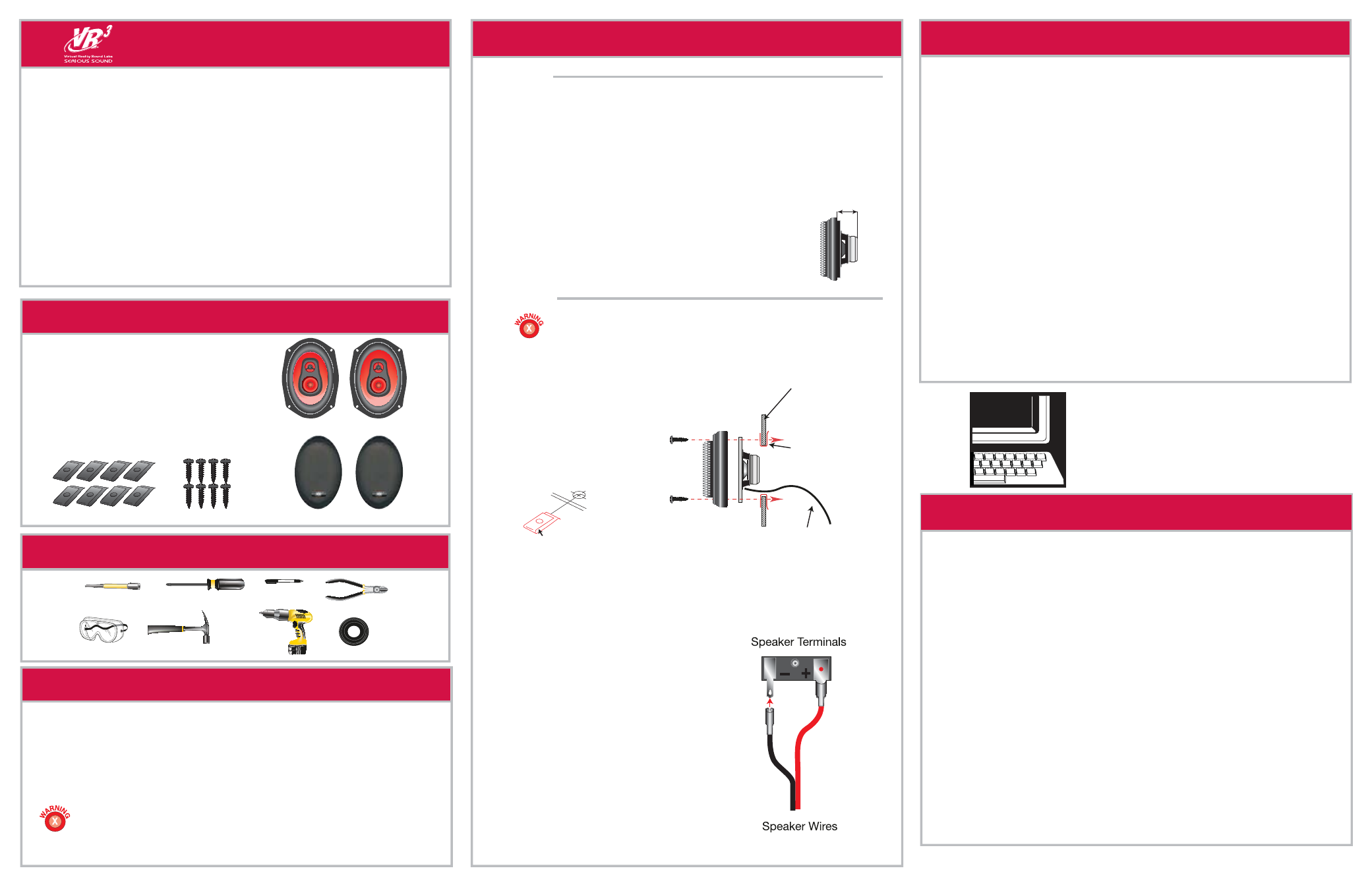

Roadmaster 3-way Speakers RS570-680 - Manual

• Nail Set/Center Punch • Marker/Pen
• Safety Glasses • Electrical Tape
• Phillips Screwdriver
• Hammer
• Wire Cutter
• Electric Drill
with 1/16" bit
INTERIOR PANEL
SPRING NUT
The small hole of
the spring nut is on
this side of panel
SPEAKER
WIRE Spring Nut
GIVE US A CALL, WE'LL HELP YOU INSTALL.
1-800-445-1797
PLEASE DO NOT RETURN PRODUCT TO STORE.
Visit us on the WEB
www.vr-3.com
For Information and Technical Assistance,
Call Toll-Free in U.S.A. and Canada.
Parts & Specifi cations
• 5” x 7” Polypropylene Coated Paper Cones
• 10 Oz. Magnet
• Foam Rubber Surrounds
• 100 Watts Maximum Peak Power per Pair
• 10 watts RMS Power per Pair
• 110 Hz - 20,000 Hz Frequency Response
• Bridgless 1” Midrange speakers
• Dome Tweeters
• Quick Release Terminals
RS570-680
5” x 7” Three-Way Speaker
Dear Customer,
CONGRATULATIONS.
The RS570-680 5” x 7” 3-way speakers, when used as described, will give you years
of dependable service in your car, truck, RV or mini-van. We have taken numerous
measures in quality control to ensure that your product arrives in top condition, and
will perform to your satisfaction. In the rare event that your RS570-680 5” x 7” 3-way
speakers contain a damaged or missing item, does not perform as specifi ed, requires
warranty service, or you have an installation problem,
DO NOT RETURN THIS PROD-
UCT TO THE STORE. PLEASE CALL OUR TOLL FREE NUMBER FROM THE U.S.A.
AND CANADA 1-800-445-1797
and ask to speak with a member of our technical ser-
vice team, or submit your questions by E-Mail to [email protected] and a
member of our technical service team will respond by E-Mail to your questions. Our
in-house technical service team will expedite delivery of your part, advise you on
installation, or help troubleshoot a problem with you. If your product needs warranty
service, our technical service team representative will help you obtain the fastest rem-
edy possible under the warranty.
Before You Install
We understand that automotive audio equipment installations can be troublesome at
times, even to the most experienced of installation technicians. If you are not confi -
dent working with electrical wiring, removing and reinstalling interior panels, carpet-
ing, dashboards or other components of your vehicle, please call our TOLL-FREE help
line 1-800-445-1797 and our in-house technical service team will answer your instal-
lation questions.
Before installing these speakers, check the vehicle’s owner’s manual for loca-
tions of important vehicle components such as air bags, CO2 systems, fuel
systems, & electrical systems installed in the vehicle. Accidental deployment
of air bags may result in serious injury.
Tools Needed To Install
Installation
2 5 /
8
" or 6 1 /
2
cm
Speaker Depth
If you are installing the RS570-680 speakers to upgrade/replace your existing speak-
ers, remove the existing speakers from your vehicle, disconnect the speaker wires and
mark the polarity. Place the RS570-680 speakers in the location you selected in your
vehicle and connect the existing speaker wires. Make sure to keep the polarity of the
speakers and wires correct (positive wire to positive speaker terminal and negative or
ground wire to negative terminal)
Before you install your speakers you must make sure you have
enough depth/space behind the mounting surface. You do not
want the back of the speaker magnet to touch any part of your ve-
hicle, or interfere with the operation or function of any component
in your vehicle. (ie. windows or trunk lid)
Location
You should only mount your speakers in factory precut holes. We
DO NOT recommend that you cut holes for mounting the speakers. If
there are no factory precut holes consider having the speakers pro-
fessionally installed.
Mounting
1. Connect the speaker wires to
the speaker. Maintain polarity by
connecting the positive wire to the
positive speaker terminal, and the
negative wire to negative speaker
terminal.
2. Slip the supplied spring nuts into
place and align the holes.
3. Screw the speaker into
place with screws (provided).
4. Firmly attach the speaker
grill cover.
What if there is no sound?
1. Your stereo may have a blown fuse. Replace fuse with the same amperage and style.
2. You may have improper wiring. Refer to the wiring guide that came with your ste-
reo/amplifi er. Check all wires for a secure connection.
What if the sound volume is low?
Your stereo may not have enough power, you may have to install an amplifi er to
drive the speakers
Why do I have a whining noise coming from the speakers?
You may have poor fi ltering of your alternator. If that is the case then you
may need to add an alternator fi lter to the power lead.
Why do I have odd sounding noises coming from the speakers?
You may have corroded battery terminals and/or a weak battery. If the terminals on
the battery are corroded clean them, then check the sound. If the sound system is
still making noises check battery strength. If it is low recharge or replace the battery.
Why does the speaker have sound coming from one channel only?
First make sure the balance control is set correctly. If the balance is set correctly
your stereo may be defective or the speaker may be defective. To troubleshoot
this problem you MUST change both positive and negative leads of each channel
with the positive and negative leads of the opposite channel, if the same speaker has
no sound then the speaker is no good, if the opposite speaker has no sound then
your stereo may be defective.
Limited Warranty
VIRTUAL REALITY SOUND LABS® products are designed and manufactured to provide a high level of trouble-free performance.
VIRTUAL REALITY SOUND LABS® warrants, to the original purchaser, that its products are free from defects in material and
workmanship for 30 days from the date of original purchase. As part of our commitment to product excellence, VIRTUAL REAL-
ITY SOUND LABS® and/or its affi liates routinely improve the designs, materials or production methods of its existing products.
Because it is impractical to publicize all changes in every product, we reserve the right to make such changes without notice.
CONDITIONS OF WARRANTY:
If during the 30 day warranty period your new product is found to be defective, VIRTUAL REALITY SOUND LABS® will repair
such defect, or replace the product, without charge for parts or labor subject to the following conditions:
1. All repairs must be performed by VIRTUAL REALITY SOUND LABS® and/or its affi liates in Eatontown, New Jersey.
2. The equipment must not have been altered or been damaged through negligence, accident, or improper operation.
3. The replacement of parts are exempted from this warranty when replacement is necessary due to normal wear and tear.
4. All warranty claims must be accompanied by a copy of the sales receipt or bill of sale.
5. Repair or replacement parts supplied by VIRTUAL REALITY SOUND LABS® under this warranty are protected only for the
unexpired portion of the original warranty.
6. In the case of car stereos, this warranty does not extend to the elimination of car static or motor noise; correction of antenna
problems; costs incurred for the removal or reinstallation of the product; damage to tapes, speakers, accessories or car electrical
systems.
7. VIRTUAL REALITY SOUND LABS® will not be responsible for any charge incurred for installation.
OWNER’S RESPONSIBILITIES:
VIRTUAL REALITY SOUND LABS® will make every effort to provide warranty service within a reasonable period of time.
SHOULD YOU HAVE ANY QUESTIONS ABOUT SERVICE RECEIVED, OR IF YOU WOULD LIKE ASSISTANCE IN OBTAINING
SERVICE, PLEASE CALL TOLL FREE 1-800-445-1797, 8:30am - 4:30pm EST.
In order to provide you with the proper warranty service, we request that you adhere to the following procedure:
1. Include a copy of your sales receipt or bill of sale with your unit when it is returned for warranty service.
2. If it is necessary to return your product for service, please return it securely packed, preferably in the original shipping carton,
and freight and insurance prepaid to the following address: VIRTUAL REALITY SOUND LABS, Service Department, 41 James
Way, Eatontown, New Jersey 07724.
3. Please include a detailed explanation of the problem you are having.
4. If your product is found by VIRTUAL REALITY SOUND LABS® to have a defect in material or workmanship, within the warranty
period, it will be repaired or replaced at no charge and returned to you prepaid. Where permitted by Iaw VIRTUAL REALITY
SOUND LABS® liability shall be limited to that set forth in this warranty. This warranty shall be the exclusive remedy of the
purchaser.
VIRTUAL REALITY SOUND LABS® makes no other warranty of any kind, expressed or implied; and all implied warranties, are
hereby disclaimed by VIRTUAL REALITY SOUND LABS® and excluded from this warranty, VIRTUAL REALITY SOUND LABS®
and/or its affi liates, the manufacturer, distributor and seller shall not be liable for any injury, loss or damage, incidental or conse-
quential, arising out of the use or intended use of the product.
©2008 Intellectual Solutions Inc., All rights reserved. All designs, logos and images are the exclusive property of Intellectual Solutions Inc.
and/or its affi liates. U.S. and Foreign Patents Pending. 072408 Printed in China 00000
2 Speakers
2 Grills 8 Screws 8 Spring Nuts
Speaker wires with female disconnects on one
end are recommended. When connecting the
speaker wires to your speakers in a new instal-
lation, you should follow the wiring instructions
from your audio system’s manufacturer.
Attach the quick disconnect connectors to the
speaker terminals as shown. Maintain proper
polarity by attaching the Positive Wire(
+ ) to
Positive Terminal( + ) and the Negative Wire(-) to
Negative Terminal(-).
For most systems the positive wire attaches to
the positive speaker terminal and the negative
wire attaches to the negative terminal.
2.4” or 6.1 cm
Frequently Asked Questions
