FEATURES
PRODUCT SPECIFICATIONS
Blade Diameter ...........................................................10 in.
Arbor Hole .................................................................5/8 in.
No Load Speed .....................................5,500 r/min. (RPM)
Input ................................ 120 V, 60 Hz, AC Only, 15 Amps
Net Weight ................................................................ 34 lbs.
Cutting Capacity with Miter at 0°/Bevel 0°:
Maximum nominal lumber sizes: ...................... 2 x 6, 4 x 4
Cutting Capacity with Miter at 45°/Bevel 0°:
Maximum nominal lumber sizes: ................................2 x 4
Cutting Capacity with Miter at 0°/Bevel 45°:
Maximum nominal lumber sizes: ................................2 x 6

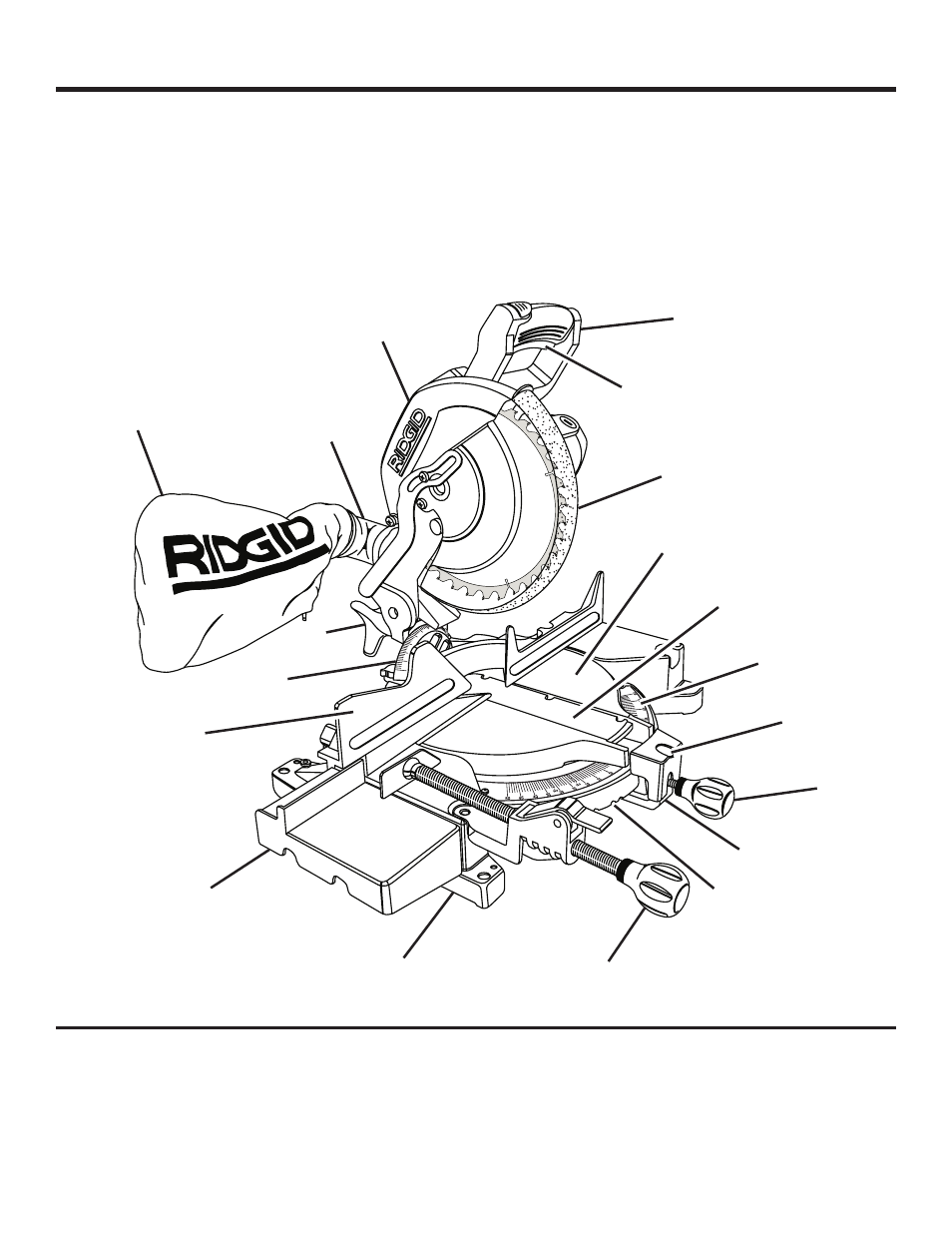

Fig. 1
LOWER
BLADE GUARD
MITER
LOCK
HANDLE
SWITCH
TRIGGER
MITER SCALE
DUST
GUIDE
UPPER
BLADE GUARD
SLIDING
MITER FENCE
MITER
TABLE
BEVEL SCALE
BEVEL
LOCK KNOB
POSITIVE
STOP(S)
ZERO CLEARANCE
THROAT PLATE
CONTROL ARM
MITER
LOCK PLATE
SAW BASE
TABLE
EXTENSION
DUST
BAG
WORK
CLAMP
“D” HANDLE
