Chapter 1

5

Graphics contained within this publication are for representation only.

Connections & Setup

Explanation of Jacks

This section describes the jacks you can use to make connections. There are several
ways to connect components to your TV.

TV ANT

Lets you connect a coaxial cable to receive the signal from the antenna,

cable, cable box, or if using the example on page 4, a VCR.

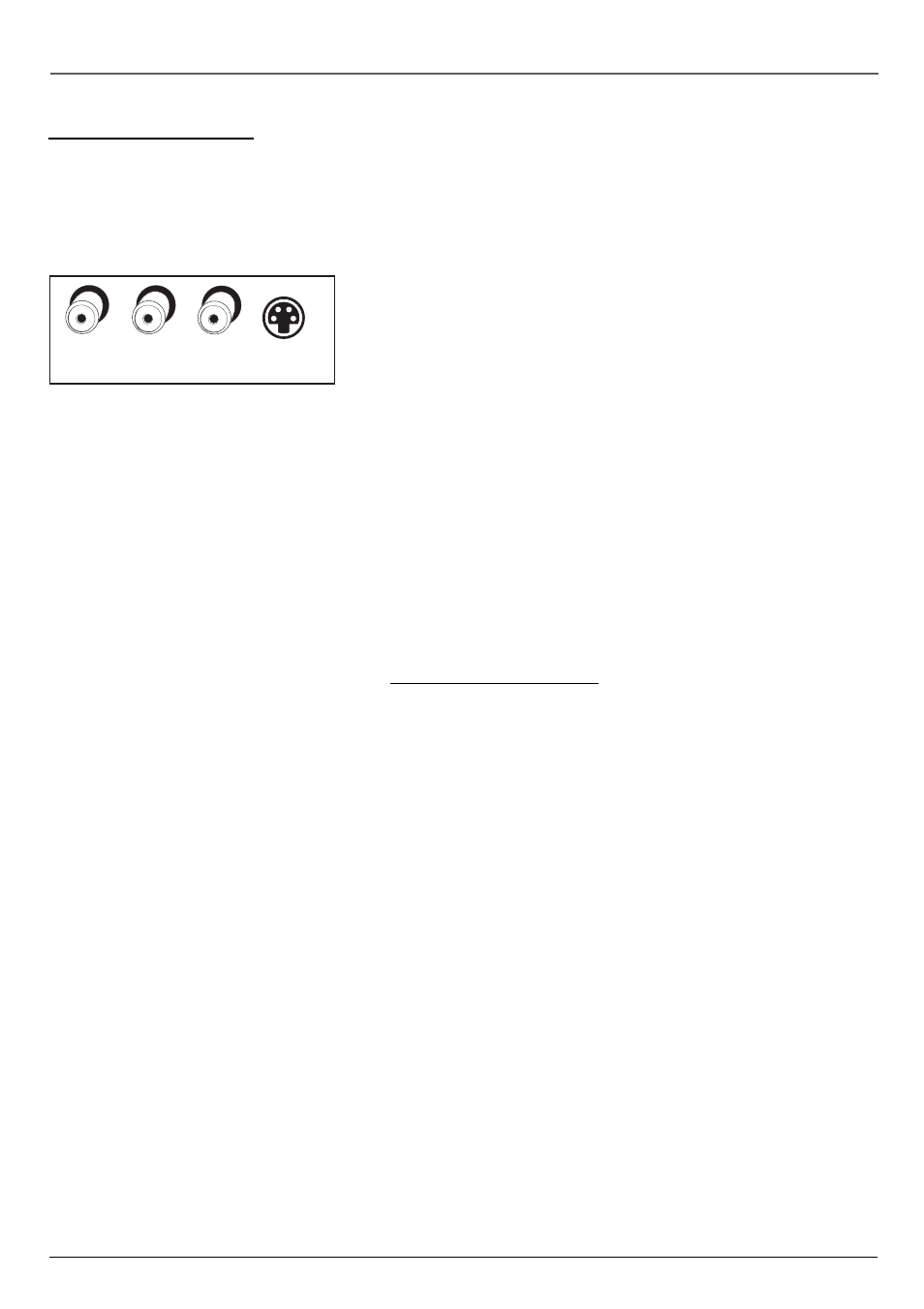

VIDEO 1
VIDEO, AUDIO R and L/MONO

Lets you connect a

component such as a VCR, DVD player, or laserdisc player.

R (RIGHT) AUDIO

Provides right audio connection. The

right audio connector is usually red.

L/MONO AUDIO

Provides left audio connection. The

left audio connector is usually white.

VIDEO

Provides composite video connection. The video

connector is usually yellow.

S-VIDEO IN

Provides better picture quality than the

video jacks because the color part of the signal is
separated from the black and white part of the picture.
When using S-VIDEO IN, make sure to connect left and
right audio cables to the L/MONO and R AUDIO Input
jacks.

The Front of Your TV

Front Input Jacks

The TV has front input jacks for your convenience: one set of
audio/video inputs and a headphone jack. To access the
component you connected to the front of the TV, press the
INPUT button on your remote until FRNT appears on the
screen. The jacks are ideal for connecting a video game
console or a camcorder.

Note: When connecting a component that has only one audio jack,
such as some camcorders, use the TV’s AUDIO L /MONO jack to hear
the audio.

VIDEO

Receives video from another component such as a

VCR, camcorder, or video game console.

L/MONO and R AUDIO

Receives audio from another

component such as a VCR, camcorder, or video game console.

PHONES

Allows you to connect headphones to listen to the

sound coming from the TV.

R

L/MONO

AUDIO

VIDEO S-VIDEO IN

VIDEO 1
