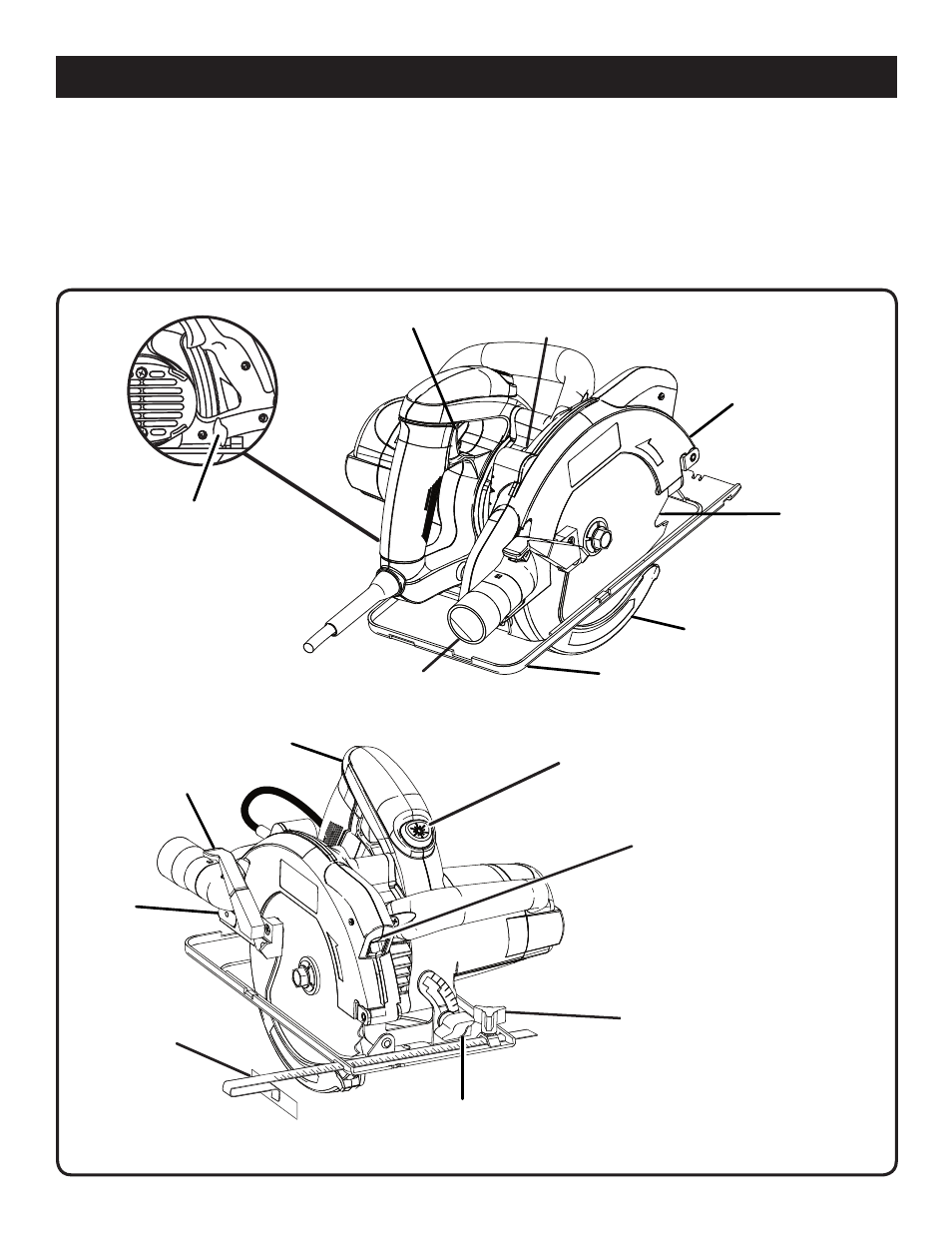

FEATURES
Fig. 1
PRODUCT SPECIFICATIONS
 Blade Diameter ................................................. 7-1/4 in.
 Blade Arbor ...........................................................5/8 in.
 Cutting Depth at 0° ........................................... 2-3/8 in.
 Cutting Depth at 45° ..................................... 1-13/16 in.
 Cutting Depth at 51.5° ...................................... 1-5/8 in.
 Input ................................... 120 V, 60 Hz, AC Only, 14 A
 No Load Speed .................................5,500 r/min. (RPM)
 Net Weight ........................................................... 11 lbs.
 Laser Guide ....................Class IIIa, <5mW max, 650nm
SWITCH
UPPER BLADE
GUARD
BASE
LOWER
BLADE
GUARD
BLADE
DEPTH
ADJUSTMENT
KNOB
LOWER BLADE
GUARD HANDLE
BEVEL ADJUSTMENT
KNOB
HANDLE
EDGE GUIDE
DUST CHUTE
EDGE GUIDE
KNOB
SPINDLE LOCK BUTTON
FRONT LASER
GUIDE
REAR LASER
GUIDE
LASER GUIDE
BUTTON
