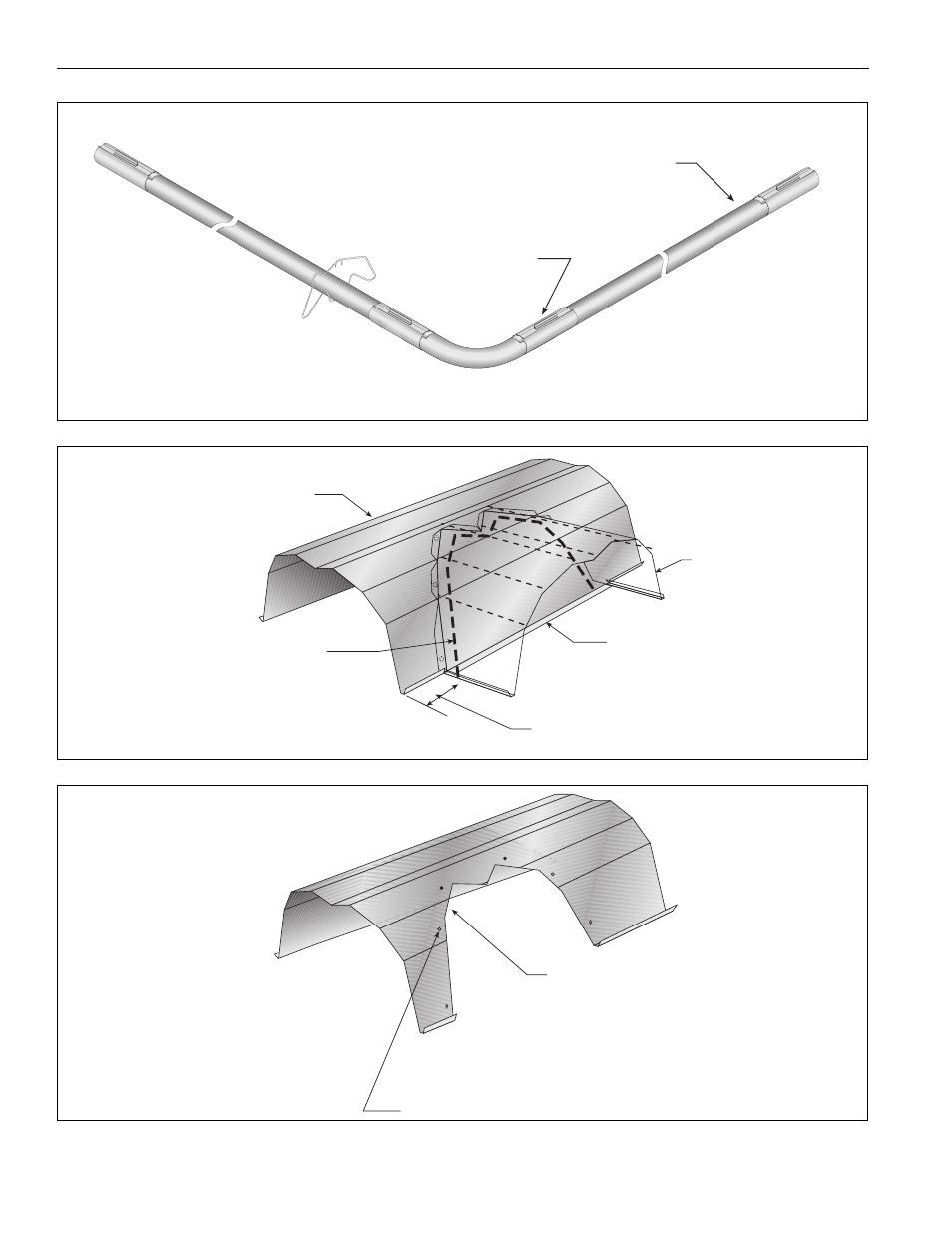

Step 7.2.2 Elbow Installation

Step 7.2.3 Reflector Joint Installation

Step 7.2.4 Reflector Joint Installation

Tube

Coupling

Reflector

Reflector

Joint

Flatten Edge

1" (2.5 cm)

Maximum

Scribe

Contour

Cut away contour

with tin snips.

Punch/drill six 3/32" (2 mm) holes.
