17
Quick Setup Connections
1) Connect a white cable from the LEFT AUDIO OUTPUT on the back of the TV to the
LEFT AUDIO INPUT on the amplifier.
2) Connect a red cable from the RIGHT AUDIO OUTPUT on the back of the TV to the
RIGHT AUDIO INPUT on the amplifier.
Notes:
• Refer to your amplifier’s manual for more information.
• You can use AUDIO OUTPUT for your home theater system.

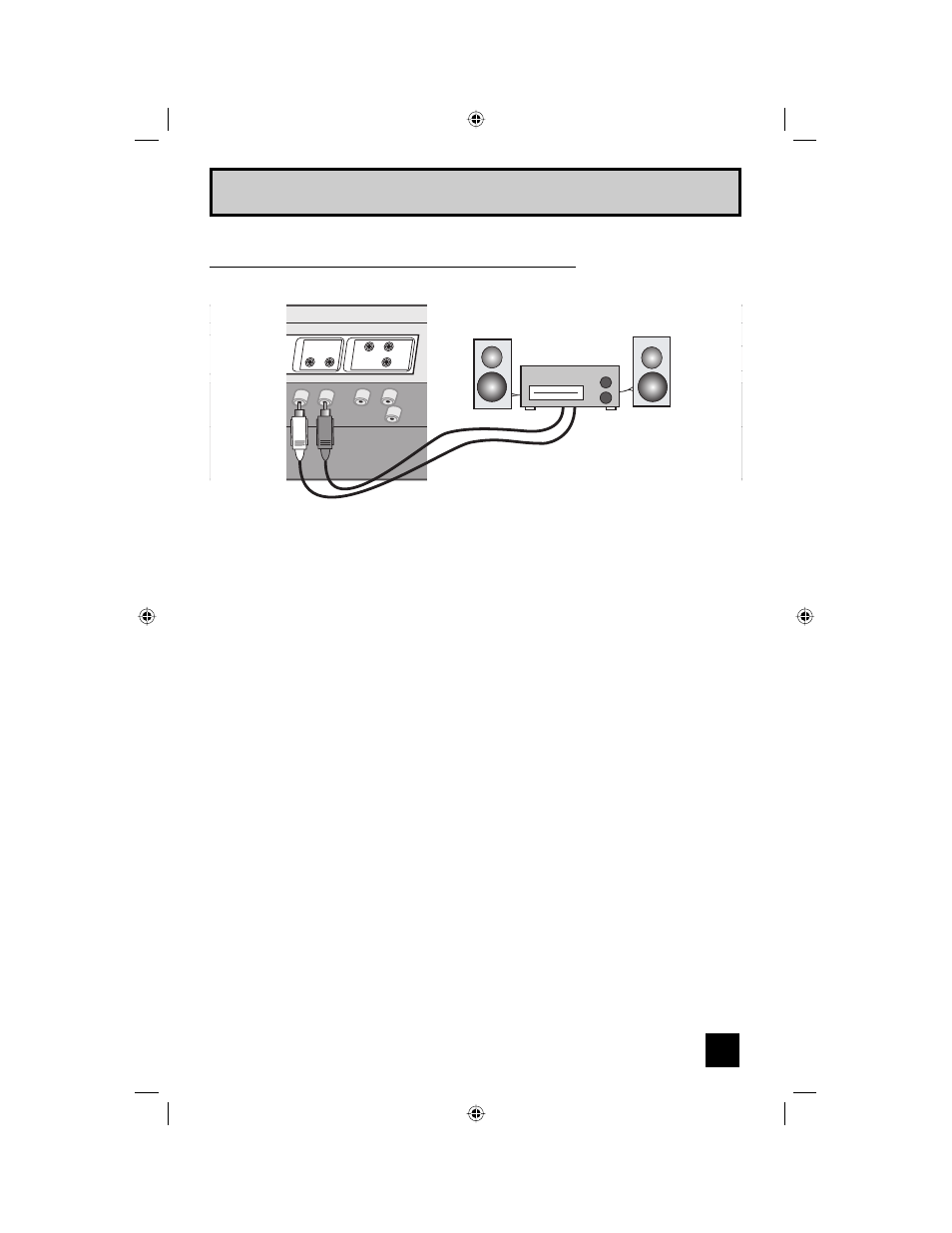

Connecting to an External Amplifier
TV Rear Panel
L
I
AUDIO
I
R
L - AUDIO - R VIDEO
INPUT 3
AUDIO OUT
L
I
AUDIO
I
R
VIDEO
INPUT 2 S-
VIDEO
L
I
AUDIO
I
R
VIDEO
S-
VIDEO
Y Pb Pr 75Ω
(VHF/UHF)
INPUT 1
Speaker Speaker
Amplifier
