Ryobi 750r - Manual (Page 79)

E27

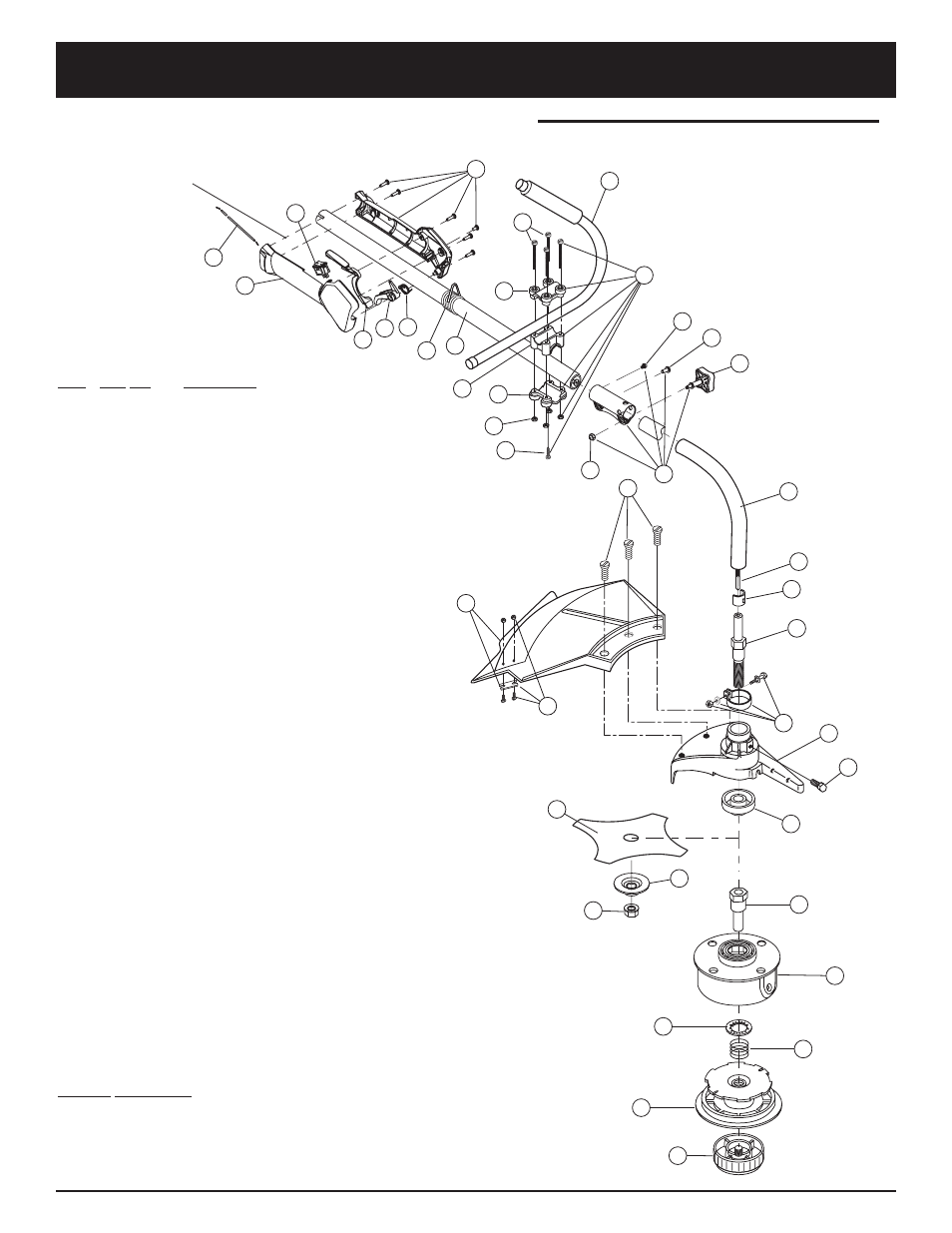

PARTS LIST
ENGINE PARTS - MODEL 750r
2 CYCLE GAS TRIMMER
PPN- 41AD750A034
Item Part No. Description
1 791-182801 Throttle Housing and Trigger
Assembly (includes 2-5)
2 791-182802 Throttle Trigger Lock-Out
3 791-182803 Throttle Trigger
4 791-182690 Throttle Trigger Spring
5 791-182405 Switch Assembly
6 753-04278 Throttle Cable Assembly
7 791-610327 Harness Clip
8 791-181938 Upper Drive Shaft Housing Assembly
9 791-181099 J-Handle Assembly
10 791-683295 Handle Bracket Assembly (includes 11-16)
11 791-181811 Screws
12 791-181812 Upper Handle Clamp
13 791-181813 Middle Handle Clamp
14 791-181814 Lower Handle Clamp
15 791-181815 Nut
16 791-145569 Anti-Rotation Screw
17 791-181616 EZ-Link Coupler (includes 18-21)
18 791-182057 Screw
19 791-181617 Bolt
20 791-181618 Adjustment Knob
21 791-181886 Knob Retaining Nut
22 791-180733 Lower Drive Shaft Housing Assembly
23 791-181852 Lower Flexible Drive Shaft
24 791-181578 Retainer Sleeve (includes 28)
25 791-180724 Output Shaft
26 791-153597 Clamp Assembly
27 791-153598 Bearing Housing Assembly
28 791-180288 Mounting Bolt
29 791-683304 Shield Mounting Screw
30 791-683299 Shield and Blade Assembly (includes 31)
31 791-682061 Blade Assembly
32 791-147006 Shaft Bushing
33 791-145896 Spool Shaft
34 791-153599 Outer Spool (includes 35)
35 791-612026 Retainer
36 791-610317 Spring
37 791-610318 Inner Reel
38 791-153066 Bump Head Knob Assembly
39 791-145873 4-Tooth Blade
40 791-612023 Retaining Washer
41 791-145895 Nut
* 791-180015 Blade Retaining Kit (includes 40 & 41)
* 791-613226 Locking Rod Tool
* 791-682075 Shoulder Harness
Optional Accessories
* 610375 Replacement Line, 0.080 Diameter
* 153577 Reel and Line Assembly
* 153700 Bump Head Assembly (includes 33-38)
* Items Not Shown
26
25
23
22
29
30
24
33
38
41
32
39
27
28
31
36
34
35
37
1
1
5
6
13
14
15
16
12
11
7
10
18
19
20
21
4 3
2
8
9
17
40
