Page 9
9
WARNING:
Do not connect to power supply until assembly is com-
plete. Failure to comply could result in accidental starting
and possible serious personal injury.

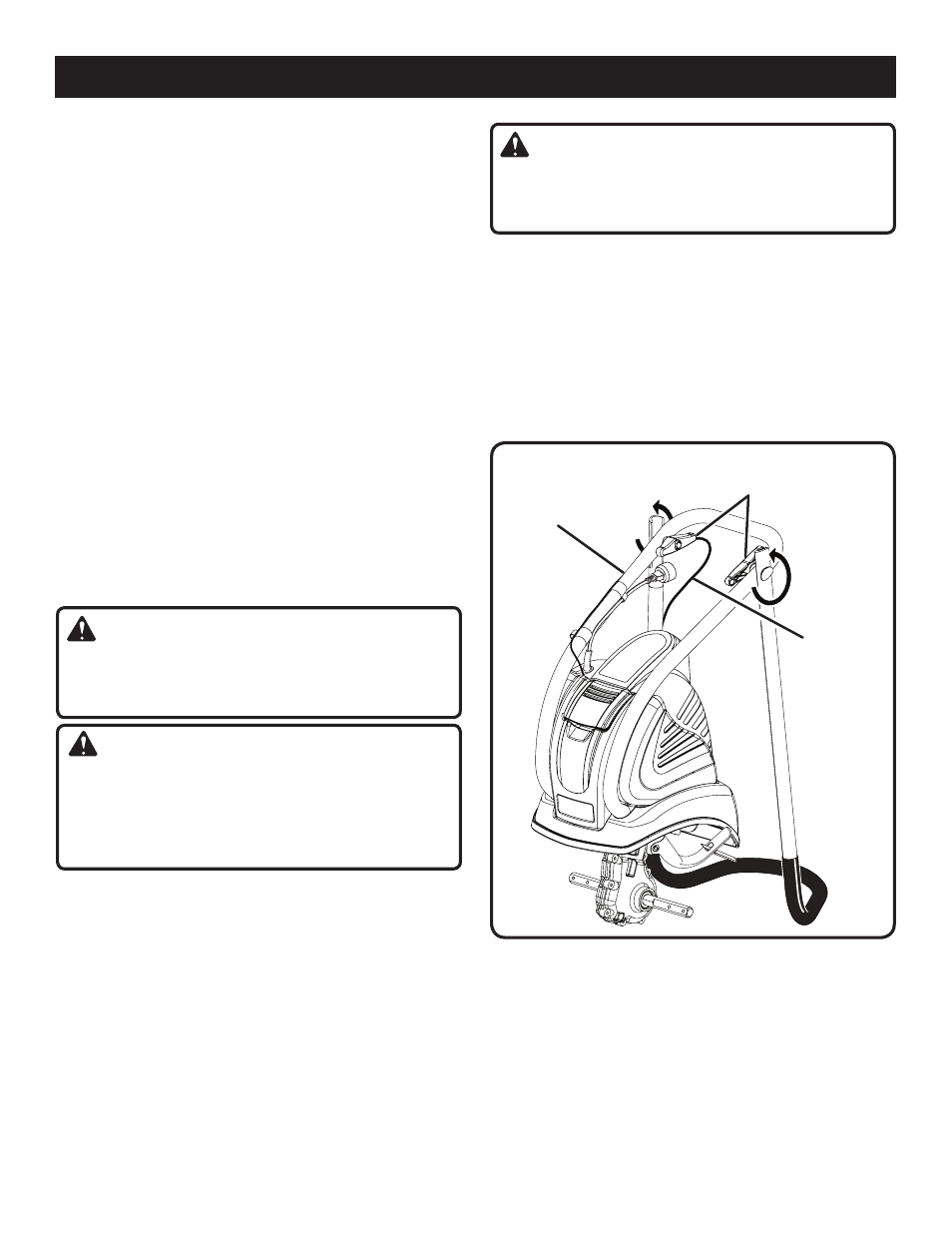

POSITIONING THE HANDLEBAR
See Figure 2.
Loosen the two handlebar knobs.
Unfold the handlebar into operating position.
NOTE: Do not use force. If there is binding, continue
to loosen the knobs. Do not allow the switch cable to
become pinched when raising the handlebar.
Retighten the handlebar knobs.
UNPACKING
This product requires assembly.
Carefully remove the tool and any accessories from the
box. Make sure that all items listed in the packing list are
included.
Inspect the tool carefully to make sure no breakage or
damage occurred during shipping.
Do not discard the packing material until you have care-
fully inspected and satisfactorily operated the tool.
If any parts are damaged or missing, please call
1-800-860-4050 for assistance.
PACKING LIST
Cultivator
Drag Bar
Pull Pin
Hitch Pins (2)
Felt Washers (2)
Inner Tines (2)
Outer Tines (2)
Wheel Assembly (Accessory)
Operator’s Manual
WARNING:
If any parts are damaged or missing do not operate this
tool until the parts are replaced. Failure to heed this warn-
ing could result in serious personal injury.
WARNING:
Do not attempt to modify this tool or create accesso-
ries not recommended for use with this tool. Any such
alteration or modification is misuse and could result in a
hazardous condition leading to possible serious personal
injury.
ASSEMBLY
Fig. 2
HANDLEBAR
HANDLEBAR
KNOBS
SWITCH
CABLE
