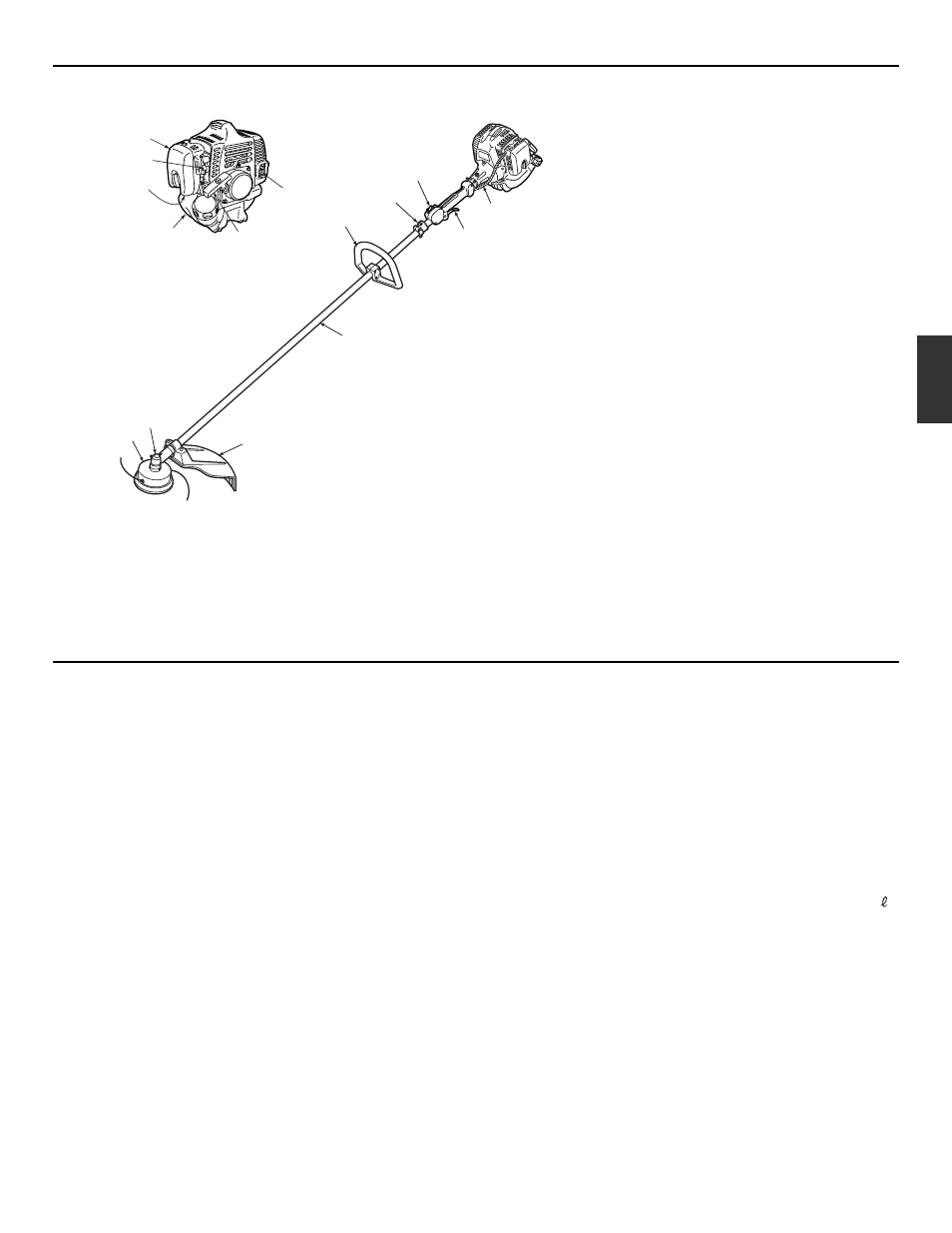

1. Situación de las piezas

1. Mango
2. Punto de suspensión
3. Interruptor de parada
4. Cable del acelerador
5. Gatillo de regulador
6. Tubo de eje
7. Protector del aditamento cortador
8. Cabezal de hilo cortador
9. Caja de engranajes

10. Parachispas
11. Arrancador
12. Tanque de combustible
13. Cebador
14. Palanca del estrangulador
15. Cubierta del filtro de aire

2. Especificaciohes

BCZ2450S/BCZ2450T
Tamaño global (Long x Anch x Alt) ·························································································· 1810 x 228 x 292 mm
Peso en seco ························································································ 5,02 kg.((5,40 kg) contener Cabezal de hilo)
Motor

Tipo ························································································· Refrigerado por aire / gasolina de 2 tiempos
Modelo ·············································································································································· GZ23N
Desplazamiento······························································································································· 23,6 cm

3

Potencia máxima ························································································ 1,15 Hp (0,858kW) a 8000 rpm
Velocidad de marcha en vacío ···························································································· 3000 ± 200 rpm
Combustible ······························································································· Mezcla (Gasolina 50: Aceite 1)

(al utilizar el aceite auténtico de RedMax/ZENOAH)

Carburador ··············································································································· Walbro tipo Diafragma
Bujía ······································································································································· NGK CMR7H

Capacidad del depósito de combustible··········································································································· 0,63
Transmisión ····················································································· Embrague centrífugo, eje de transmisión rígido
Relación de reducción

BCZ2450S············································································································································ 1.462
BCZ2450T ················································································································································ 2,1

Dirección de rotación de cabeza cortador ············ Sentido contrario a las agujas del reloj (vista desde el operador)
Período de duración ···········································································································································300 h
Accesorios estándar

Cabezal de 2 hilos de 4 pulg ··············································································································1 pieza
Gafas protectoras ·······························································································································1 pieza
Caja de herramientas ························································································································ 1 pieza

Especificaciones sujetas a cambios sin previo aviso.
