REFRIGERATION FUNDAMENTALS
Temperature Settings
•
Assembly or disassembly and servicing
to be accomplished by licensed
electrical / refrigeration contractor.
•
The case temperature is set at the factory,
as determined by the case size.
Refrigeration: Access, Connections &
Servicing
•
Assembly or disassembly and servicing
to be accomplished by licensed
refrigeration contractor.
•
Service connections are located on the
compressor / condenser assembly.
•
Refrigerant lines are flexible to facilitate
rear access maintenance to condenser.
•
Plastic glides are mounted to the unit base
to assist in sliding the condenser out for
access.
•
Remove the rear grill by removing the six
screws located on both sides of the grill.
•
Remove structural stiffener by removing the
four screws located on the bottom edge of
the base.
•
Withdraw the unit using pull flanges on
condenser frame.

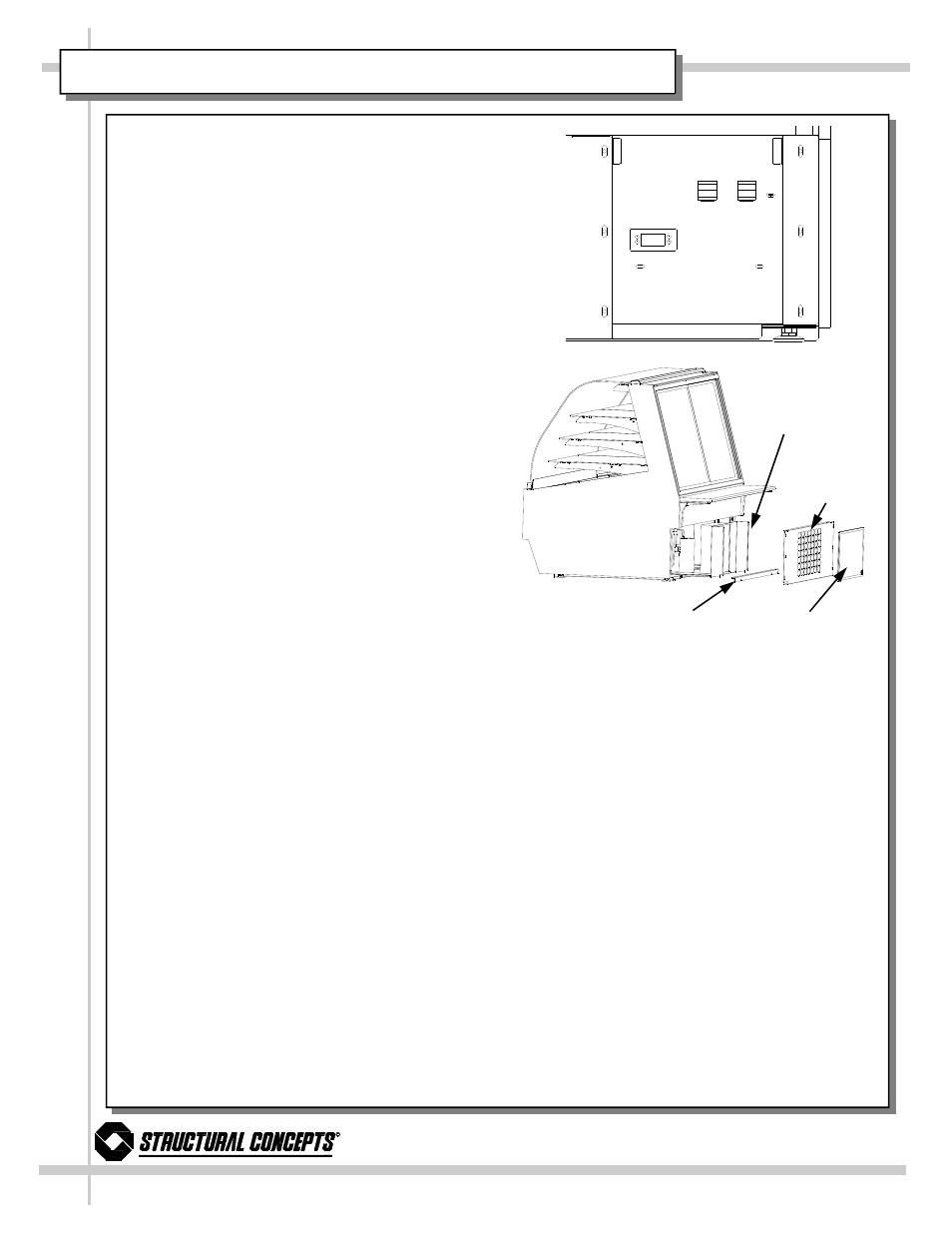

Rear Grill
Stiffener
Condenser Frame
Filter
