13. Parts List : EBZ5100Q

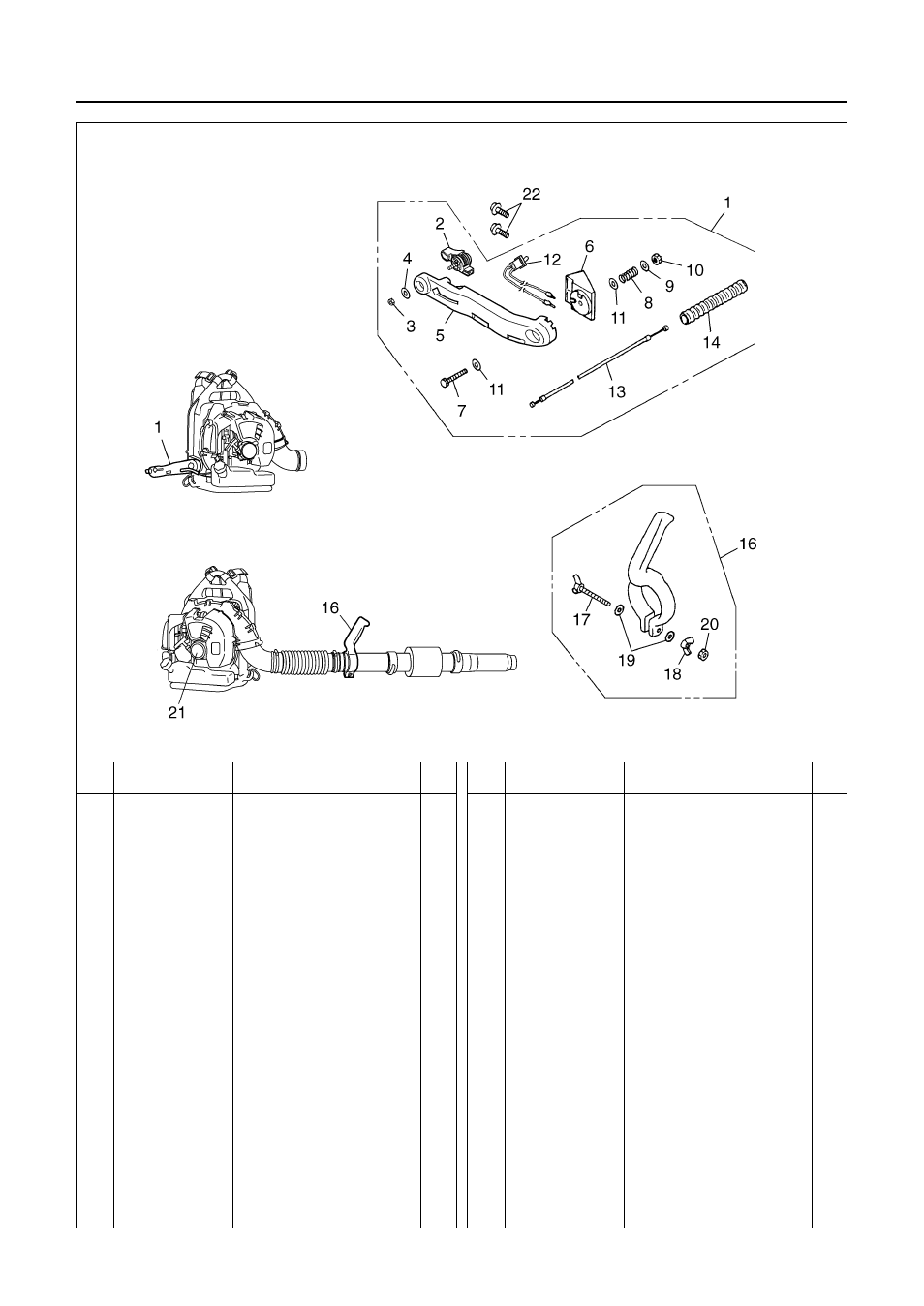

Fig.4 LEVER SET
(S/N 70900101 and up)
Key#
Part Number
Description
Q'ty
1
T4017-25000
LEVER SET
1
2
T4012-25100
• LEVER
1
3
3310-53331
• NUT
1
4
01642-20508
• WASHER
1
5
T4012-25211
• ARM
1
6
T4012-25311
• BRACKET
1
7
3495-25410
• BOLT
1
8
3495-25420
• SPRING
1
9
3495-25440
• WASHER
1
10
848-864-6000
• NUT
1
11
3495-25450
• WASHER
2
12
T4017-25510
• SWITCH
1
13
T4012-83110
• CABLE COMP.
1
14
T4012-25610
• TUBE
1
16
2750-51501
GRIP ASSY
1
17
848-846-7000
• WING BOLT
1
18
3495-51430
• WING NUT
1
Key#
Part Number
Description
Q'ty
19
3238-15230
• WASHER
2
20
2750-51540
• NUT
1
21
848-L3N-90C0
LABEL, RECOIL
1
22
T4960-51631
SCREW TORX
2
