PCA4933
Converter for Connecting Emulator Probe to RFS Type Emulator MCU
(for PC4701, compact emulator, and PC4600 systems)
Function
The PCA4933 is used to connect the emulation pod
M38000TL2-FPD for the PC4701 system or compact emulator
system M38000T2-CPE or emulation pod M38000TL-POD for
the PC4600 system to the RFS type emulator MCU without
screw lock.
Also, the PCA4933 is a converter for connecting the emulation
pod M38000TL-POD for the PC4600 system to the RFS type
emulator MCU (M3XXXXRFS or M3XXXXRLFS).
Application
Use the PCA4933 to connect the probe of emulation pod or
other boards to the PCA4933's connector. Insert it into an RFS
type emulator MCU.

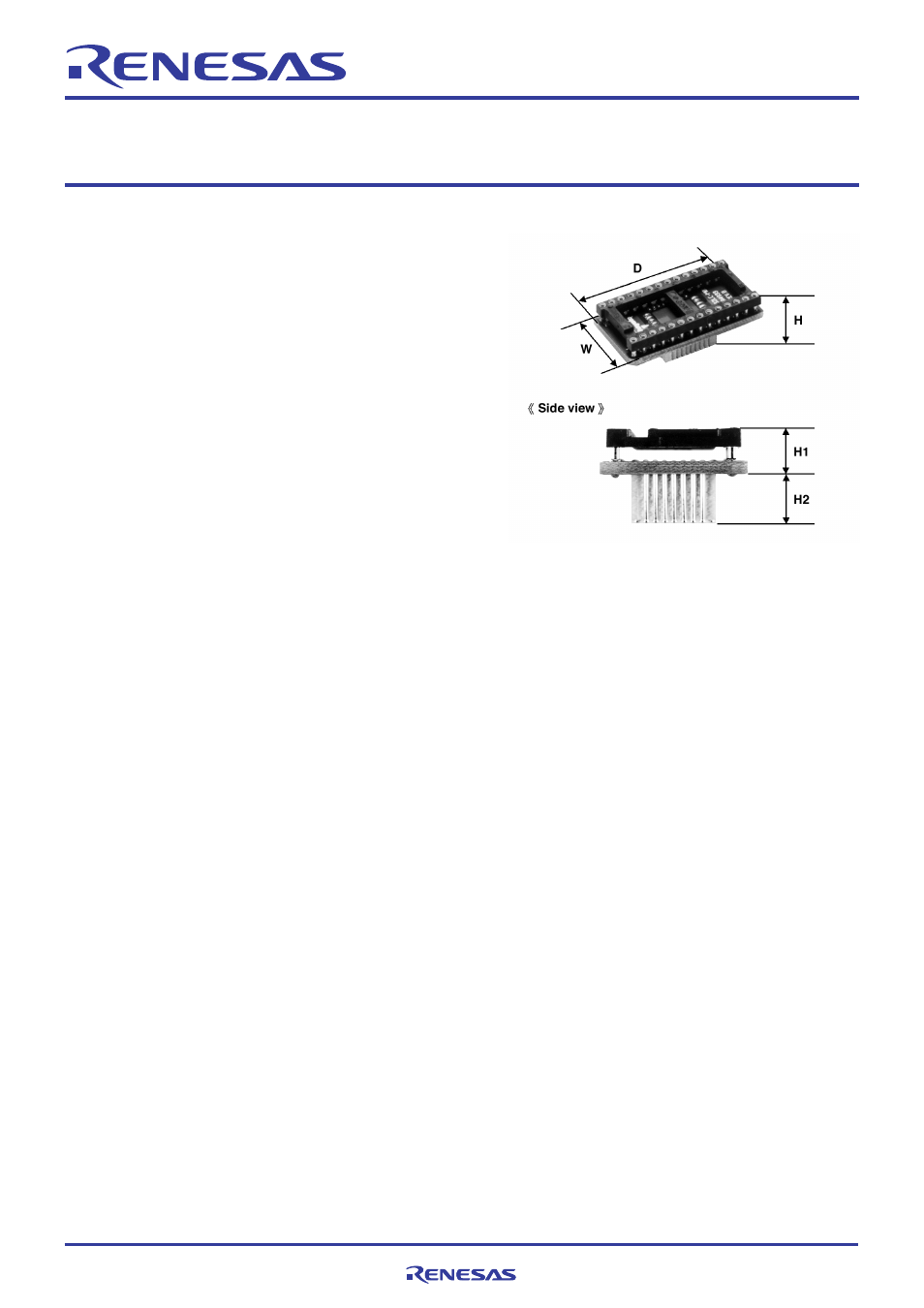

Dimensions
36.5(D)×19.0(W)×12.5(H)mm
(H1)=6.0mm (H2)=6.5mm
* PC4701 is a generic name representing the PC4701U, PC4701M,
PC4701HS, PC4701L, PC4700H and PC4700L. Production of the
PC4701M, PC4701HS, PC4701L, PC4700H and PC4700L has been
discontinued.
[Ordering Information] See Appendix H "Ordering Information".
