Revox Integrated Speaker Systems - Manual (Page 7)

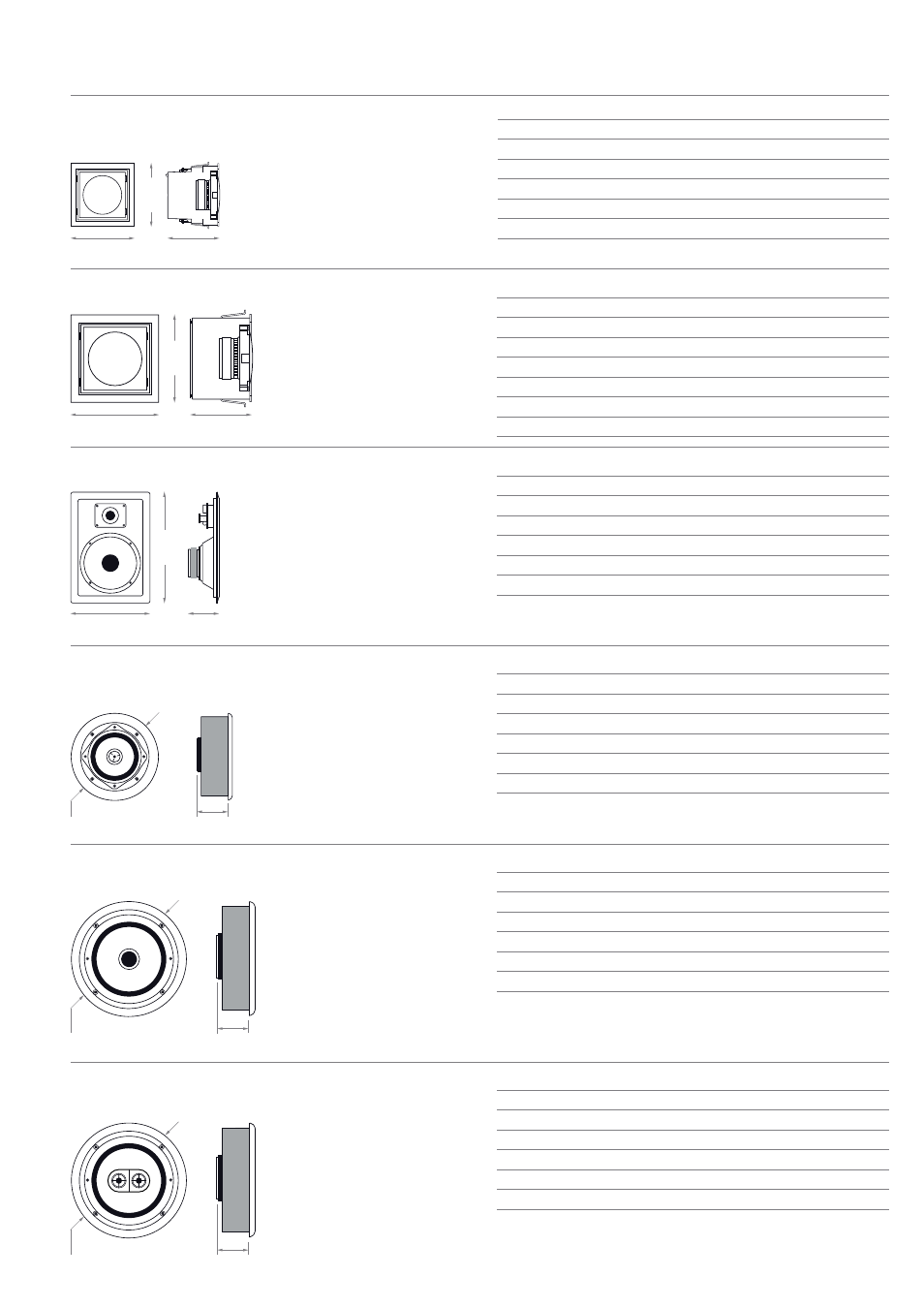

75 mm Ø 202 mm
95 mm Ø 238 mm
23
1 m
m
231 mm 150 mm
218 mm 76 mm
305
m
m
95 mm Ø 238 mm
12
7 m
m
127 mm 100 mm
7
Re:sound I
Power Rating 65 Watt
Music power handling capacity 90 Watt
Impedance 6 Ohm
Frequency response 38 Hz – 23 kHz
Effi ciency (1W/1m) 89 dB
Woofer/Midrange 167 mm
Tweeter 25 mm dome type
Power Rating 50 Watt
Music power handling capacity 70 Watt
Impedance 6 Ohm
Frequency response 50 Hz – 20 kHz* / 60 Hz – 20 kHz**
Effi ciency (1W/1m) 88 dB
Woofer/Midrange 130 mm
Tweeter 12 mm dome type
Power Rating 80 Watt
Music power handling capacity 110 Watt
Impedance 6 Ohm
Frequency response 32 Hz – 20 kHz* / 48Hz – 20 kHz**
Effi ciency (1W/1m) 90 dB
Woofer/Midrange 205 mm
Tweeter 25 mm dome type
Power Rating 2 x 40 Watt
Music power handling capacity 2 x 60 Watt
Impedance 2 x 6 Ohm
Frequency response 32 Hz – 20 kHz* / 48Hz – 20 kHz**
Effi ciency (1W/1m) 95 dB
Woofer/Midrange 205 mm
Tweeter 2 x 25 mm dome type
2 way inwall speaker system
Outer dimensions 218 mm x 305 mm
Installation depth 76 mm
Cutout dimensions 272 mm x 187 mm
Weight 1,7 kg
2 way inwall speaker system
Outer dimensions 202 mm
Cutout diameter 165 mm
Installation depth 75 mm
Weight 1,2 kg
2 way inwall speaker system,
directable tweeter
Outer diameter 273 mm
Cutout diameter 238 mm
Installation depth 95 mm
Weight 2,0 kg
Double 2 way inwall speaker
system, directable tweeter
Outer diameter 273 mm
Cutout diameter 238 mm
Installation depth 95 mm
Weight 2,1 kg
* within ceiling / ** with Revox cabinet
* within ceiling / ** with Revox cabinet
* within ceiling / ** with Revox cabinet
Power Rating 60 Watt
Music power handling capacity 80 Watt
Impedance 8 Ohm
Frequency response 48 Hz – 20 kHz
Effi ciency (1W/1m) 87 dB
Woofer/Midrange 116 mm
Tweeter 10 mm dome type
Temperature range from -10° to +70° C
2 way inwall speaker system
Outer dimensions 231 x 231 mm
Cutout dimensions 218 x 218 mm
Installation depth 150 mm
Weight 3,8 kg
Re:sound I Z60 loudspeaker
Re:sound I inwall 65 Loudspeaker
Re:sound I inceiling 50 loudspeaker
Re:sound I inceiling 80 loudspeaker
Re:sound I inceiling 80 stereo
loudspeaker
Power Rating 40 Watt
Music power handling capacity 60 Watt
Impedance 4 Ohm
Frequency response 105 Hz – 18 kHz
Effi ciency (1W/1m) 87 dB
Fullrange system 80 mm
Temperature range from -10° to +70° C
Fullrange Speaker
Outer dimensions 127 x 127 mm
Cutout dimensions 110 x 110 mm
Installation depth 100 mm
Weight 1,1 kg
Re:sound I Z40 loudspeaker
