PART IDENTIFICATION CHART

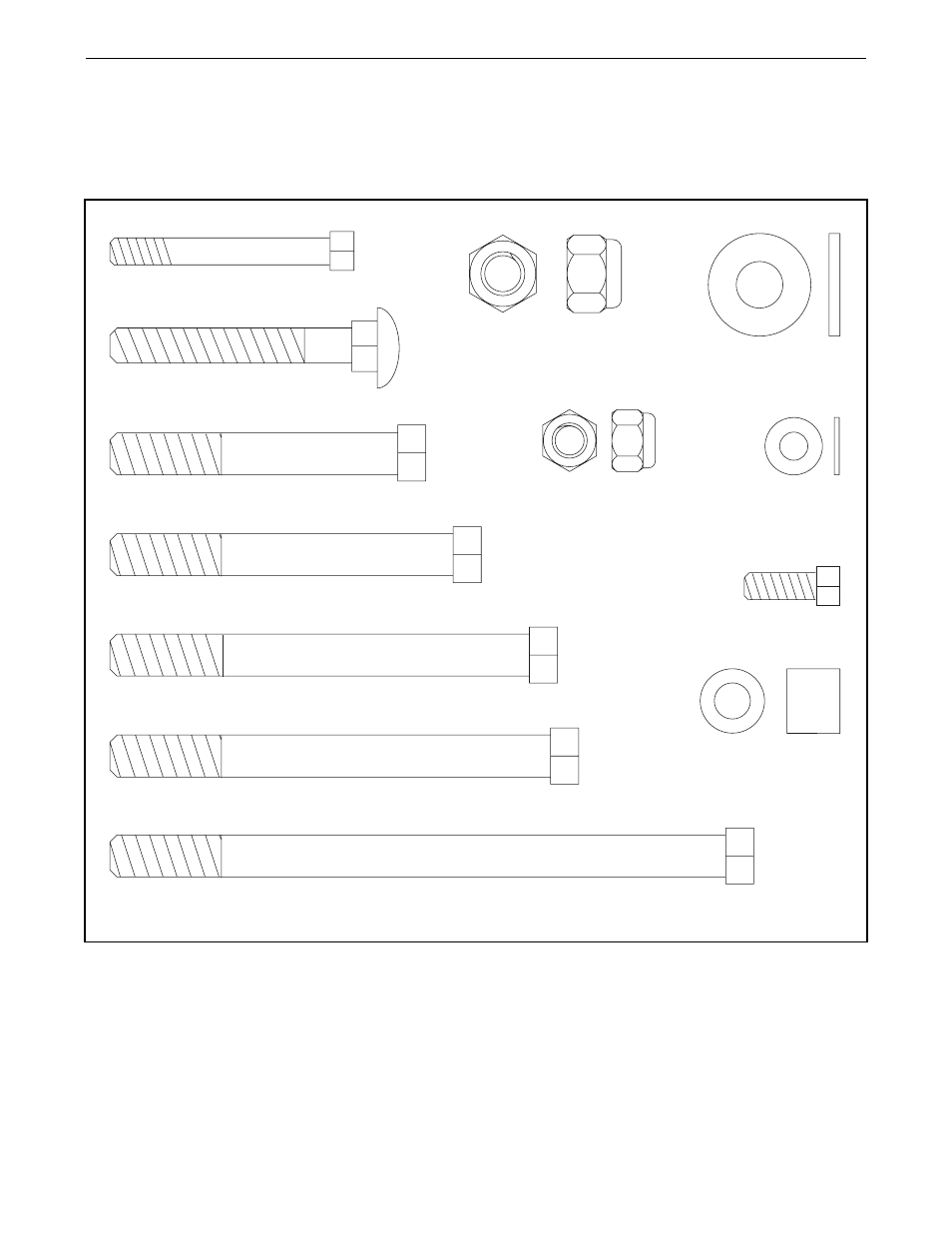

Refer to the drawings below to identify small parts used in assembly. The number in parentheses by each draw-
ing is the key number of the part, from the PART LIST on page 14 of this manual.

Note: Some small parts may

have been pre-attached. If a part is not in the parts bag, check to see if it has been pre-attached.

M10 Nylon Locknut (35)

12.5mm Spacer (33)

M8 Nylon Locknut (42)

M6 Washer (19)

M10 Washer (27)

M10 x 65mm Bolt (36)

M10 x 78mm Bolt (28)

M10 x 100mm Bolt (38)

M10 x 140mm Bolt (37)

M6 x 16mm Bolt (31)

M6 x 50mm Bolt (39)

M8 x 55mm Carriage Bolt (40)

M10 x 95mm Bolt (34)
