Contents
Tools needed for installation..................................... 2
IBeam Specifications ................................................. 2
Recommended Amplifier Specifications ................. 2
Introduction and Precautions ................................... 3
Vehicle Installation .................................................... 4
Home Theater Installation .....................................5-6
Troubleshooting ......................................................... 7
Warranty .................................................................... 7
Tools needed for installation.
Drill
Drill bit for pilot holes. 1/8” (3mm)
#2 Phillips head bit with extension OR #2 Phillips head screwdriver.
Wire cutters
Wire strippers (16/14 or 12AWG)
You will also need an adequate length of 16/14 or 12 AWG (American Wire
Gauge) speaker wire for connection to your IBeam tactile transducer.
IBeam Tactile Transducer Specifications
Model Number: IB-200
Size (H x W x D): 2.0” x 4.25” x 6.875”
Weight: 2.5 lbs (1.13 Kg)
Force / Watt: 2.5 lbs/Watt (11.1 Newtons/Watt)
Continuous Power Handling:
100 Watts
Peek Power Handling: 250 Watts
Overload Protection: PPTC self reset fuse
Impedance: 4-ohms
Frequency Response: 20Hz – 800Hz
Recommended Amplifier Specifications
Minimum: Amplifiers producing 100 Watts @ 4-ohms is the minimum recommendation.
Optimum: Amplifiers producing 150 – 250 Watts @ 4-ohms offer the best experience.

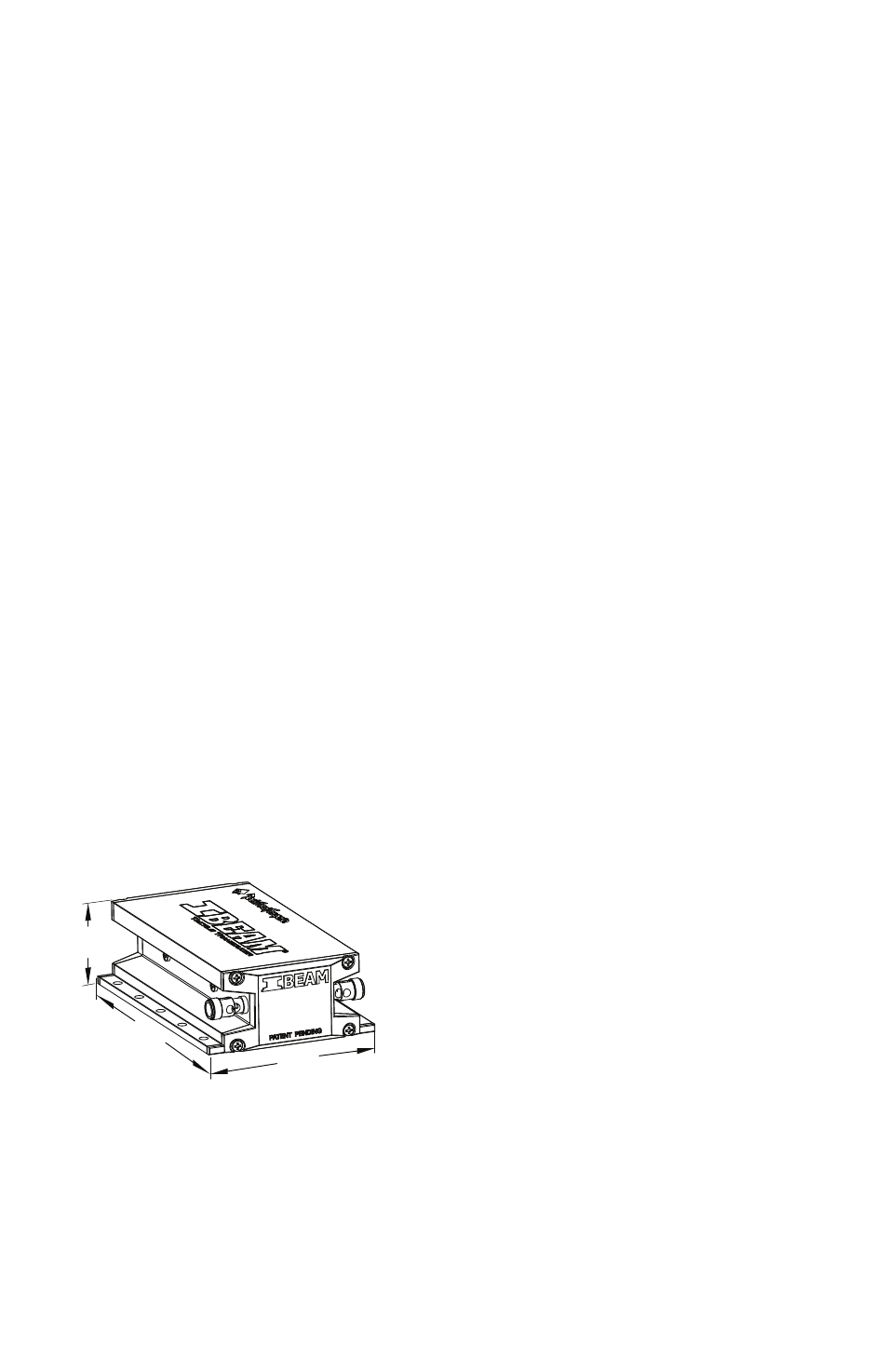

4.25"
(10.79cm)
6.875"
(17.46cm)
2.00"
(5.08cm)
