EN
Getting Started
2
Content of Box
• one main unit (with 2 main speakers);
• one Music Navigator remote control;
• one AM loop antennas;
• one mp3 Player;
• one set of earphones;
• one USB cable;
• one Wireless Musiclink transceiver;
• one user manual;
• one PC software and driver installation CD-ROM;
• one safety leaflet;
• Owner registration Card.

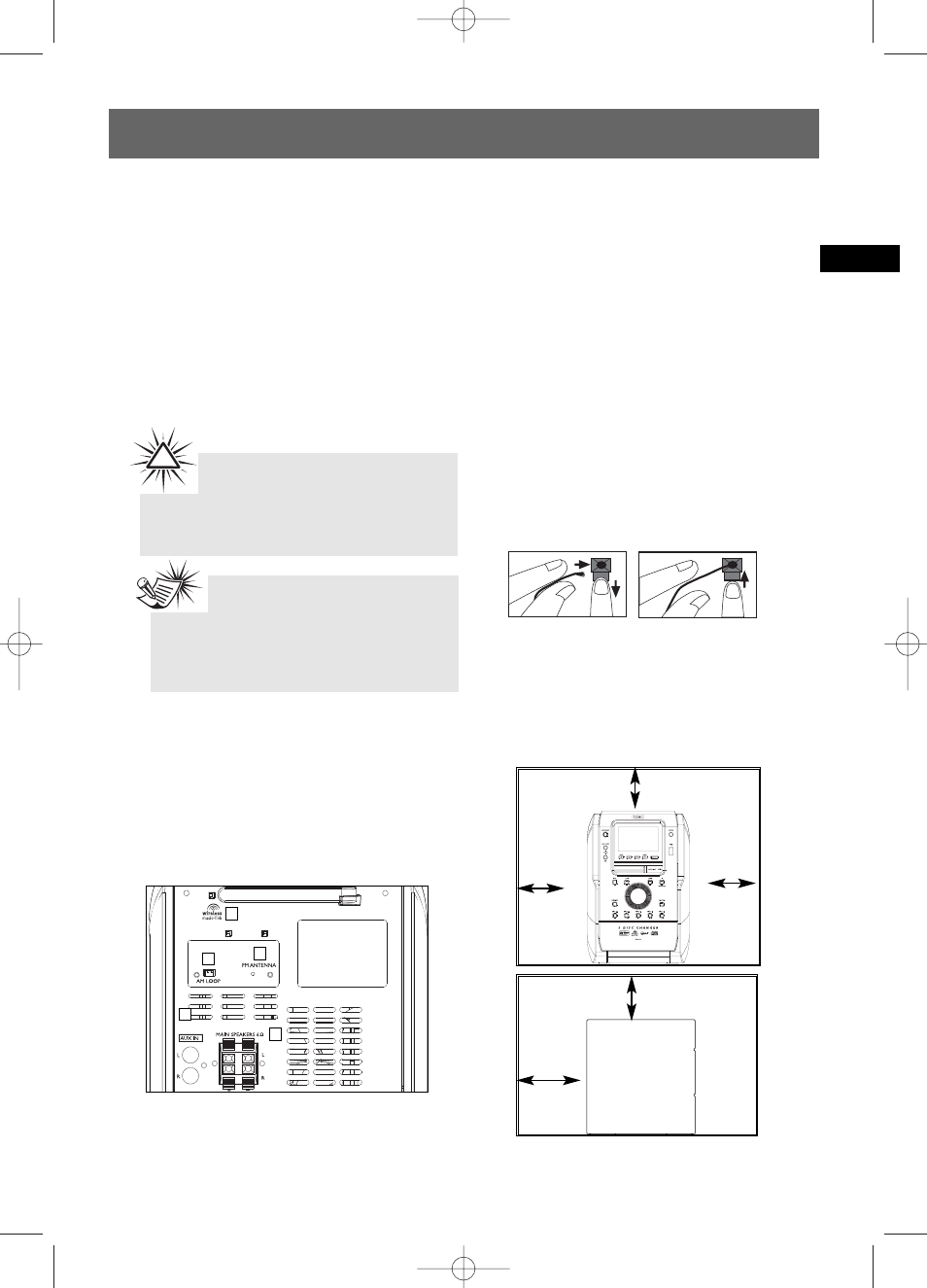

Connections of Antennas and
Speakers
1. Wireless Music-link antenna.
2. AM Loop antenna Jacks.
3. FM Pigtail Antenna.
4. AUX IN.
5. Main Speaker Jacks.
Using the FM and AM Antennas
Before you use your audio system, you’ll want to
make sure both the FM and AM antennas are
positioned properly. Uncoil the FM antenna at
the back of the unit, making sure it is fully
extended (you may even want to tape it to the
wall behind the unit if possible. The higher the
better.) You’ll also need to connect the AM
antenna loop to the back of the unit if you listen
to AM stations. Rotate the AM loop antenna for
better reception.
Connecting the Speakers
Each speaker has a black (negative) and a red
(positive) jack. When connecting the speakers,
match the red wires to the red jacks and the
black wires to the black jacks.
Installation
To ensure sufficient ventilation, keep the
spacings shown below free from other surfaces:
Note:
Make sure the tracks are encoded in mp3
or Windows Media formats and supported
bitrates. Bitrates supported by the player:
mp3 – 32 to 320kbps
wma – 48 to 160kbps
Warning:
Use of this product is for your personal
use only. Unauthorized recording or
duplication of copyrighted material may infringe
upon the rights of third parties and may be
contrary to copyright laws.
!
Release tab to lock wire in
the terminal.
NOTE: Make sure the insulation is completely removed from the
ends of the speaker wires at all connection points.
Speaker Wire Connection
Push Speaker terminal tab
down to insert wire.
4 inches
4 inches
Front View
4 inches
4 inches
2
inches
Side View
1
2
3
4
5
