1. INDEX TO PARTS AND CONTROLS

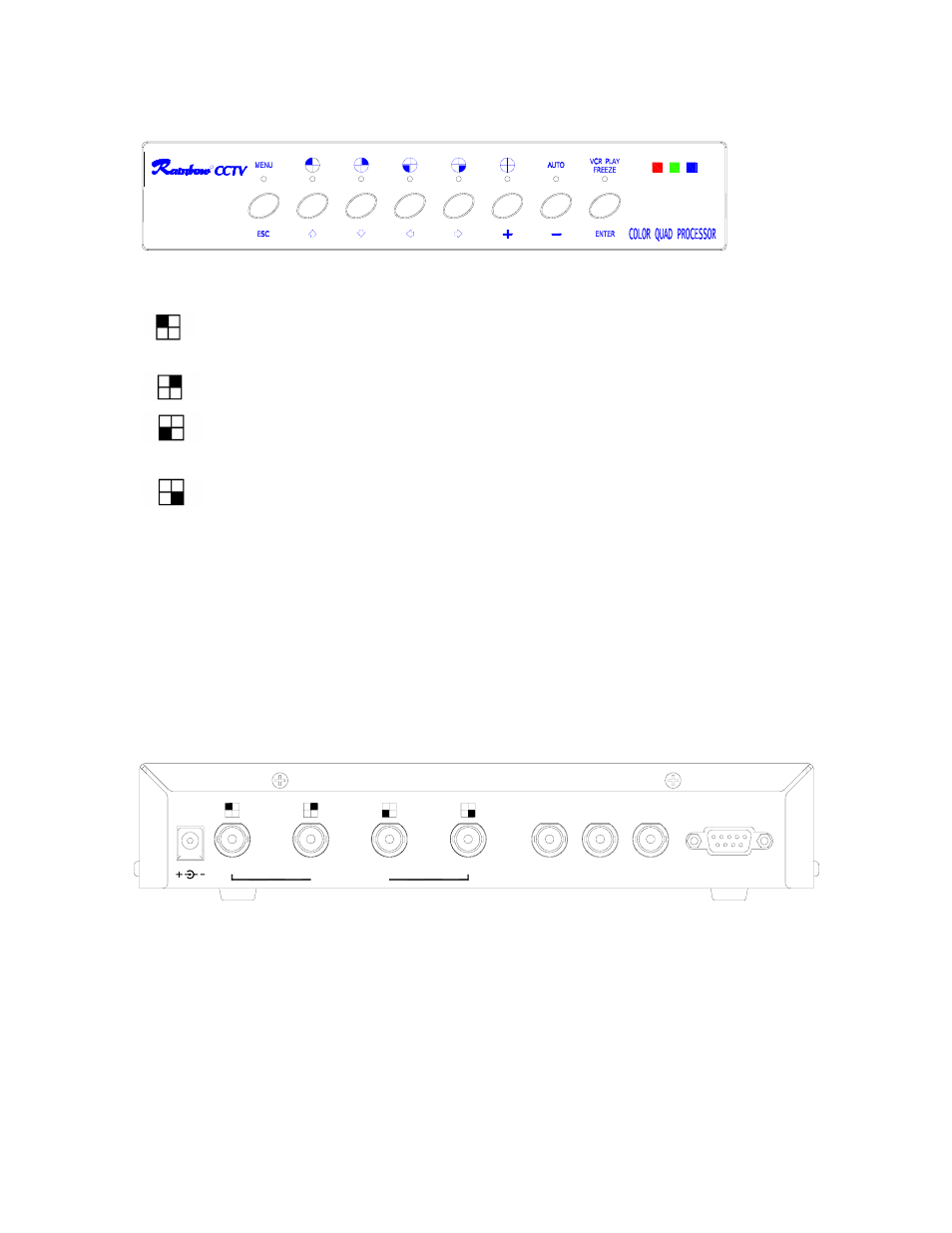

1.1 FRONT VIEW
R
1. MENU (exit) - It allows access to the system setup menus and exit the current status.
2. ( ▲ ) - Displays the CH1 camera in the full screen format. It is also used to select the function
under operating menu.
3. ( ▼ ) - Displays the CH2 camera in the full screen format. It is also used to select the function
under operating menu.
4. ( ◄ ) - Displays the CH3 camera in the full screen format. It is also used to move the cursor to
necessary location under operating menu.
5. ( ► ) - Displays the CH4 camera in the full screen format. It is also used to move the cursor to
necessary location under operating menu.
6. QUAD ( + ) – Display 4 cameras in quad screen format. It is also used to increase value and select
function under operating menu.
7. AUTO ( - ) – Starts automatic switching of cameras. This button is also used to decrease value and
select function under operating menu.
8. VCR PLAY/FREEZE (enter) - Gets into freeze or VCR play back mode. This button is also used to
confirm/execute the current status.
1.2 REAR VIEW
1
VIDEO INPUT
2 3
500 mA
DC 12V
OUT
QUAD VCR 4
IN OUT
MONITOR ALARM
1. DC12V – This 2.1mm pin jack accepts the center positive source of 12VDC at 500mA.
2. VIDEO INPUT – These BNC connectors accept the composite video output of color cameras.
3. VCR IN – Connect this port to VCR output port.
4. MONITOR OUT – This BNC connector provides a composite video signal to video input of monitor or TV.
5. QUAD OUT – This BNC connector provides a composite video signal to record input of a standard or
time-lapse video recorder.
6. ALARM – Connect to external alarm system.
