932VS Portable Band Saw
Ridge Tool Company 6

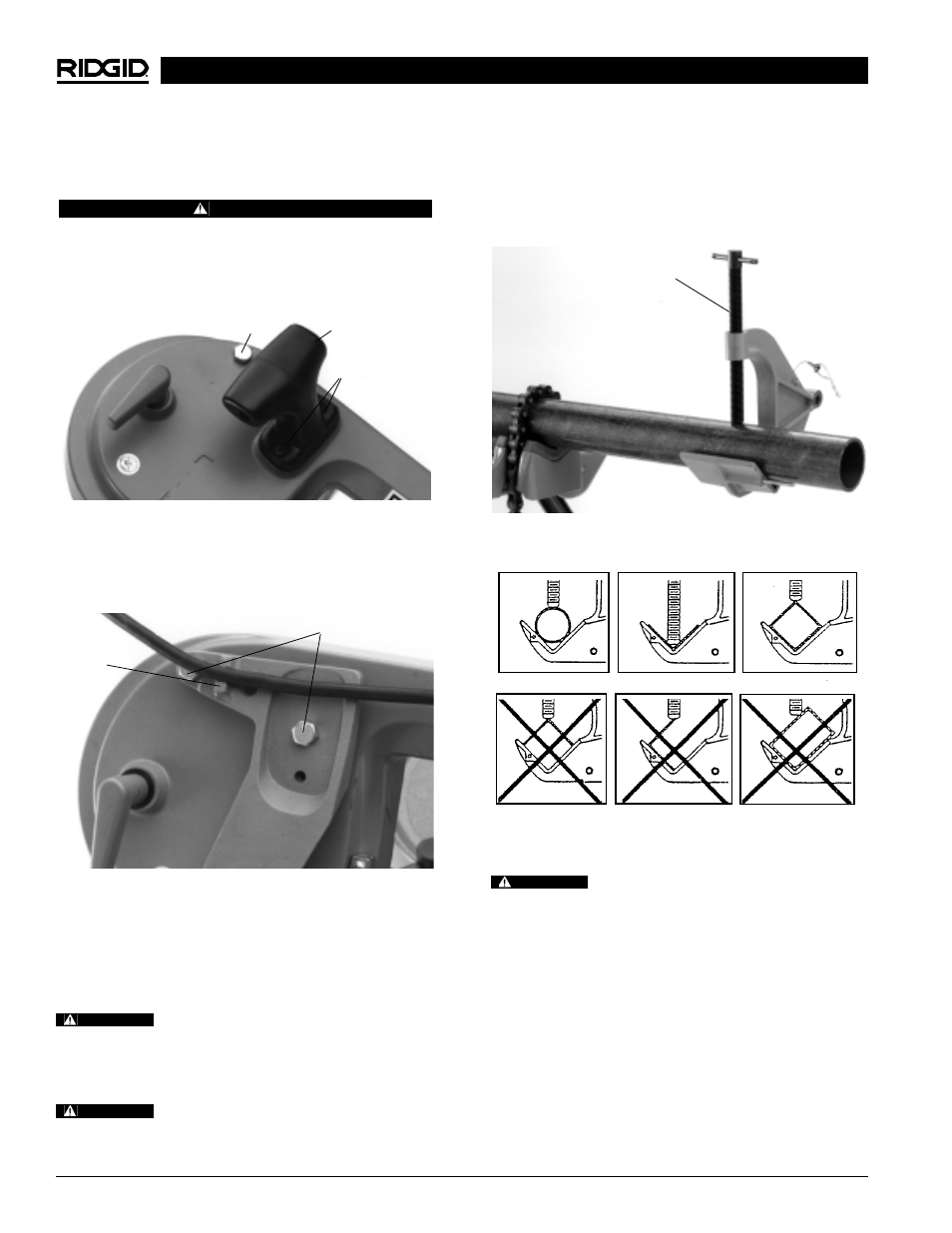

932VS Band Saw with 32V Vise
To Assemble 32V Vise
WARNING
Saw must be disconnected from power source
before assembling the 32V Vise.
1. Remove two screws (A) and remove knob (C) and
screw (B) (Figure 3).
2. Position vise mounting bracket to band saw (Figure 4)
and secure with two hex head bolts furnished with
32V Vise. (Torque: 40 to 50 in. lbs.)
3. Reassemble knob (C), (Figure 3), using two longer
mounting screws furnished with 32V Vise.
4. Position power cord to slot as shown in Figure 4.
To Use 32V Vise
Make sure band saw is disconnected from
power source before securing to the workpiece.
1. Secure the workpiece to prevent movement during
the cutting operation.
The workpiece must be secured to sup-
port the weight of the work vise and the band saw.
2. Position the work vise on the workpiece and secure
by tightening the clamp screw firmly (see Figure 5).
The clamp must support the band saw.
NOTE! The vise should be positioned so that the clamp
screw is vertical and above the workpiece.
Figure 6
3. Attach band saw to work vise.
Keep hands away from saw blade when
attaching and removing band saw.
Figure 3
A
B C
Figure 4
Bolts
Cord
Slot
Figure 5
Clamp Screw
RIGHT
WRONG
WARNING
WARNING
WARNING
