TIMING BELT REPLACEMENT

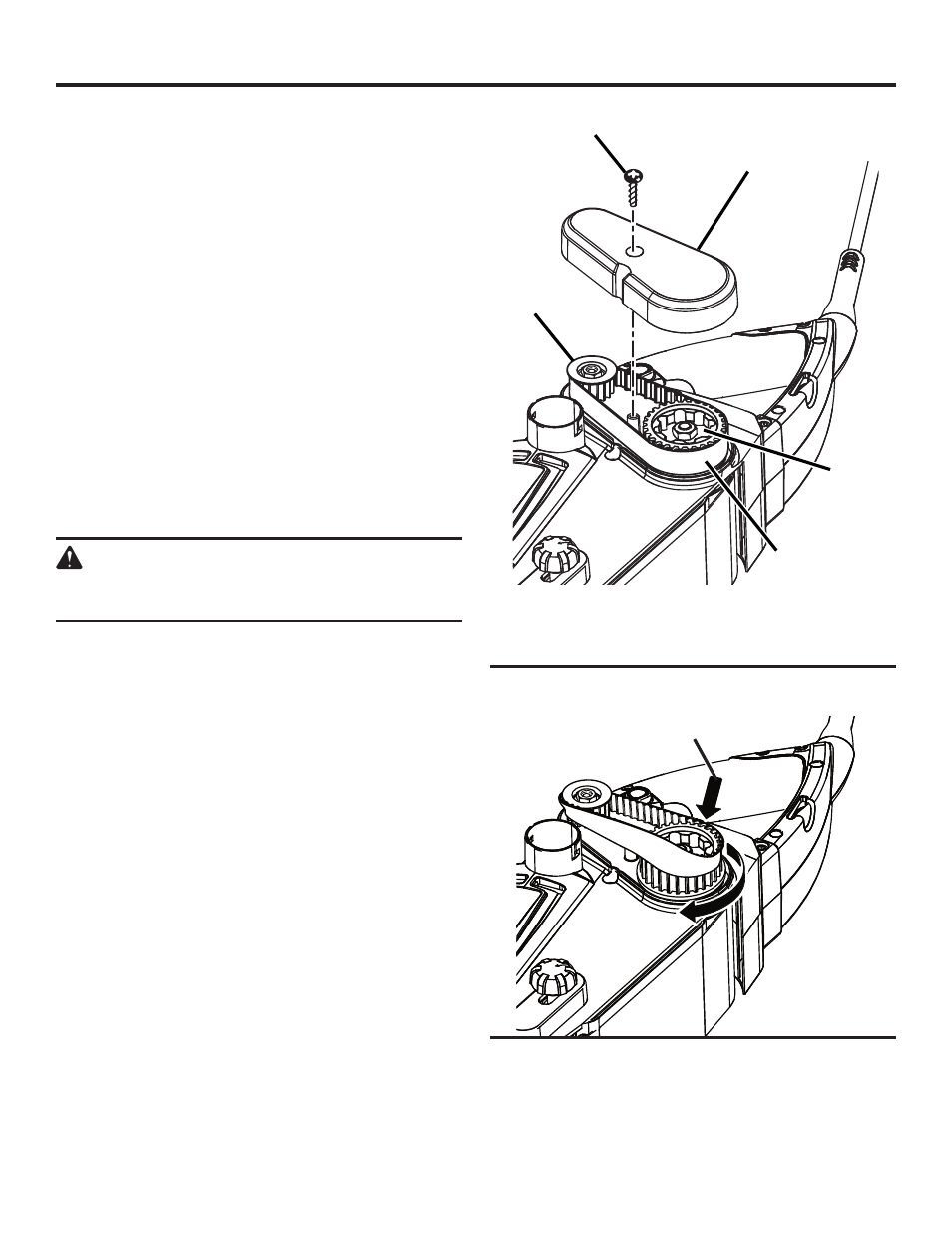

See Figures 13 - 14.
n

Unplug the sander.

n

Remove dust bag.

n

Lay belt sander on side as shown.

n

Remove sanding belt from sander. Follow instructions on
page 12 to remove sanding belt.

NOTE: Removing sanding belt will simplify the process
of installing a new timing belt.

n

Remove belt cover screw and belt cover.

n

Force old timing belt from large pulley with a screwdriver
and remove it from small pulley. If it is worn out, simply
cut the old timing belt and remove.

n

Install new timing belt over small pulley first.

n

Holding the timing belt as shown in Figure 14, press belt
onto the large pulley turning it as you press the belt on.

n

Reassemble belt cover and screw.

n

Tighten screw securely.

n

Install the sanding belt.

WARNING:

Never attempt to operate the belt sander without
belt cover in place.

APPLY PRESSURE HERE AND

TURN LARGE PULLEY

SANDER SHOWN WITH DUST BAG AND

SANDING BELT REMOVED

LARGE

PULLEY

SMALL

PULLEY

TIMING

BELT

SCREW

BELT

COVER

MAINTENANCE

Fig. 13

Fig. 14
