Heating Unit
Combat
®
by Roberts-Gordon AT-Series
COMBAT
®
by Roberts-Gordon AT-Series air turnover units can minimize heat stratification problems by drawing in
cooler air from the floor, warming it and re-circulating it throughout the area.
COMBAT
®
by Roberts-Gordon AT-Series air turnover units are indirect-fired units utilizing heavy-duty, belt driven propeller
blade fans to move vast quantities of air quietly and efficiently. These units help to produce a comfortable, evenly heated
space.
NOTE: All models are available in an upright indoor configuration only.
Configurations
Model
AT-136
AT-148
AT-154
AT-236
AT-242
AT-248
AT-254
AT-260
AT-272
CFM
4,500 -
12,000
10,000 -
16,000
14,000 -
30,000
9,000 -
24,000
21,000 -
31,000
22,000 -
45,000
40,000 -
65,000
54,000 -
74,000
62,000 -
100,000
Output
[MBH]*
240 -
750
240 -
750
240 -
1,250
240 -
1,000
240 -
1,250
240 -
1,500
560 -
2,500
600 -
4,000
600 -
4,500
*1 MBH = 1,000 Btu/h

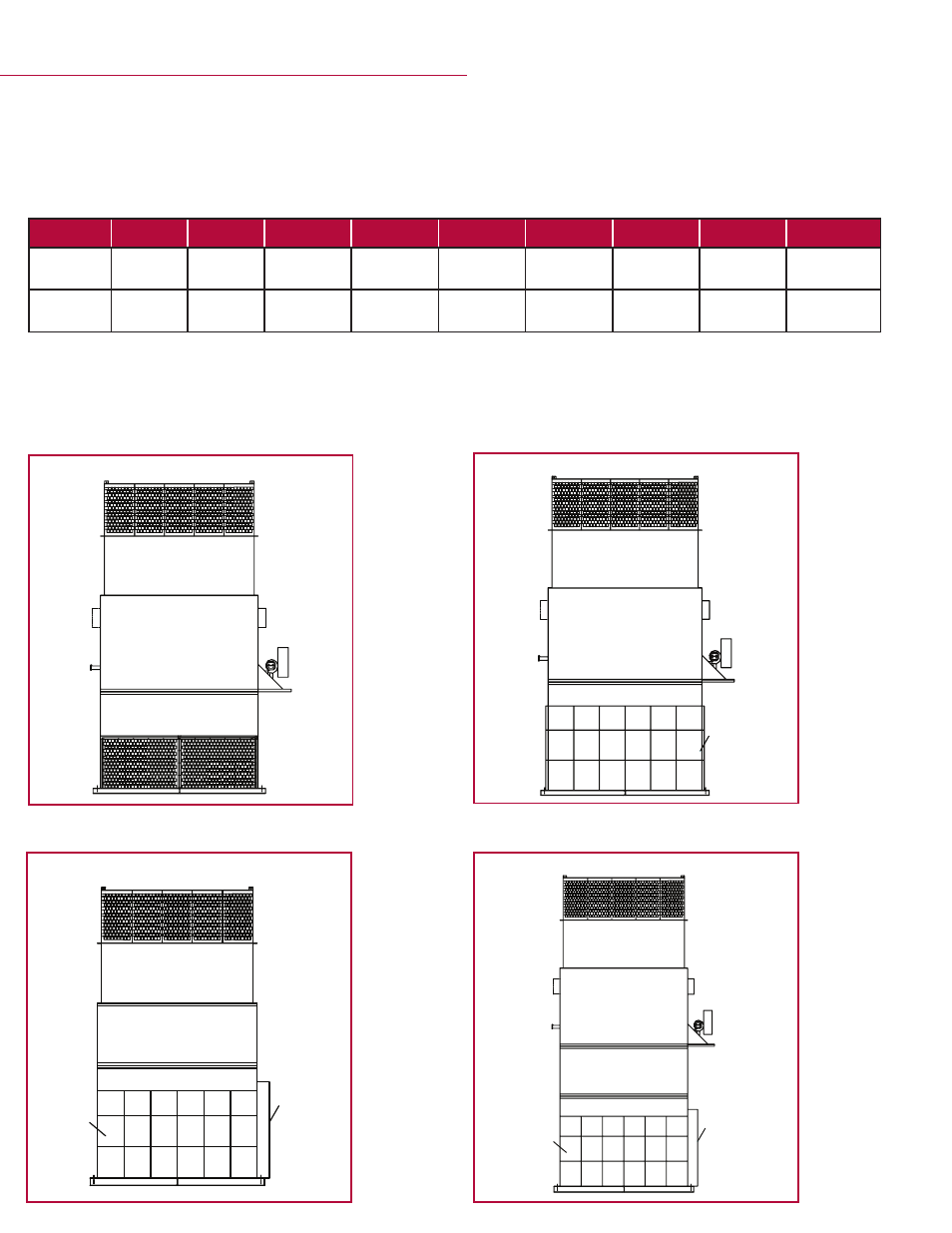

Cooling Unit with Filtration
Heating/Cooling Unit with Filtration
PROPELLER FAN/INLET SECTION
HEAT EXCHANGER SECTION
DISCHARGE PLENUM
OPTIONAL EXTENSIONS
Heating Unit with Filtration
PROPELLER FAN/FILTER/INLET SECTION
HEAT EXCHANGER SECTION
DISCHARGE PLENUM
OPTIONAL EXTENSIONS
FILTERS
PROPELLER FAN/FILTER/INLET SECTION
DISCHARGE PLENUM
ADDITIONAL PROPELLER
FAN SECTION
REQUIRED FOR
254, 260, 272 MODELS
FILTERS
COIL
EXTENSION
OPTIONAL EXTENSIONS
PROPELLER FAN/FILTER/INLET SECTION
HEAT EXCHANGER SECTION
DISCHARGE PLENUM
ADDITIONAL PROPELLER
FAN SECTION REQUIRED FOR
254, 260, 272 MODELS
FILTERS
COIL
EXTENSION
OPTIONAL EXTENSIONS
