ASSEMBLY
ATTACHING THE REAR SAFETY GUARD
TO THE ROUTER

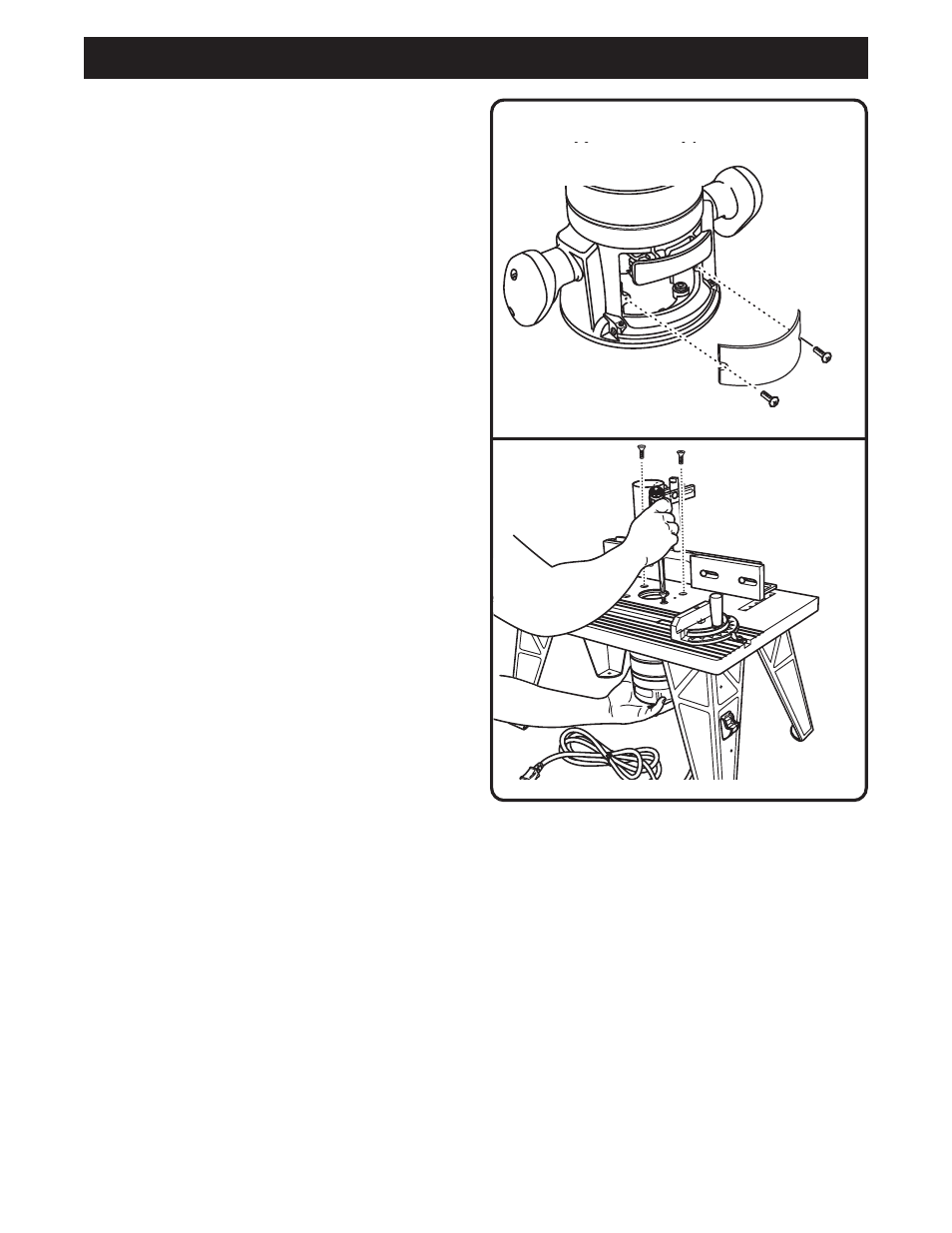

See Figure 8.
Follow these directions to attach the rear safety guard to
the router.
Q Place the rear safety guard on the back of the
router.
Q Align the slots in the guard with the holes in the
router.
Q Secure the rear safety guard to the router with the
two machine screws.
ATTACHING THE ROUTER TO THE TABLE
Attach the router to the router table after you have
assembled the table and installed the rear safety guard.
See Figure 9.
Follow these directions to attach the router to the table.
Q Place the router table right side up with the front
edge closest to you.
Q Be sure the table is stable and rests on all four legs.
Q Hold the router upside down so that the front of the
router faces you.
Q Align the holes in the center of the table with the
holes in the router.
NOTE: To attach router, use the two right holes
and the back left hole.
Q Hold the router with one hand and securely tighten
each of the machine screws with the other hand.
Fig. 9
Fig. 8
