Page 22
Parts List : EB7000

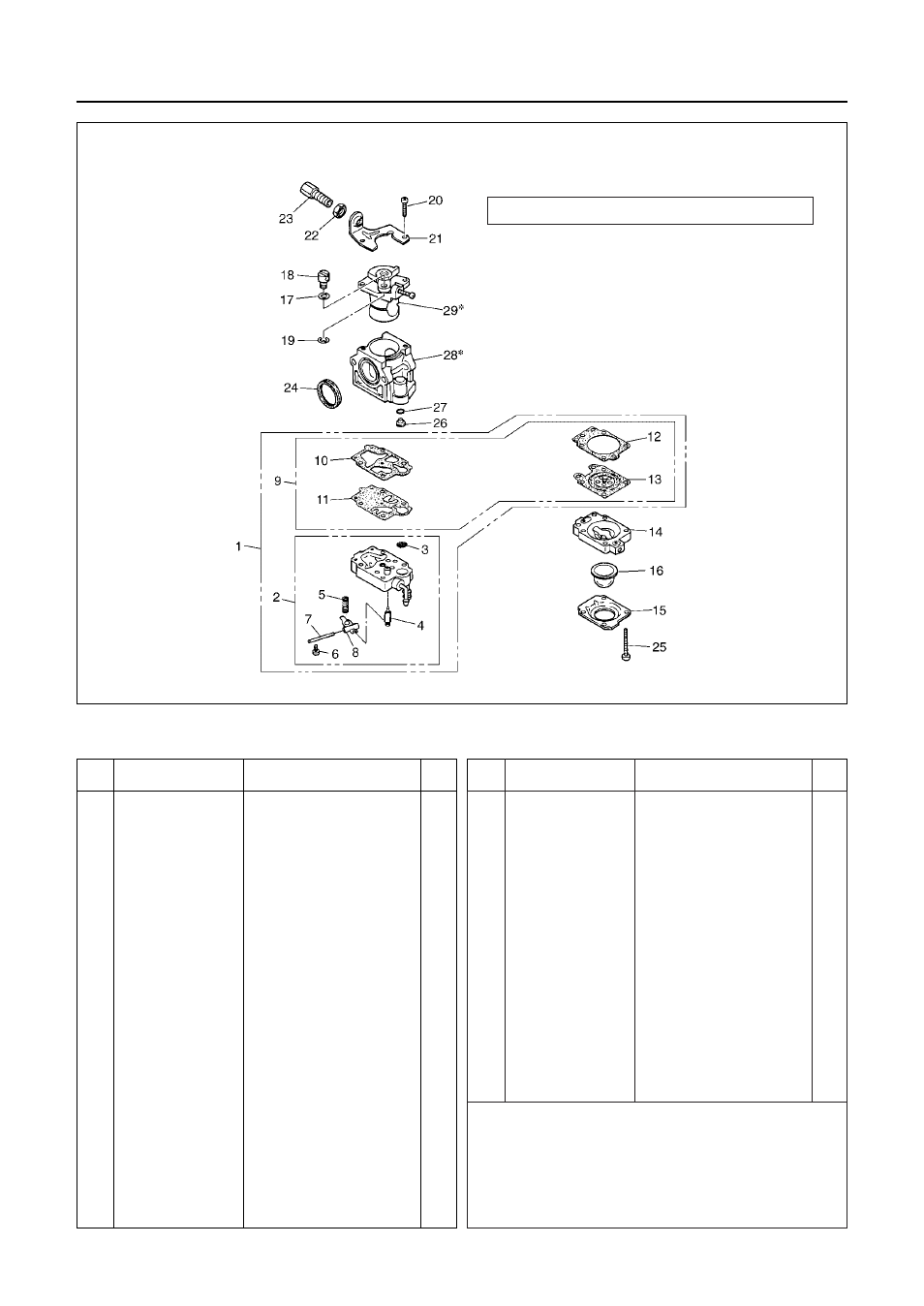

Fig.3 CARBURETOR COMPONENTS
(S/N 010001 and up)
Fig.3 CARBURETOR COMPONENTS
(S/N 010001 and up)
Key#
Part Number
Description
Q'ty
1
5602-06030
REBAILT KIT
1
2
1850-81450
• BODY ASS’Y
1
3
—————
• • SCREEN
1
4
—————
• • VALVE
1
5
—————
• • SPRING
1
6
—————
• • SCREW
1
7
—————
• • PIN
1
8
—————
• • LEVER
1
9
5602-06020
• GASKET KIT
10
—————
• • GASKET
1
11
—————
• • DIAPHRAGM
1
12
—————
• • GASKET
1
13
—————
• • DIAPHRAGM
1
14
1850-81490
BODY
1
15
1850-81520
COVER
1
16
1751-81510
PUMP
1
17
5500-81160
WASHER
1
18
1881-81140
SWIVEL
1
19
1751-81130
RING
1
20
1752-81110
SCREW
2
Key#
Part Number
Description
Q'ty
21
5500-81120
BRACKET
1
22
1751-81180
NUT
1
23
1918-81170
SCREW
1
24
1881-81130
RING
1
25
1850-81530
SCREW
4
26
T4012-81250
JET
1
27
1751-81240
O-RING
1
28
*
—————
BODY
1
29
*
—————
VALVE ASS’Y
1
[NOTE]
• 28
*
-Body and 29
*
-Valve ass’y are not supplied
as an individual part respectively, but supplied
as a carburetor ass’y (P/NO. T4012-81000).
Carburetor Ass’y P/NO. T4012-81000
❲
22
❳
