MODEL EB4401
Dimensions ( L x W x H ) mm ( in ) 480 x 535 x 495 (189 x 211 x 195)
Dry Weight kg ( lbs ) 8.8 (19.3)
Fuel Tank Capacity liter ( fl. oz ) 2.0 (67.6)
Engine Type Air cooled 2-cycle gasoline engine
Piston Displacement cc ( cu. in ) 41.5 (2.53)
Air Filter Regular size
Carburetor ( Diaphragm ) valve type Rotary
Ignition System C.D.I
Spark Plug Champion RJ6C (Noise-proof)
Muffler Spark arrester equipped
Durability Period hrs 300
Operating Engine Speed rpm 2,000 to 6,500
PIPE END ø57
Fuel Consumption liter/h ( fl. oz/h ) 1.7 (57.5)
Average Air Volume cu. m/min ( cfm ) 11 (388)
Max.Air Volume (w/o Pipes) cu. m/min ( cfm ) 19 (671)
Max.Air Velocity m/sec ( mph ) 82 (183)
Noise Level dB(A) 72

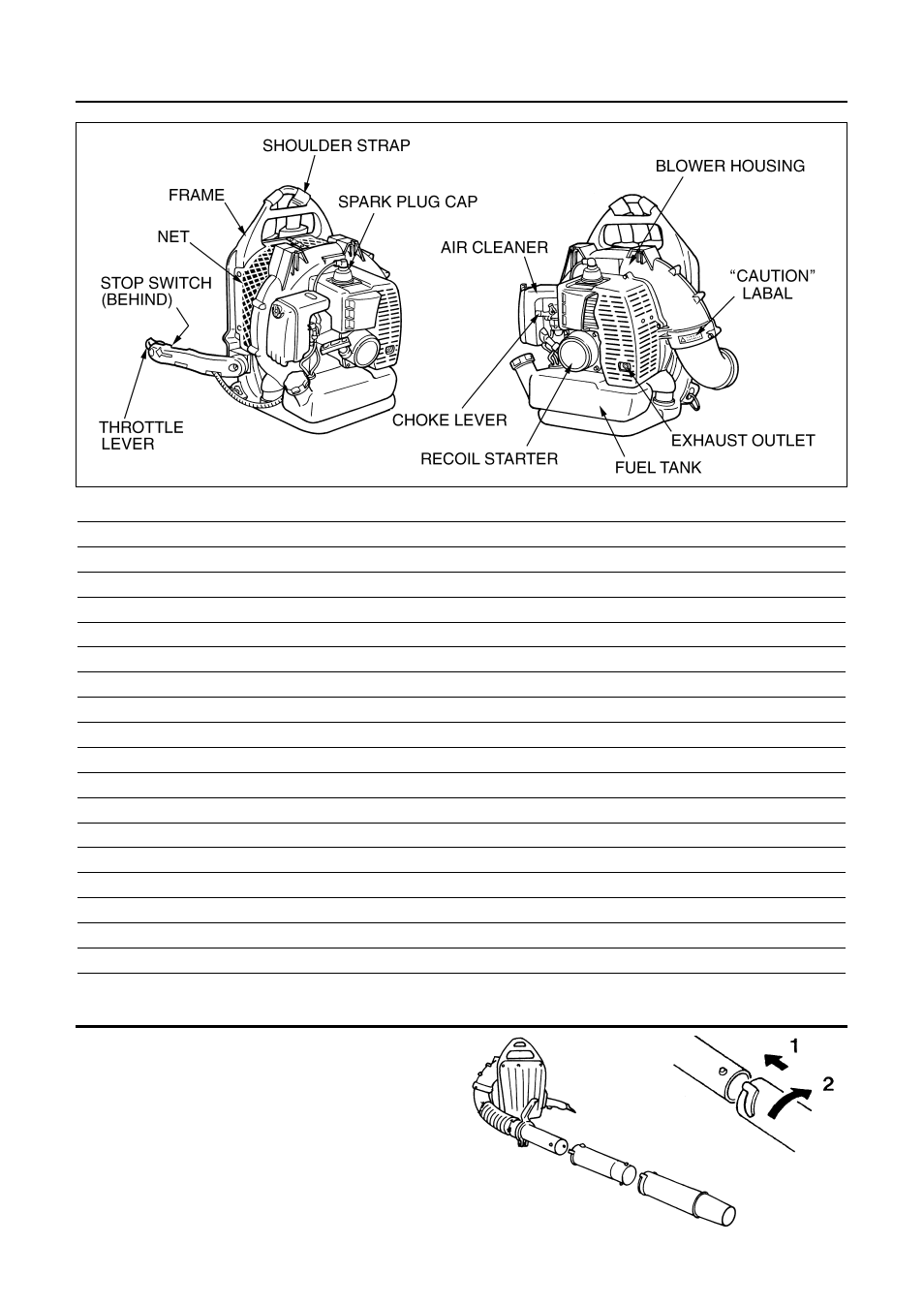

Parts Location & Specifications
Assembly
■ BLOWER TUBES
1.Connect the blower and swivel joint with
flexible hose. Clamp both ends of the
flexible hose securely with the hardware
supplied with the unit.
2.Align the protrusion and the groove
provided on the tube ends and twist the
tube until connection is locked up.
9 
