ADJUSTMENTS

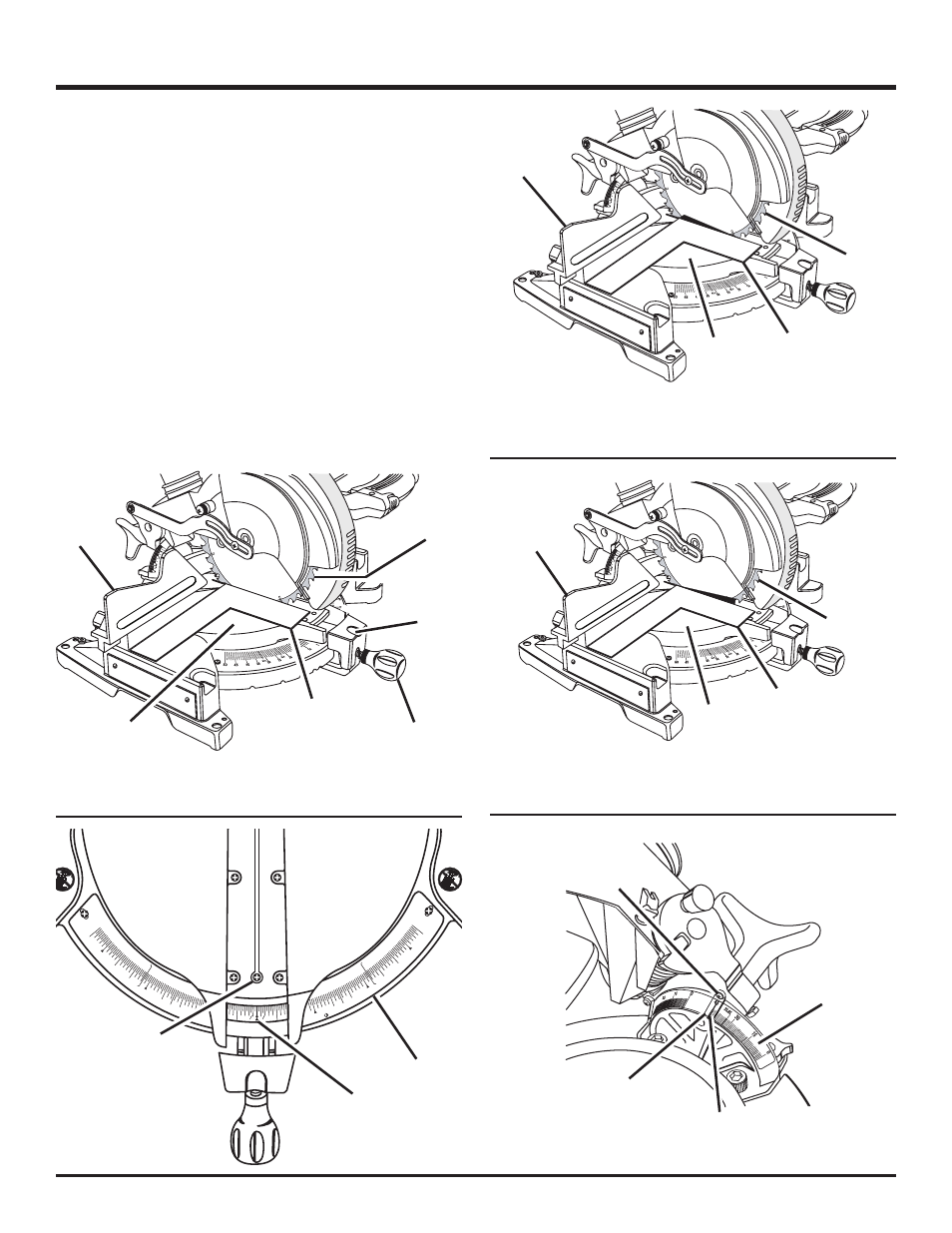

The edge of the square and the saw blade should be
parallel as shown in figure 14.
If the front or back edge of the saw blade angles away
from the square as shown in figures 15 and 16, adjust-
ments are needed.
Loosen the socket head screws that secure the miter
fence to the miter table.
See Figure 13.
Rotate the miter fence left or right until the saw blade is
parallel with the square.
Retighten the screws securely and recheck the blade-to-
fence alignment.
Insert the throat plate, lower the blade and secure with
the screws. Tighten firmly. See page 18 for instruction
regarding “cutting a slot in the zero clearance throat
plate”.
Your saw has scale indicators. After squaring adjustments
have been made, it may be necessary to loosen the indicators
screws and reset them to zero.
See Figure 17.
MITER
TABLE
BLADE
MITER
LOCK HANDLE
Fig. 14
MITER
TABLE
VIEW OF BLADE
SQUARE WITH FENCE
BLADE
MITER
LOCK PLATE
FRAMING
SQUARE
VIEW OF BLADE NOT SQUARE WITH
FENCE, ADJUSTMENTS ARE REQUIRED
FRAMING
SQUARE
MITER
FENCE
Fig. 15
MITER
FENCE
Fig. 16
VIEW OF BLADE NOT SQUARE WITH
FENCE, ADJUSTMENTS ARE REQUIRED
FRAMING
SQUARE MITER
TABLE
BLADE
SCALE
INDICATOR
Fig. 17
MITER
SCALE
INDICATOR
SCREW
MITER
FENCE
SCALE
INDICATOR
BEVEL
SCALE
INDICATOR
SCREW
INDICATOR
POINT
