ASSEMBLY
SQUARING THE BLADE TO THE MITER TABLE
See Figures 25 - 28.
n
Remove the battery pack from the tool.
n
Pull the saw arm all the way down and engage the lock
pin to hold the saw arm in transport position.
n
Lift the miter table clamp.
n
Rotate the miter table until the pointer is positioned at 0°.
n
Push the miter table clamp back down.
n
Loosen bevel lock knob and set saw arm at 0° bevel
(blade set 90° to miter table). Tighten bevel lock knob.
�n Place a combination square against the miter table and
the flat part of saw blade.
NOTE: Make sure that the square contacts the flat part
of the saw blade, not the blade teeth.
n
Rotate the blade by hand and check the blade-to-table
alignment at several points.
�n The edge of the square and the saw blade should be
parallel as shown in figure 25.
�n If the top or bottom of the saw blade angles away from
the square as shown in figures 26 and 27, adjustments
are needed.
�n Using a 10 mm wrench or adjustable wrench, loosen the
lock nut securing positive stop adjustment screw. Also
loosen bevel lock knob.
�n Adjust positive stop adjustment screw to bring
saw blade into alignment with the square. See Figure 28.
�n Retighten bevel lock knob. Next, retighten lock nut
securing the positive stop adjustment screw. Recheck
blade-to-table alignment.
NOTE: The above procedure can be used to check blade
squareness of the saw blade to the miter table at both 0°
and 45° angles.
45
30
15
0
15
22
.5
30
4
5
4
5
31
.6
2
22.5
31.62

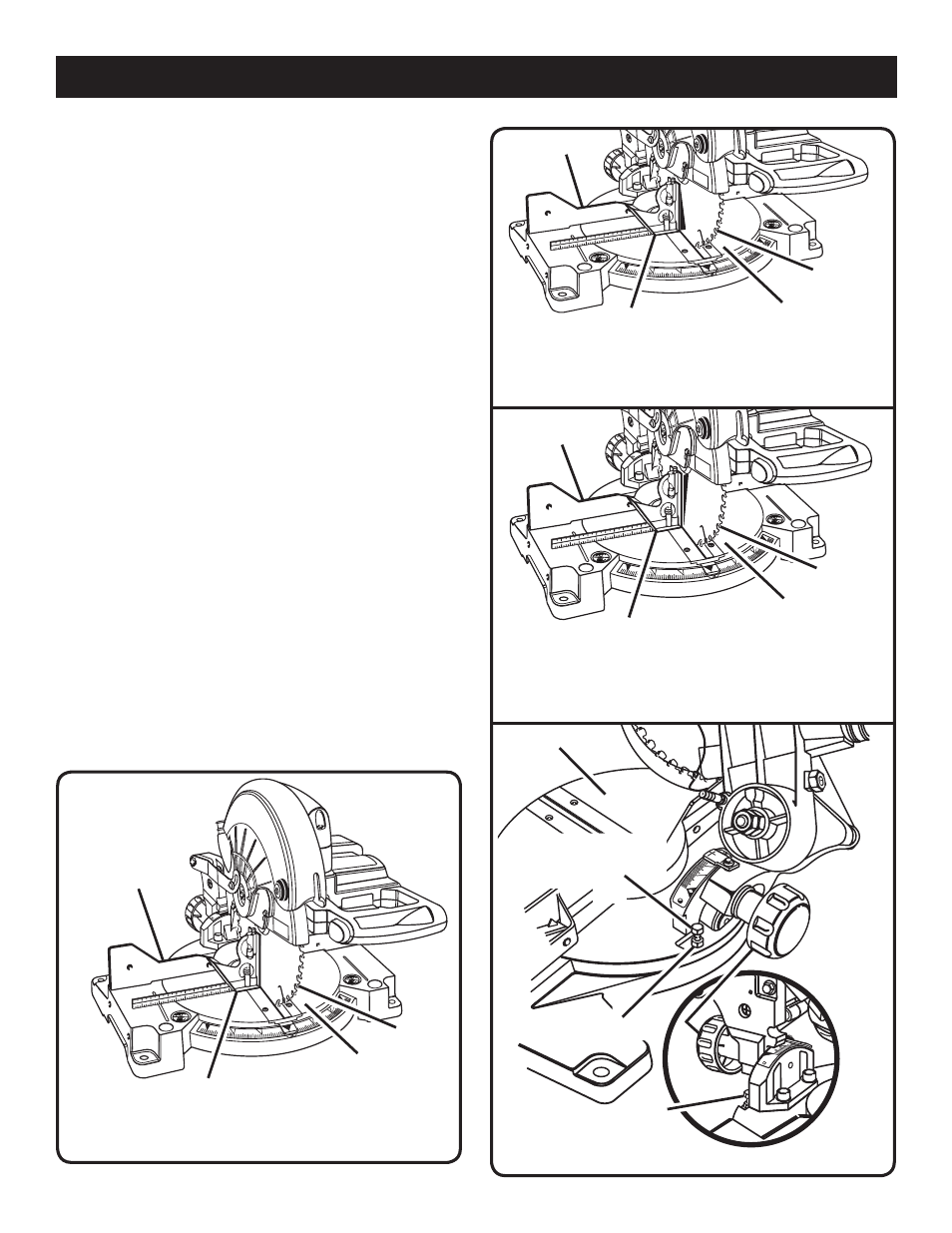

Fig. 25
VIEW OF BLADE SQUARE WITH MITER TABLE
COMBINATION
SQUARE
FENCE
MITER TABLE
BLADE
Fig. 26
VIEW OF BLADE NOT SQUARE WITH MITER
TABLE, ADJUSTMENTS ARE REQUIRED
COMBINATION
SQUARE
FENCE
MITER TABLE
BLADE
Fig. 27
VIEW OF BLADE NOT SQUARE WITH MITER
TABLE, ADJUSTMENTS ARE REQUIRED
45
30
15
0
15
22
.5
30
4
5
4
5
31
.6
2
22.5
31.62
COMBINATION
SQUARE
FENCE
MITER TABLE
BLADE
15
30
Fig. 28
MITER TABLE
POSITIVE STOP
ADJUSTMENT SCREW
FOR 45° ANGLES
POSITIVE STOP
ADJUSTMENT SCREW
FOR 0° ANGLES
LOCK NUT(S)
