25
PROBLEM: The displays of the console do not function properly

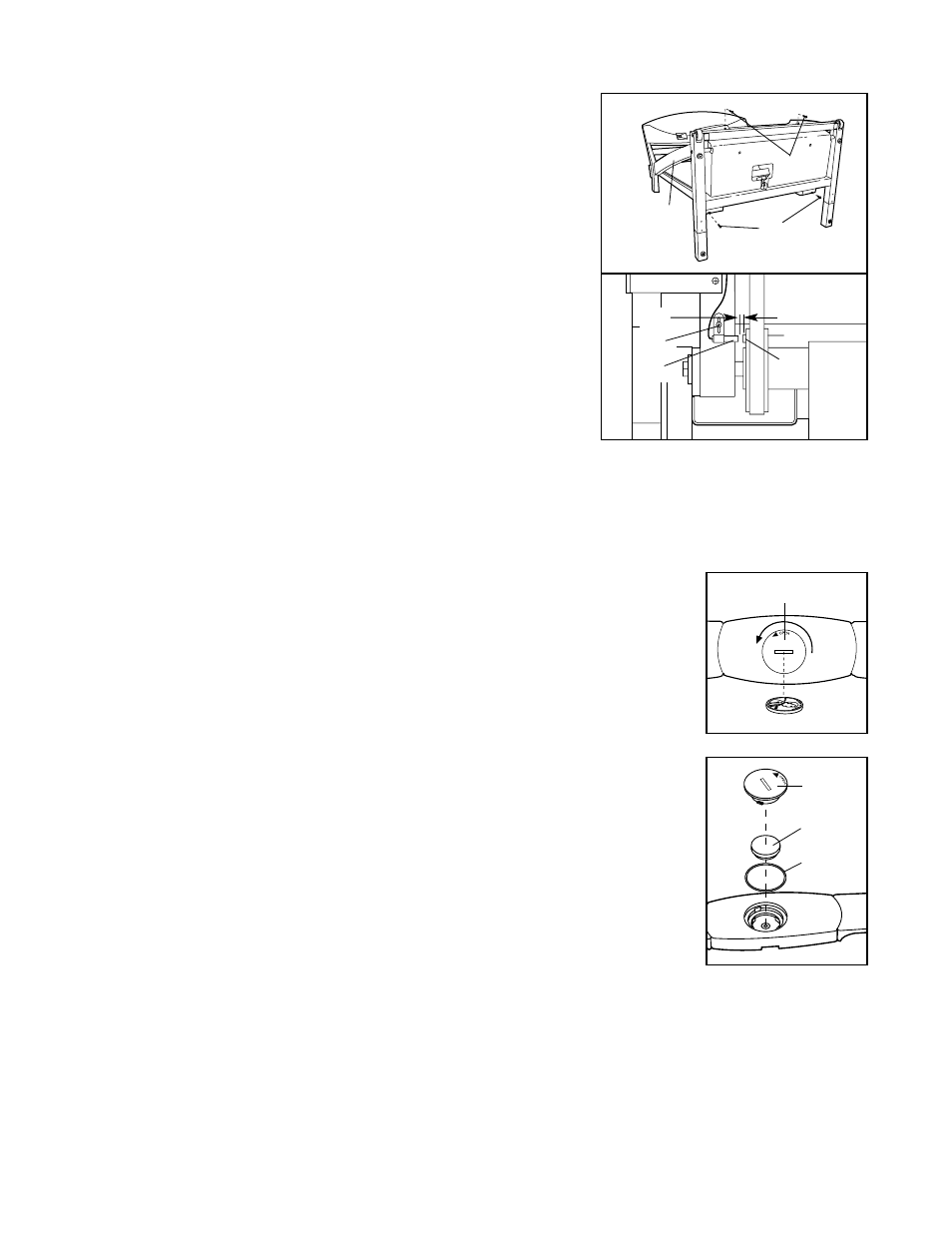

SOLUTION: a. Remove the key from the console and unplug the
power cord. Carefully tip the treadmill down as
shown in drawing a. Remove the Screws (39, 83) from
the hood. Raise the Uprights (69) and carefully re-
move the hood.
Locate the Reed Switch (10) and the Magnet (7) on
the left side of the Pulley (8). Turn the Pulley until the
Magnet is aligned with the Reed Switch. Make sure
that the gap between the Magnet and the Reed
Switch is about 1/8”. If necessary, loosen the 1/2”
Screw (67) and move the Reed Switch slightly.
Retighten the Screw. Re-attach the hood, and run the
treadmill for a few minutes to check for a correct
speed reading.
PROBLEM: The chest pulse monitor does not function properly
SOLUTION: a. If the chest pulse monitor does not function properly, see CHEST PULSE MONITOR TROUBLE-
SHOOTING on page 8.
b. If the chest pulse monitor still does not function properly, the battery
should be changed. To replace the battery, locate the battery cover
on the back of the sensor unit. Insert a coin into the slot in the cover
and turn the cover counterclockwise to the “open” position. Remove
the cover.
Remove the old battery from the sensor unit. Insert a new CR 2032
battery, making sure that the writing is on top. In addition, make sure
that the rubber gasket is in place in the sensor unit. Replace the bat-
tery cover and turn it to the closed position.
7
83
39
69
a
8
Top View
67
1/8”
10
Battery
Rubber
Gasket
Battery Cover
Battery
Cover
