11 www.remingtonpowertools.com
ENGLISH

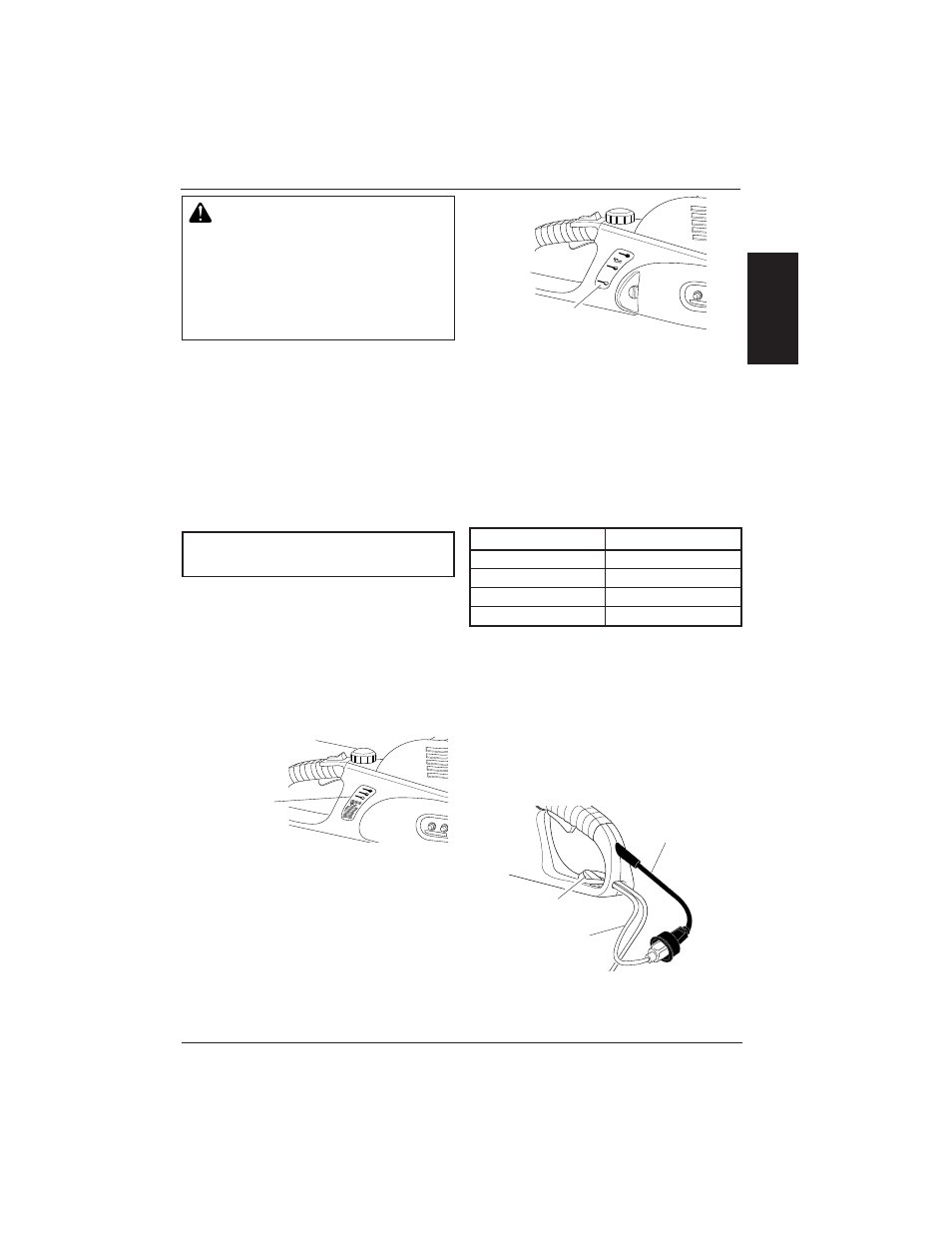

Figure 7 - Oil Squeeze Bulb and Oil Sight Window
Location for Model 107624-02
Oil Sight Window
Oil Squeeze Bulb
Oil Sight Window
Power Cord
Extension Cord
Cord Hitch
OPERATING CHAIN SAW
WARNING: Read and understand this
owner’s manual before operating this saw.
Make certain you read and understand all
Important Safety Information
. Improper
use of this chain saw can cause severe
injury or death from fire, electrical shock,
or body contact with moving chain, or
falling wood.
FILLING OIL TANK
1. Remove oil cap.
2. Fill oil tank with SAE #30 motor oil. Note: For
temperatures below 30°F, use SAE #10 oil. For
temperatures above 75°F, use SAE #40 oil.
3. Replace oil cap at once. Tighten oil cap firmly for
good seal. This will avoid oil seepage from tank.
4. Wipe off excess oil.
Note: It is normal for oil to seep when saw is not in
use. Empty oil tank after each use to prevent seep-
age.
Figure 9 - Looping Extension Cord over Cord
Hitch
Cord Length AWG Cord Size
25 feet 16 AWG
50 feet 16 AWG
100 feet 14 AWG
150 feet 12 AWG
Keep cord away from cutting area. Make sure cord
does not catch on branches or logs during cutting.
Inspect cords often. Replace damaged cords.
This chain saw is designed with an extension cord hitch
that prevents the extension cord from being pulled loose
during use. To use, form a loop with the end of the
extension cord, insert loop into slot in rear of handle,
and place loop over cord hitch (see Figure 9). Gently
pull loop against cord hitch until slack is removed.
Plug extension cord into chain saw cord.
EXTENSION CORDS
Use proper extension cords with this saw. Use only
extension cords marked for outdoor use. The cord must
be marked with suffix W or W-A following the cord
type designation. Example: SJTW-A or SJTW.
Use proper sized cord with this saw. Cord must be heavy
enough to carry current needed. An undersized cord will
cause voltage drop at saw. Saw will lose power and over-
heat. Follow cord size requirements listed below.
Figure 8 - Oil Sight Window Location for Model
107625-02, 111174-01
IMPORTANT : DO NOT USE BAR AND
CHAIN OIL
OILING CHAIN
Manual Oil System
Always check oil level before using saw. Do not
attempt to operate the oil system while saw is in
operation. To oil chain, press squeeze bulb. Oil will
feed onto the guide bar and chain. Press squeeze bulb
at least once before each cut. Check oil level often by
looking at oil sight window (see Figure 7).
Automatic Oil System
Chain saw Model 107625-02, 111174-01 is equipped
with an automatic oiling system. It will provide ad-
equate lubrication to the guide bar and saw chain. Check
oil level every 15 minutes of cutting time. Oil level can
be seen in oil sight window (see Figure 8).
