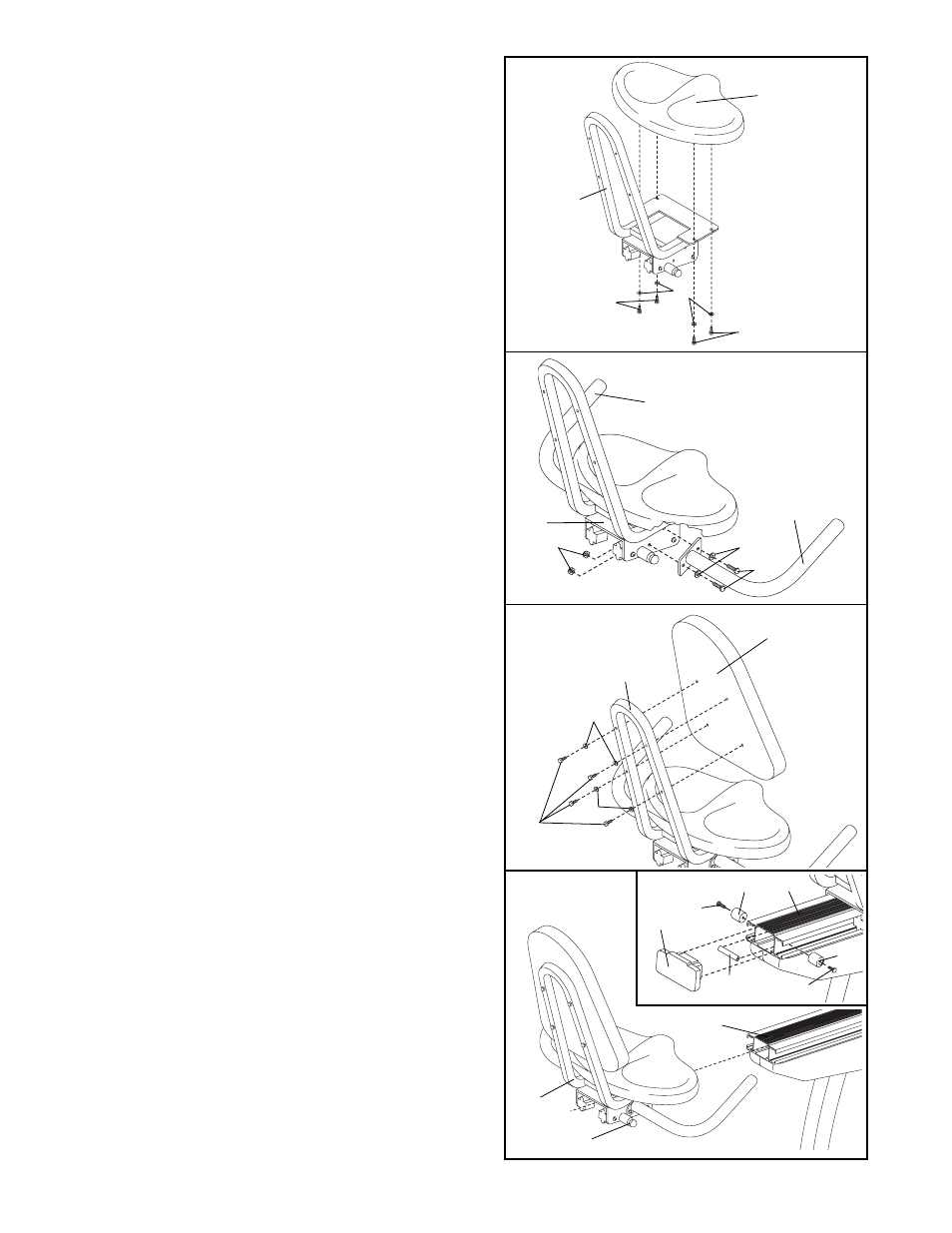

5. Attach the Seat (12) to the Seat Carriage (11) with
four M6 x 16mm Hex Screws (29) and four M8 Flat
Washers (18).
6. Attach a Seat Handle (14) to the Seat Carriage (11)
with two M8 x 15mm Button Screws (27), two M8
Flat Washers (18), and two M8 Nylon Locknuts (56).
Attach the other Seat Handle (14) to the Seat
Carriage (11) in the same manner.
7. Attach the Backrest (13) to the Seat Carriage (11)
with four M6 x 38mm Hex Screws (88) and four M8
Flat Washers (18).
27
14
14
18 56
11
13
18
11
18
88
5
6
7
8. Pull the seat knob and slide the Seat Carriage (11)
onto the Seat Rail (7).
Refer to the inset drawing. Hold the Bumper Axle
(86) inside of the Seat Rail (7). Attach a Bumper
(85) to each end of the Bumper Axle with a Bumper
Screw (84) as shown. Press the Seat Rail Endcap
(23) into the end of the Seat Rail.
