Ryobi BAND SAW - Manual (Page 12)

Page 12
ASSEMBLY
Align the screw holes in the saw table with the holes in
the saw table bracket.
Using the phillips screws, attach the saw table to the saw
table bracket. Tighten phillips screws securely.
Attach the table aligning bolt, washer, and wing nut to
the saw table.
NOTE: The wing nut goes below the saw table.
SQUARING THE SAW TABLE TO THE BLADE
See Figure 8.
WARNING:
Failure to turn the saw off, remove the switch key, and
unplug the saw could result in accidental starting causing
possible serious personal injury.
Turn the lock knob counterclockwise to unlock the blade
guide assembly. Turning the blade guide knob clockwise,
raise the blade guide assembly as far as it will go. Turn
the lock knob clockwise to retighten.
Place a small combination square on the saw table beside
the blade.
Loosen the table lock knob and rotate the angle
adjustment knob to tilt the saw table up or down to align
table 90
° to blade (0° position). Retighten the table lock
knob.
Using a hex key, adjust the zero stop set screw until the
set screw just touches the saw housing.
Check squareness of the saw table to the blade. Make
readjustments if necessary.
Loosen screw on scale indicator with a phillips
screwdriver and align scale indicator to zero.
Tighten all screws securely.
WING
NUT
WASHER
TABLE
ALIGNING
BOLT

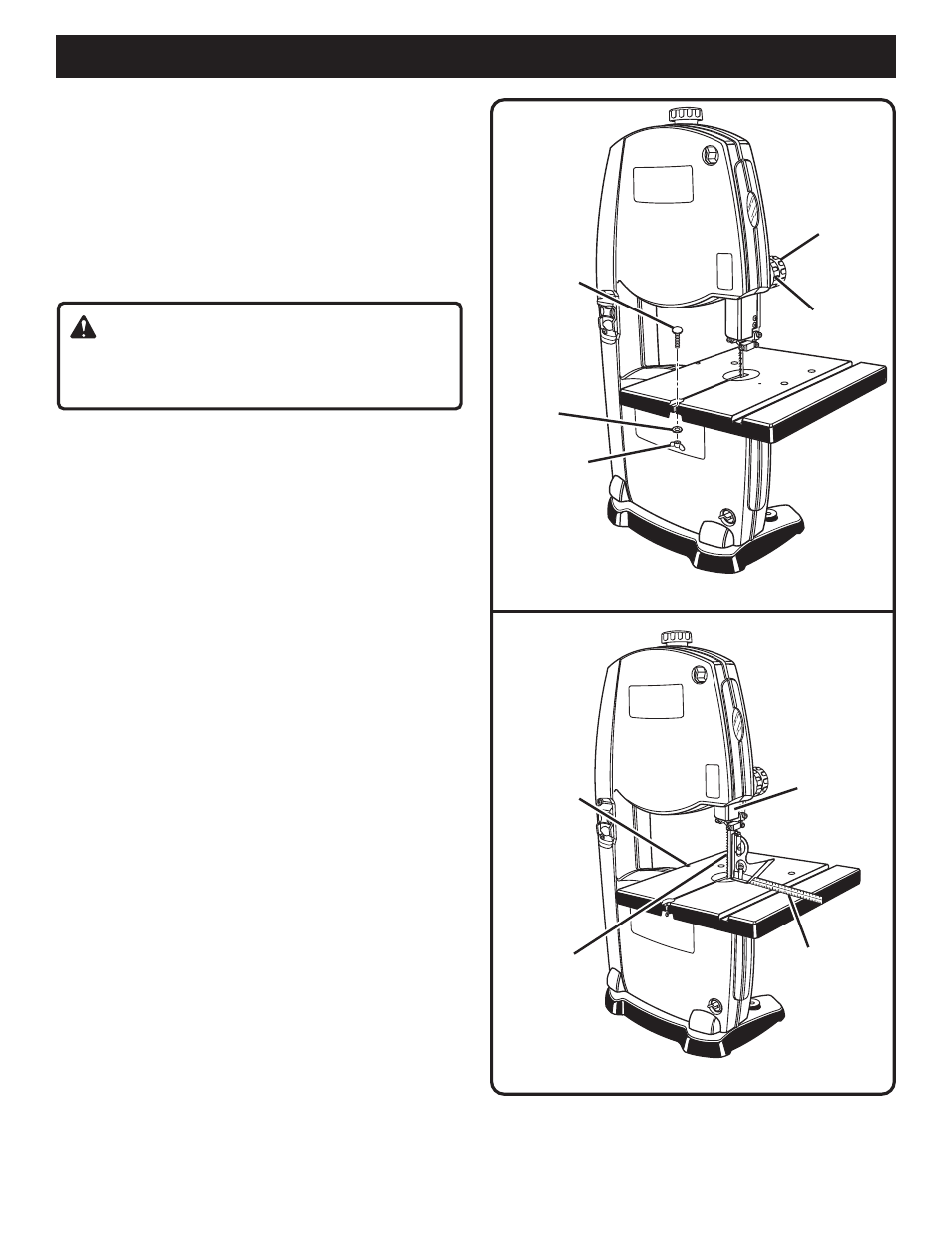

Fig. 7
Fig. 8
BLADE
GUARD
SMALL
COMBINATION
SQUARE
SAW
BLADE
ZERO STOP
SET SCREW
LOCK
KNOB
BLADE
GUIDE KNOB
