8
9
9. Set the Right Foot Rail (98) and the Left Foot Rail (not
shown) on the sides of the Walking Platform (100). While
a second person holds the Foot Rails, raise the Walking
Platform to the position shown. Attach the Right Foot Rail
with five Foot Rail Screws (97) and five Foot Rail
Washers (96).
Attach the Left Foot Rail (not shown) in the same way.
Identify the Right Foot Housing (106) and one of the
Rubber Feet (104). See the inset drawing. Hold the Right
Foot Housing and the Rubber Foot near the upper end of
the Right Foot Rail (98) as shown. The ridge on the Right
Foot Housing should match the ridge on the Right Foot
Rail. In addition, the angle of the Rubber Foot should
match the angle of the Right Foot Housing. Make sure
that the parts are oriented exactly as shown. Attach the
Right Foot Housing with two Foot Housing Screws (105).
Attach the Rubber Foot with two Foot Screws (65).
Attach the Left Foot Housing (not shown) and the other
Rubber Foot (not shown) as described above.
Lower the Walking Platform (100) to the floor.
97
96
100
65
105
106
104
97 96

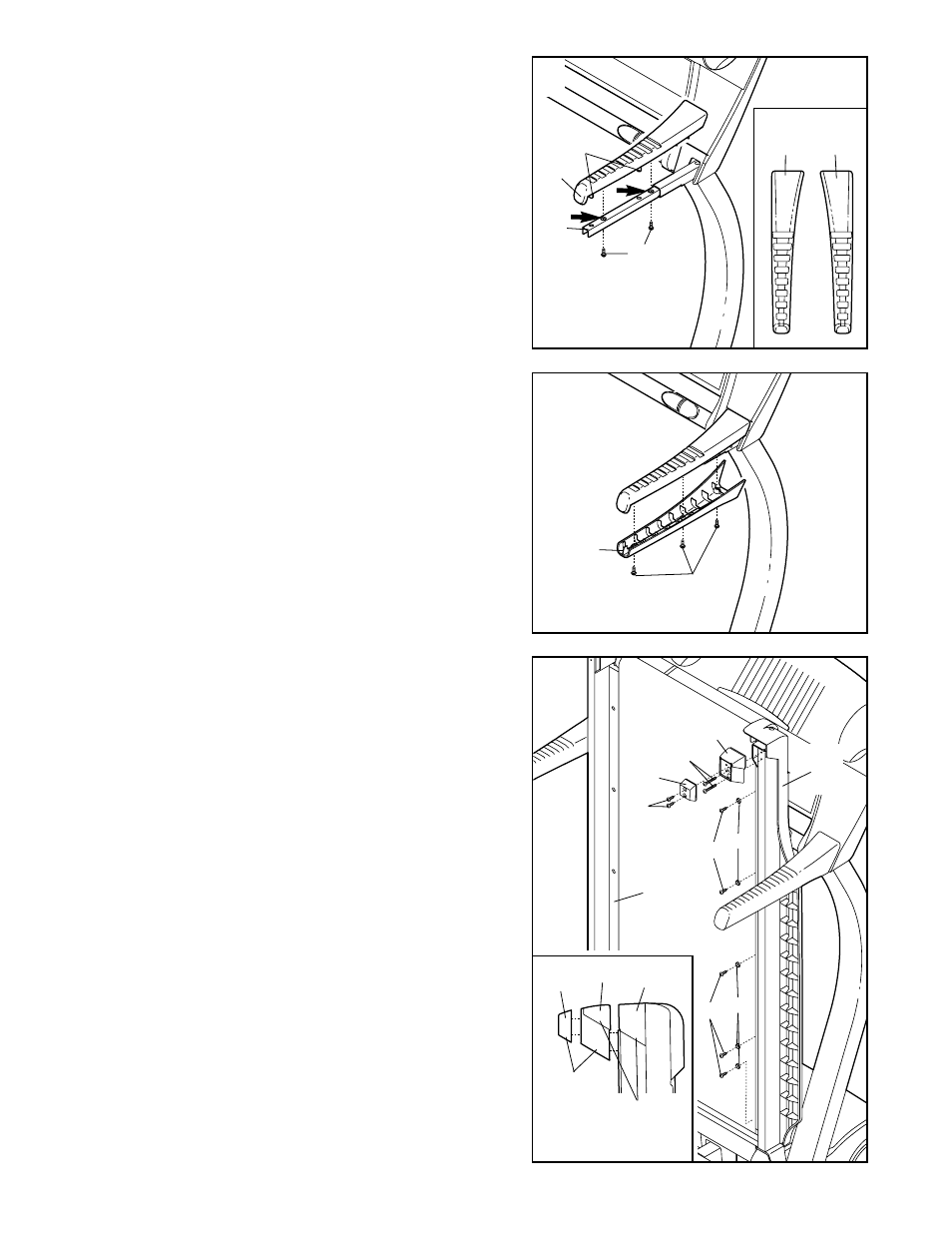

7. See the inset drawing. Identify the Right Top Handgrip
(53); there are identifying marks inside the Handgrips.
Set the Right Top Handgrip on the right Handgrip Post
(41). Insert two 1/2” Screws (51) into the two holes in
the Handgrip Post indicated by the arrows. Tighten
the Screws into the Right Top Handgrip.
Important: Be careful not to insert the two 1/2”
Screws (51) into the wrong holes in the Handgrip
Post (41), or tighten the Screws into the plastic
bosses on the bottom of the Right Top Handgrip (53).
51
53
Bosses
Left
41
Right
7
53 21
8. Attach the matching Right Bottom Handgrip (54) with
three 1/2” Screws (51).
Attach the Left Top Handgrip (21) and the Left Bottom
Handgrip (not shown) as described above.
54
51
8
98
106
104
Matching
Angles
98
Side View
Ridges
