INSTALLING THE RECEIVER FOR THE OPTIONAL CHEST PULSE SENSOR
If you purchase the optional chest pulse sensor (see page 22), follow the steps below to install the re-
ceiver included with the chest pulse sensor.

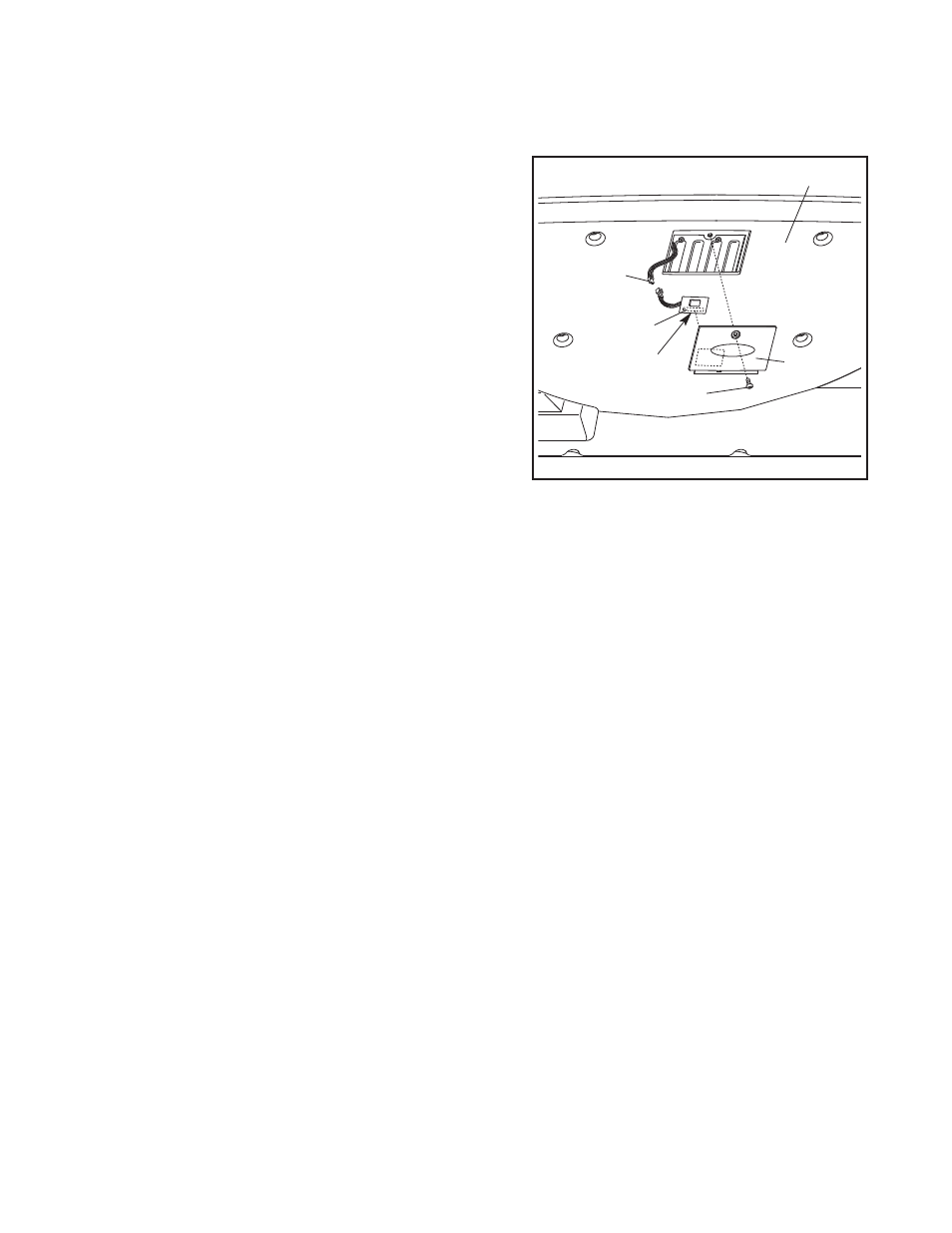

1. Make sure that the power cord is unplugged. Remove
the indicated Screw (51) and the Access Door (120).
2. Remove the paper from the adhesive pad on the back of
the receiver (A). Orient the receiver so the small cylin-
der is near the lower edge of the receiver and is fac-
ing the Console Back (52) as shown. Firmly press the
receiver onto the indicated corner of the Access Door
(120). Connect the wire on the receiver to the pulse wire
(B) extending from the Console Back.
3. Make sure that no wires are pinched. Reattach the
Access Door (120) with the Screw (51). Note: The other
wires included with the receiver may be discarded.
A
52
120 Cylinder
51
A
