Operation – Ryobi D41 User Manual

Page 11

UNLOCK

(RELEASE)

DRILL BIT

CHUCK

JAWS

CHUCK BODY

LOCK

(TIGHTEN)

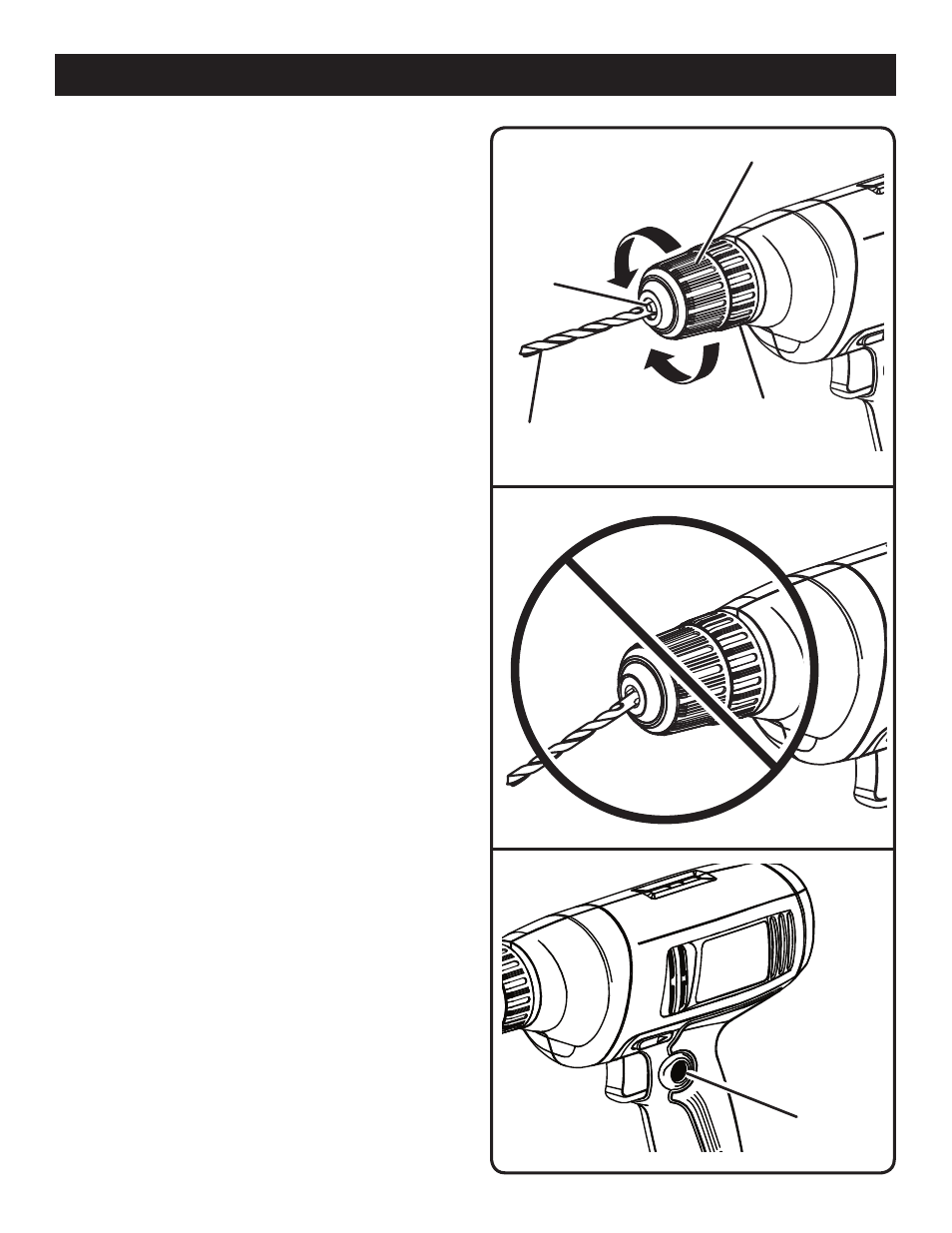

Fig. 3

RIGHT

CHUCK

COLLAR

OPERATION

Fig. 4

WRONG

REMOVING BITS

See Figure 3.

Unplug the drill.

Rotate the chuck sleeve clockwise to open the chuck

jaws.

NOTE: Rotate the chuck body in the direction of the ar-

row marked

UNLOCK to loosen the chuck jaws. Do not

use a wrench to tighten or loosen the chuck jaws.

Remove the drill bit.

LOCK-ON BUTTON

See Figure 5.

This drill is equipped with a lock-on feature, which is con-
venient for continuous drilling for extended periods of time.
To lock-on:
n

Depress the switch trigger.

Push in and hold the lock-on button, located on the side

of the handle.

Release the switch trigger.

Release the lock-on button and the drill will continue

running.

To release the lock, depress and release the switch trig-

ger.

If the lock-on feature is engaged during use and the drill
becomes disconnected from the power supply, disengage
the lock-on feature immediately.

LOCK-ON

BUTTON

Fig. 5
