(B)
(A)
US-9
HEZ2460S/HEZ3060S
U
S
6. Set up
■ MOUNTING OTHER PARTS

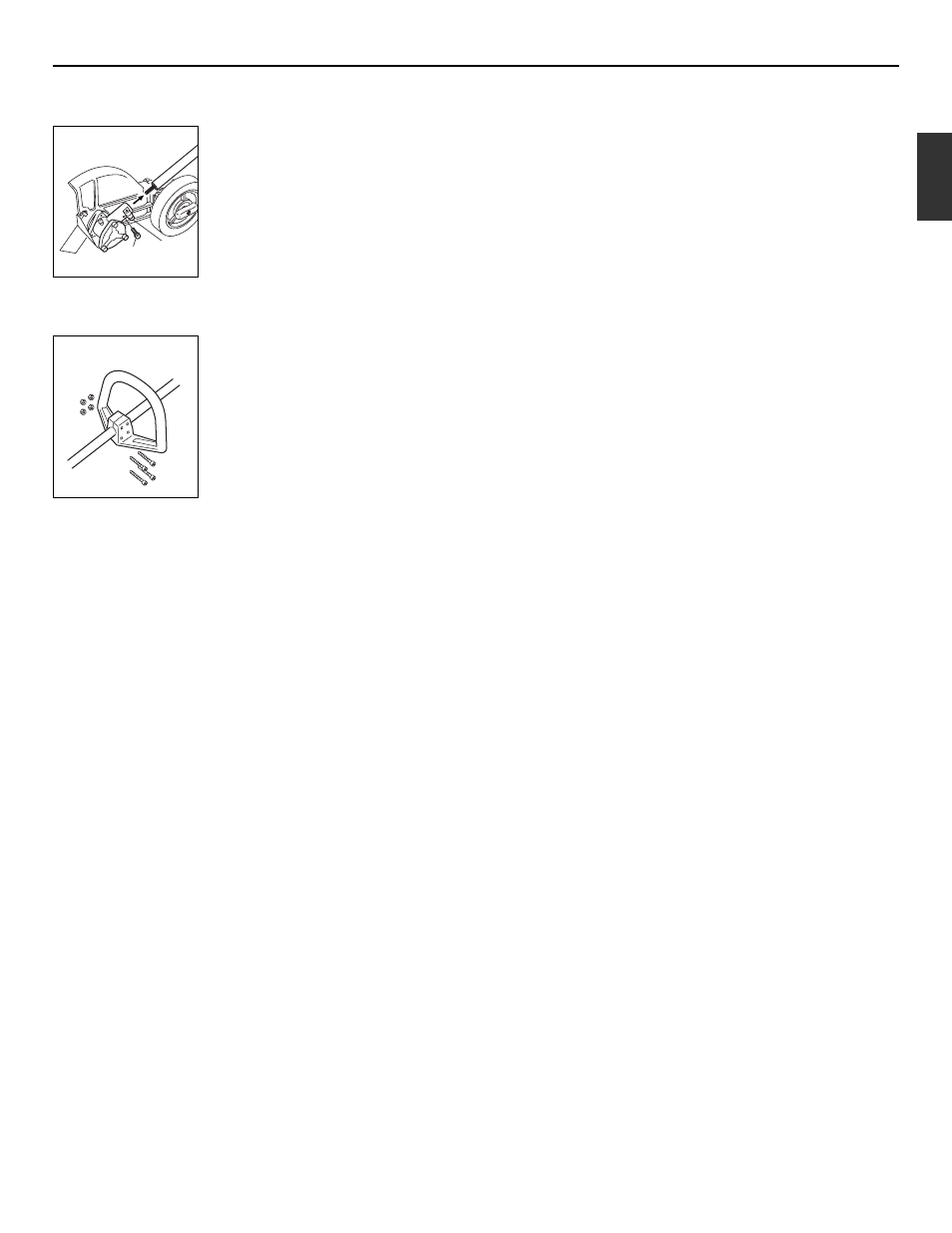

1. Insert the driveshaft into the clutch
drum, then attach the gearbox to the
shaft tube as aligning the positioning
holes and fasten the screw (A). Fasten
the clamp bolt (B) firmly. (SE1)
(A) Screw
(B) Clamp bolt
(B) Tightning Torque:
70~130 in-lb (8~15 N.m)
2. Install the handle to the shaft tube and
clamp at a position best for your job.
(SE2)
SE1
SE2
