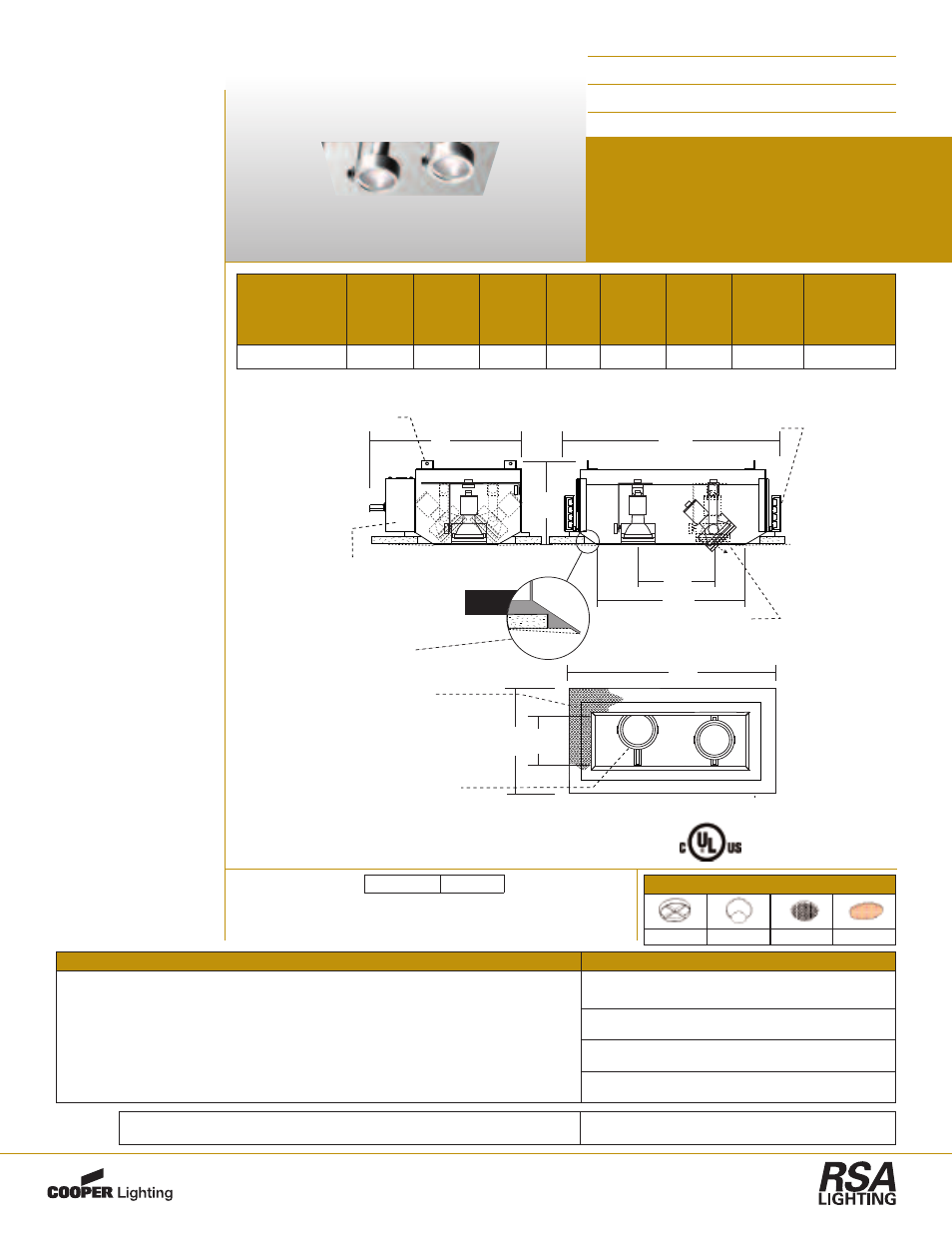

COMBOLIGHT
®
LV Series
TWO (2) Light Recessed
Next Generation Trimless
Multi-Lamp Luminaire
PAR20 Line Voltage
6.75"
A
B
C
E D
F
G
380º x 45º locking
angular adjustment
45º visual cut-off
Perforated mesh plaster
frame adheres to ceiling
compound for seamless
trimless mounting.
Beveled housing interior and
standard retractable yokes allow
lamp holders to slide within the
housing for added adjustability.
Trimless
Detail
Ceiling mudding
compound is applied
directly to the edge
of the aperture.
Side mounted compartment
houses wiring and thermal
protector. Accessible
through fixture opening.
Tabs for aircraft
cable suspension
above ceiling
Butterfly Brackets
for Black Iron mounting
Other Adders
CC - Two Circuit
CP - Chicago Plenum
RECESSED PAR20
LV TRIMLESS
Dimensions
A
Housing
Length
B
Housing
Height
C
Aperture
Length
D
Aperture
Width
E
Plaster Frame
Width
F
Plaster Frame
Length
G
Above Ceiling
Width
Ceiling
Cut-Out
19.75” 7.09” 14.00” 5.30” 11.05” 19.75” 13.25” 17.20” x 8.50”
Optional Accessories - Details on Other Side
Baffle Snoots Louvers Lenses
DESCRIPTION:
An adjustable PAR20 fixture suit-
able for multiple downlighting
applications with one point of
electrical entry. Powder coat fin-
ish on housing & lamp assembly.
Housing suitable for new con-
struction applications.
CONSTRUCTION:
All aluminum construction.
Perforated mesh plaster frame
adheres to ceiling compound for
seamless trimless mounting.
Beveled fixture opening provides
easy mudding compound applica-
tion. Can accommodate 0.50” or
0.625” drywall. Includes butterfly
brackets for black iron commer-
cial mounting.
LAMP ASSEMBLY:
2 - PAR20 lamps mounted in
adjustable bezels. Each lamp can
accept up to two optical acces-
sories. 380º x 45º locking adjust-
ment. Fixture provides 45º visual
cut-off. Lamp holders retract for
added internal adjustment.
SYSTEM PROTECTION:
Thermal protection provided to
guard against overheating, and
misuse of insulation over and
around fixture. Vent holes in hous-
ing provide cooler operation
ELECTRICAL:
Junction box is UL listed for
through branch wiring, (access
above ceiling not required) for 8
#12, 90°C supply conductors or
60°C for end of run. J-Box and
wiring accessible through ceil-
ing opening via access door on
housing sidewall.
ALL RSA COMBOLIGHT PRODUCTS
ARE MADE IN THE U.S.A.
SPECIFY -
ORDERING EXAMPLE:
= Two Light Trimless Recessed PAR20 - White Interior
LV2000IS WH
Cat. # / Description Interior Finish
LV2000IS : 2 Light Recessed Next Generation Trimless Combo Fixture 120V PAR20 BK - Black
WH - White
S - Silver
PT - Custom (Specify)
LV2000IS
Specifications and Dimensions subject to change without notice.
