1 – Introduction
About the FishFinder L265
The FishFinder L265 is a system that uses sound waves (“sonar”) to
detect fish and show the bottom of a lake or sea. The system includes a
transducer and a display unit, connected by a cable. The transducer
sends high-frequency sound waves down into the water. These sounds
strike fish, the bottom, or other objects in the water, and return as echoes.
The FishFinder then interprets these echoes and presents a display.
The FishFinder L265 can handle many different jobs:
•
detect the presence of fish below the boat
• trigger an alarm when fish are found
• measure the depth of the water
• set alarms for minimum and maximum depth
• show the shape of the bottom
• determine whether the seabed is hard or soft
We are sure you will find the FishFinder L265 to be one of the most useful
devices on your boat.

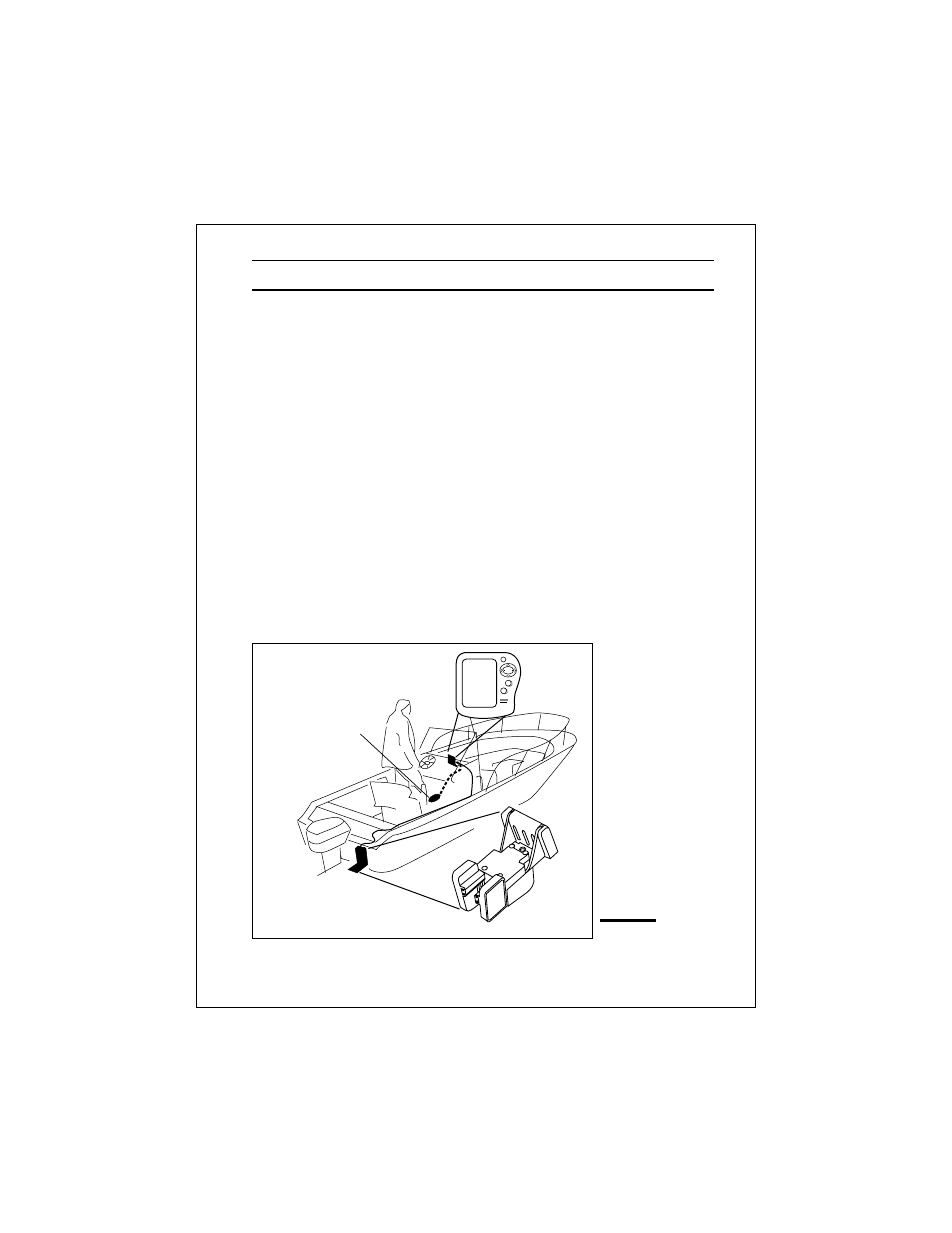

Fig. 1-1
Typical Installation
Introduction
PWR
SETUP
CLEAR
FishFinder 265
Display Unit
Optional Thru Hull
Transducer
Transducer mounted
in quick release
transom bracket
PAGE
Raymarine
L265
