Your RadioShack High Power Stereo Speaker Control
Center lets you connect up to four separate pairs of
speakers to your stereo receiver/amplifier. The control
center is especially convenient if you have speaker sets
in different rooms and want to turn them on and off inde-
pendently.

The control center lets you use one to four sets of speak-
ers at a time, and is designed to operate with a stereo re-
ceiver/amplifier that has a maximum of 100 watts per
channel, and with speaker systems that have a minimum
impedance of 8 ohms (see “Impedance Chart” on
Page 2).

MAKING THE CONNECTIONS

The control center divides the power from your receiver/
amplifier differently to its speaker terminals. (This is espe-
cially noticeable when you connect only one pair of
speakers. If you connect more than one pair of speakers,
see “Impedance Chart” on Page 2 to select the best ter-
minals to connect.) For the best performance, make the
connections based on how frequently you use each set of
speakers.

• Connect the most frequently used speakers to the

terminals marked

SPK

A

.

• Connect the speakers you use least often to the ter-

minals marked

SPK D

.

• Connect any other speakers to the terminals marked

SPK B

and

C

.

Cautions: To avoid damaging your speakers or receiver/
amplifier:

• Be sure your receiver/amplifier’s power is turned off

before you make the connections.

• Never let the speaker wire’s bare ends touch each

other or the adjacent terminals on the control center.

• Do not connect more than one pair of speakers to

each set of terminals.

Press open the desired

SPK

terminals on the control cen-

ter. Insert the speakers’ positive (

+

) wires in the positive

(red) terminals, and negative (

) wires into the negative

(black) terminals, according to the respective

L

(left) and

R

(right) terminals. Then press the tabs to close them.

Press open the

AMP

terminals on the control center, then

insert your receiver/amplifier’s positive (+) wires into the
positive (red) terminals, and negative (–) wires in the neg-
ative terminals. Then press the tabs to close them.

Notes:

• If your receiver/amplifier has more than one set of

speaker terminals (

A

and

B

), connect only one or the

other to the control center.

• For the best results, we recommend 18-gauge, two

conductor speaker wire (not supplied) for most con-
nections. If you plan to locate the speakers further
than 80 feet from the control center, use a heavier
gauge of wire.

Your local RadioShack store carries a wide selection of
speaker wire and accessories.

OPERATION

Caution: To avoid damaging your receiver/amplifier, set
its volume to the lowest setting before changing the con-
trol center’s settings.

To turn on a pair of speakers connected to the control
center, simply press in the desired button (

A

,

B

,

C

, or

D

).

For example, to turn on the set of speakers connected to

SPK A,

press

A

.

To turn off a pair of speakers, press the button again so it
is in the “out” position.

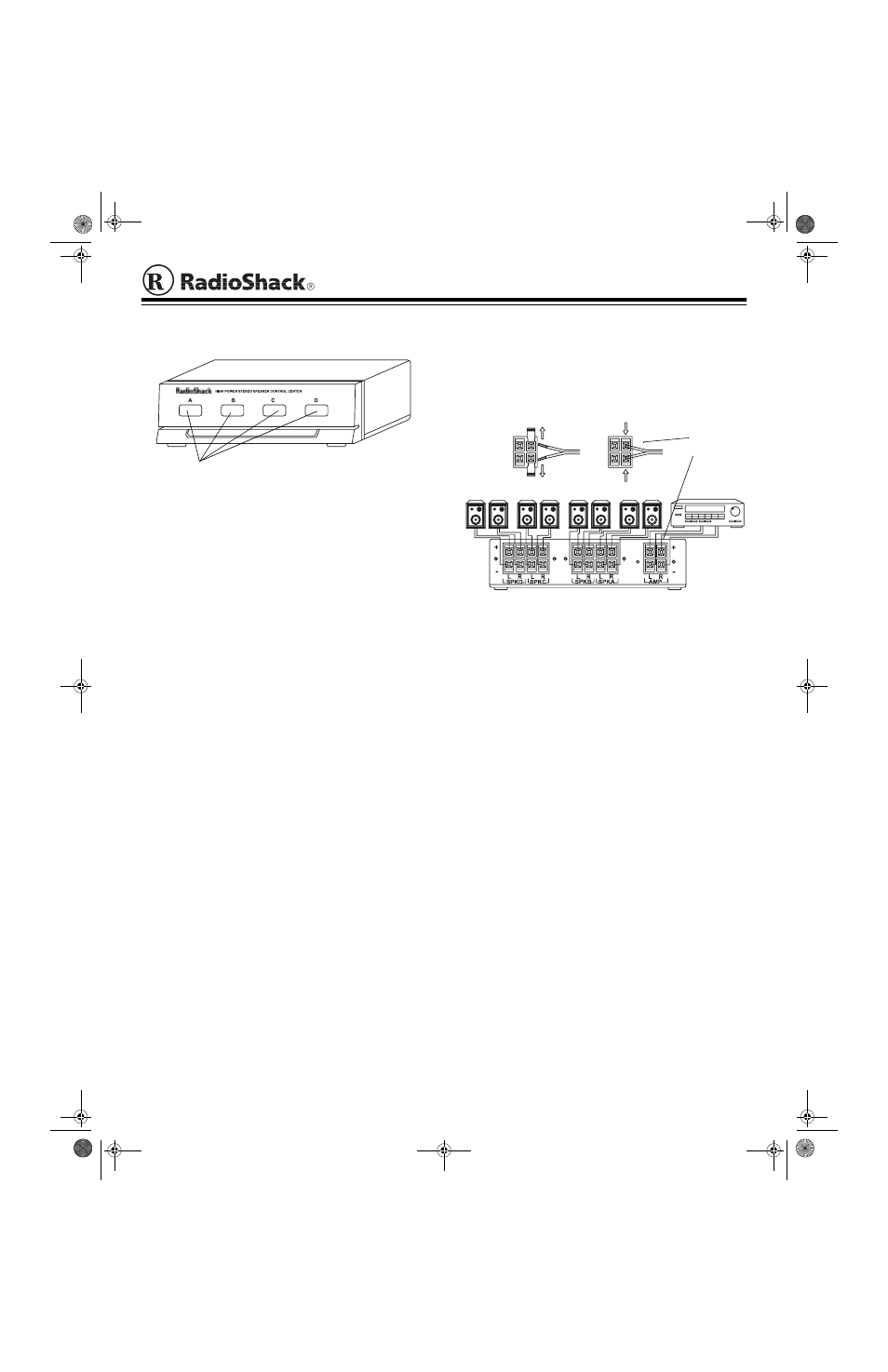

Terminal Buttons

Speaker
Terminals

Open

Close

Cat. No.

40-244

High Power Stereo Speaker Control Center

©
