Page 4

To hire an authorized service technician to assemble the elliptical exerciser, call toll-free 1-800-445-2480.

Assembly requires two persons. Place all parts of the elliptical exerciser in a cleared area and remove the
packing materials. Do not dispose of the packing materials until assembly is completed. In addition to the two
included hex keys, assembly requires a phillips screwdriver , two adjustable
wrenches , a rubber mallet , and pliers .

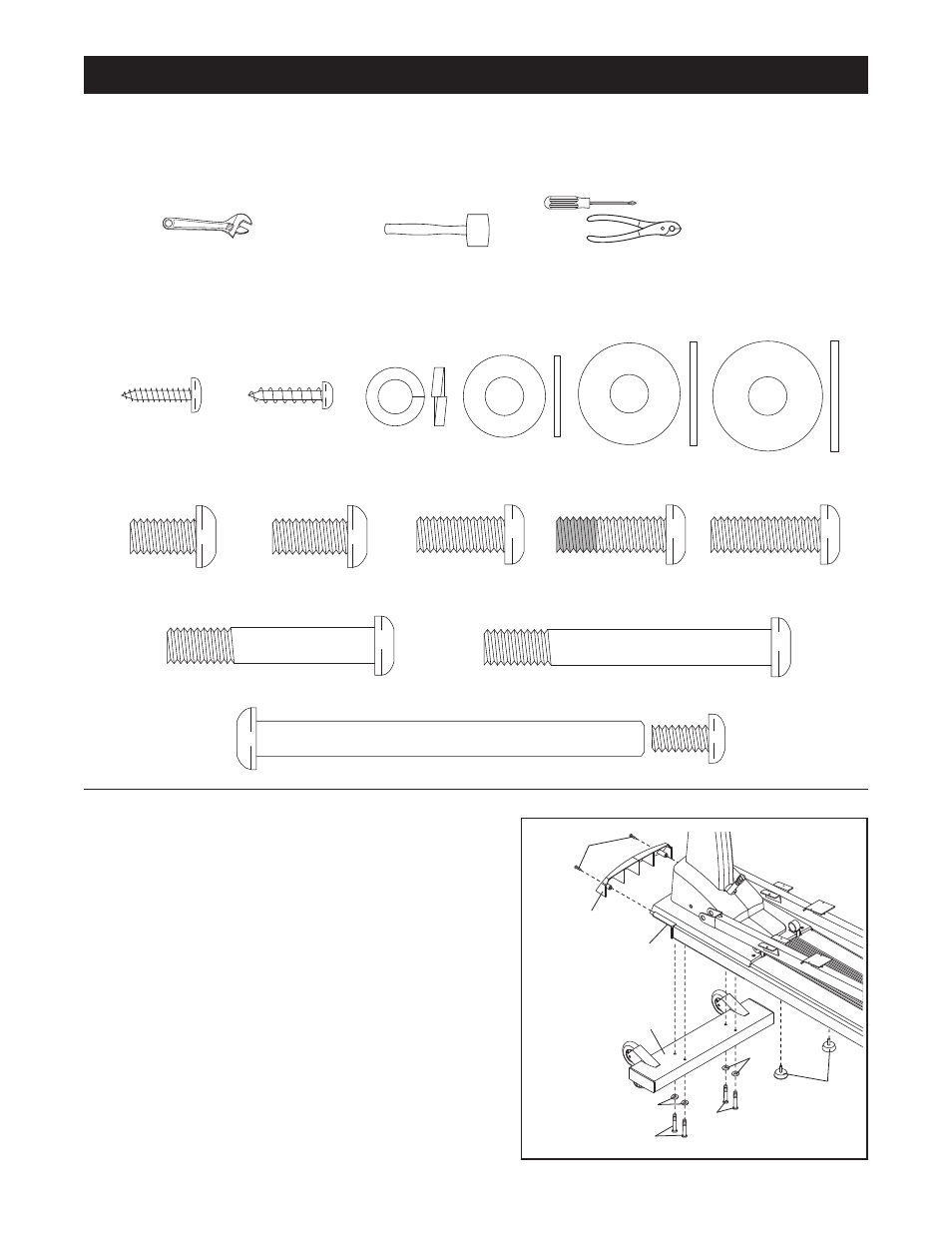

Use the drawings below to identify the small parts used for assembly. The number in parentheses below each
drawing is the key number of the part, from the PART LIST on pages 24 and 25. The number following the key
number is the quantity needed for assembly. Note: Some small parts may have been preassembled. If a part
is not in the parts bag, check to see if it has been preassembled.

M8 Split

Washer
(85)–11

M8 x 25mm

Washer (119)–2

M8 x 18mm

Washer (93)–4

M8 x 20mm Button

Screw (118)–2

M8 x 25mm Button

Screw (100)–1

M8 x 65mm Button Screw (95)–8

M8 x 47mm Button Screw (110)–2

M8 x 23mm

Washer (103)–2

Union Set (86)–2

M4 x 16mm

Screw (89)–32

M4 x 16mm Round

Head Screw (91)–6

M8 x 13mm Button

Screw (90)–8

M8 x 16mm Button

Screw (94)–4

M8 x 25mm Patch

Screw (123)–2

1. Orient the Front Stabilizer (3) as shown. Attach the

Front Stabilizer to the Frame (1) with four M8 x 65mm
Button Screws (95) and four M8 Split Washers (85).

Next, attach the Front Shield (38) to the Front
Stabilizer (3) with two M4 x 16mm Round Head
Screws (91).

Then, tighten the two Frame Cushions (106) into the
underside of the Frame (1).

106

SSEMBLY
