Ryobi AC14RL3 User Manual
Dc trimmer replacement spool
WARNING:
To reduce the risk of injury, user must read and understand the
operator’s manual for their tool. Always wear eye protection
with side shields marked to comply with ANSI Z87.1. Failure
to do so could result in objects being thrown into your eyes,
resulting in possible serious injury.

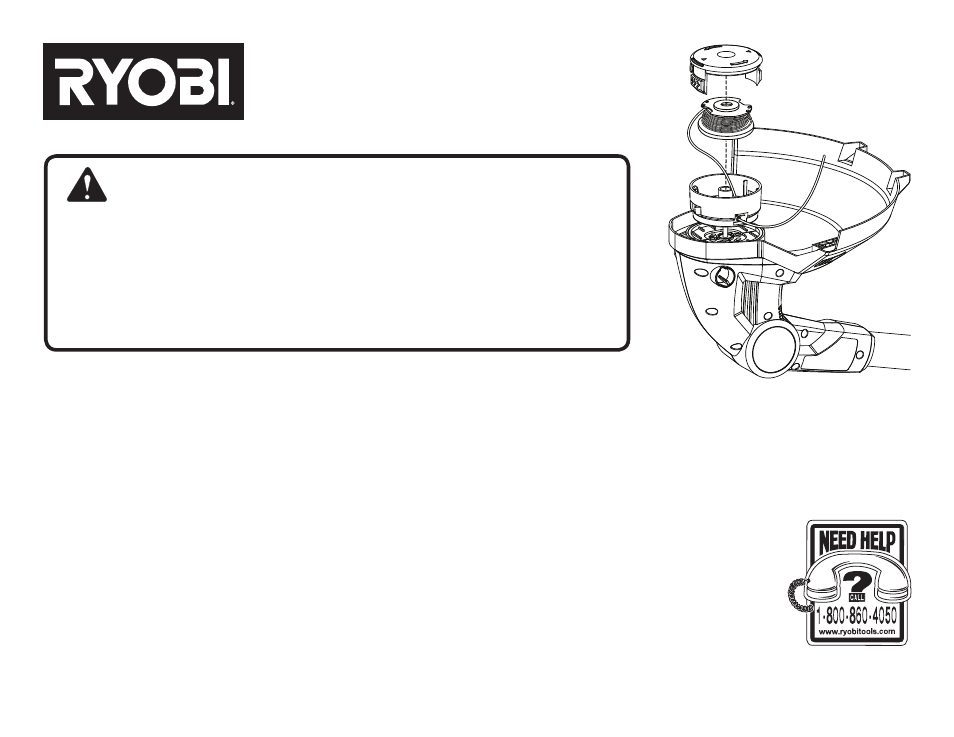

Remove the battery pack.
Push in tabs on side of spool retainer.
Pull spool retainer up to remove.
Remove the old spool.
To install the new spool, make sure the string is captured in the slot on the new spool. Make
sure the end of the string is extended approximately 6 in. beyond the slot.
Install the new spool so that the string and slot align with the eyelet in the
string head. Thread the string into the eyelet.
Pull the string extending from the string head so the string releases from the
slot in the spool.
Reinstall the spool retainer by depressing tabs into slots and pushing down
until spool retainer clicks into place.
987000-877
9-23-09 (Rev:01)
DC TRImmeR
RePLACemeNT SPOOL
AC14RL3
