39

or

Connections to other equipment

(continued)

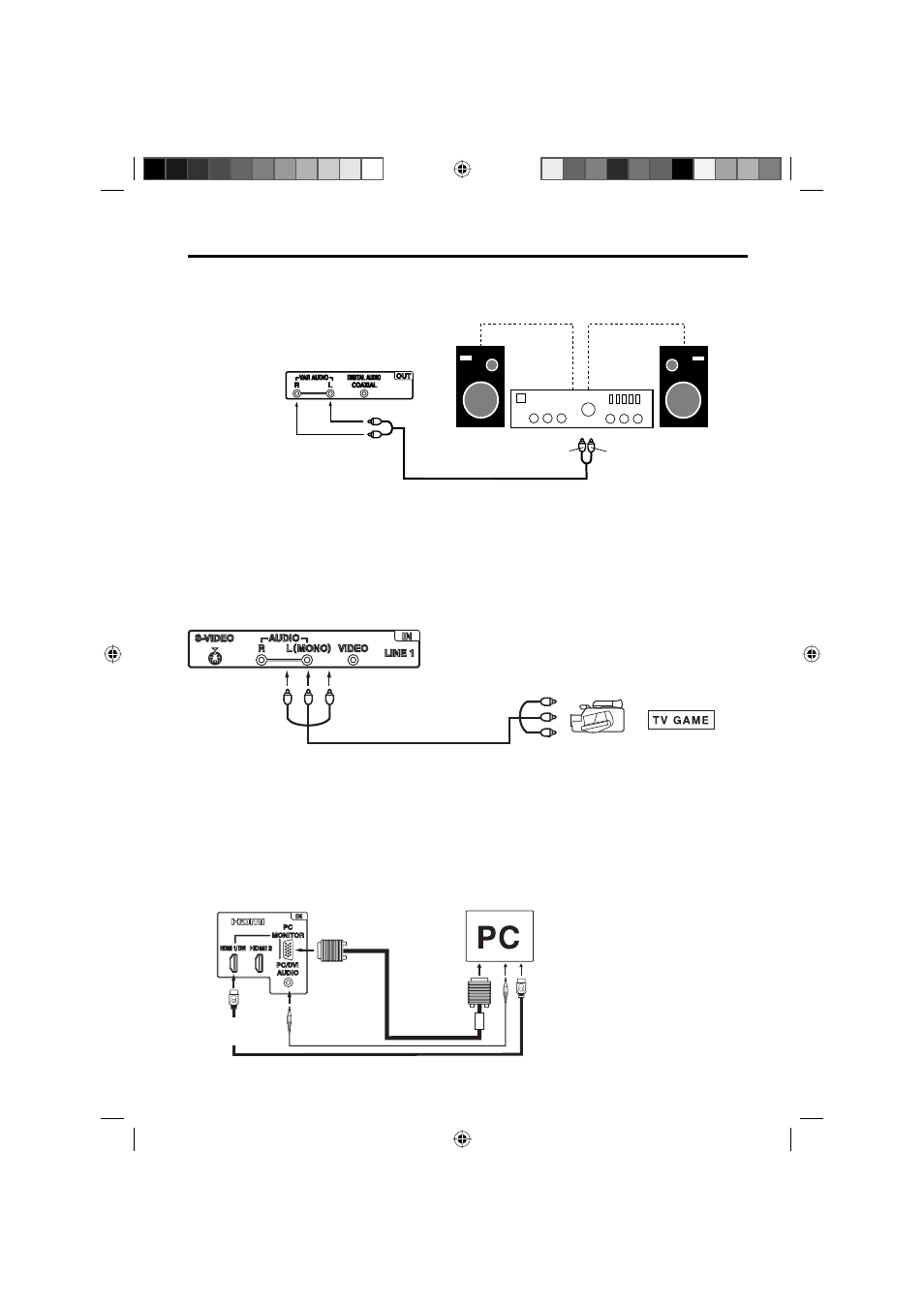

To connect the TV/DVD to a camcorder, or a TV Game

To playback from a camcorder, connect the camcorder to the unit as shown.

This unit can also be used as a display device for many video games. However, due to the wide variety of

signals generated by these devices and subsequent hook-up variations required, they have not all been

included in the suggested connection diagrams. You’ll need to consult each component’s Owner’s Manual for

additional information.

Rear of the unit

Video/Audio cord

(not supplied)

To LINE 1

VIDEO/AUDIO IN

To Video/Audio OUT

VGA cable

(not supplied)

To connect the TV/DVD to a PC (Personal Computer)

Before you connect this TV/DVD to your PC, change the adjustment of your PC’s Resolution

and Refresh rate (60 Hz).

Connect one end of a (male to male) VGA cable to the video card of the computer and the other end to the VGA

connector PC MONITOR on the rear of the TV/DVD. Attach the connectors firmly with the screws on the plug. In

case of a Multimedia computer, connect the audio cord to the audio output of your Multimedia computer and

to the AUDIO connector of the PC/DVI AUDIO IN jack of the TV/DVD. You can also connect the PC with HDMI

cable. If you use HDMI cable, you don’t have to connect the audio cord. If you use DVI-to-HDMI cable, please

connect audio cord as same way as VGA cable.

Press INPUT SELECT on the remote control to select PC mode.

Switch on the computer. The TV/DVD can operate as the computer monitor.

Monitor Display modes
MODE Resolution Refresh rate
VGA

640x480

60/ 72/ 75 Hz

VGA

720x400

70Hz

SVGA 800x600

56/ 60/ 72/ 75 Hz

XGA

1024x768 60/ 70/ 75 Hz

WXGA 1280x768 60Hz
WXGA 1280x720 60Hz
WXGA 1360x768 60Hz

To return to normal mode

Press INPUT SELECT again.

To PC/DVI

AUDIO IN

NOTE:

The on-screen displays will have a different appearance in PC mode than in TV mode.

If there is no video signal from the PC when the unit is in PC mode, “No signal” will appear on the TV-screen.

HDMI cable (not supplied)

Rear of the unit

To Audio (L) Input

To Audio (R) Input

Audio cord (not supplied)

Amplifier

Rear of the TV

To connect an audio system

This connection allows you to use an audio amplifier and external speakers, and adjust the audio level using the

TV’s remote control.

To control the audio, turn on the TV and the stereo amplifier, and turn off the TV’s built-in speakers (see “Turning

off the built-in speakers” on page 25).

NOTE:

To hear sound when using an external audio amplifier, the volume of both the TV and the amplifier must be set

above 0 (zero).

For example, if the volume of the TV is set to 0, you will not be able to hear any sound, even if the volume of the

amplifier is at its highest level.

Audio cord

(not supplied)

To PC

MONITOR IN

To HDMI1/

DVI IN

To VAR (VARIABLE)

AUDIO OUT
