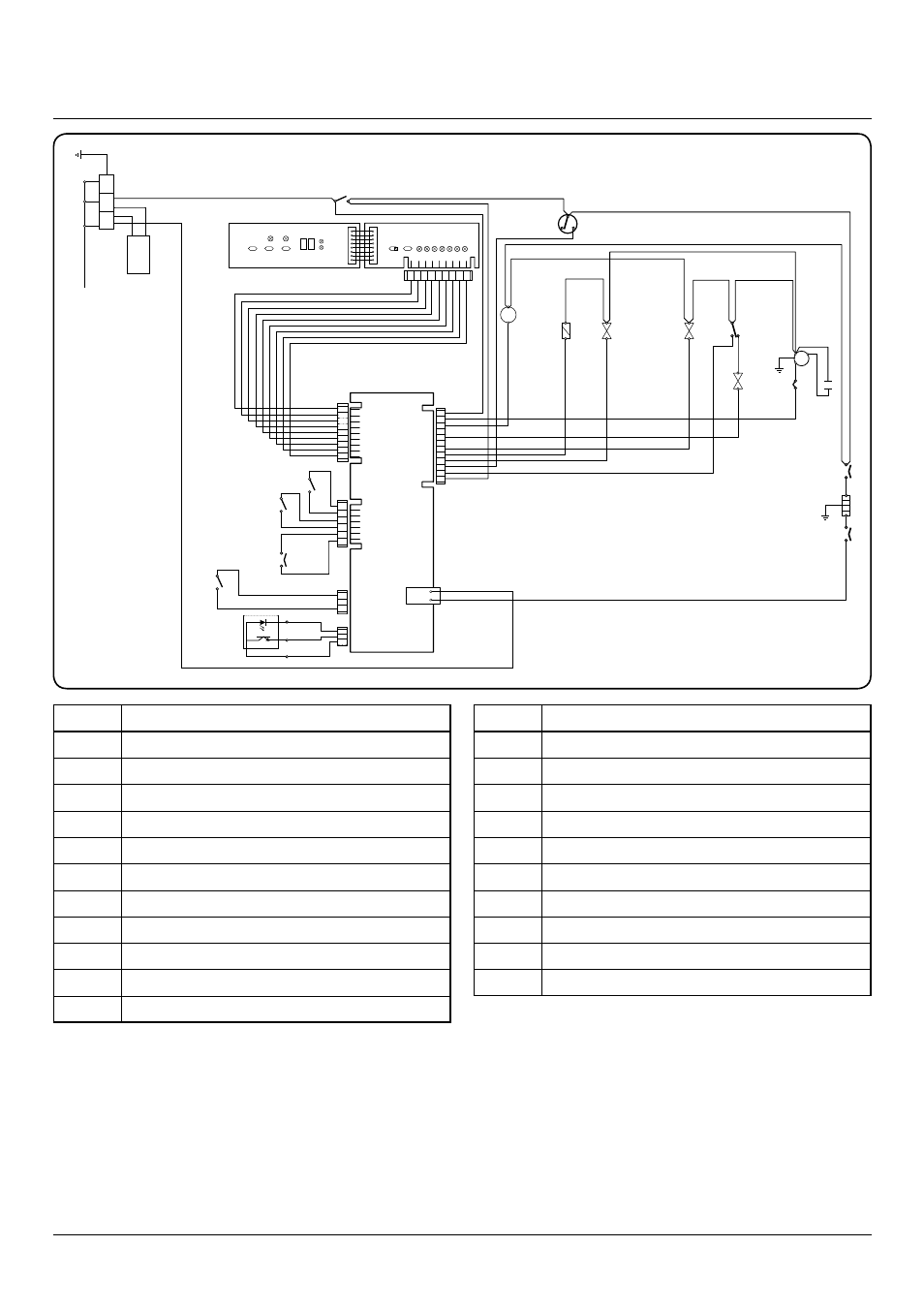

7. Circuit Diagram
ArtNo.800-702 - RDW6015 - circuit diagram
N
L
1
2
3
4
5
6
7
8
9
12
11
10
9
8
7
6
5
4
3
2
1
6
5
4
3
2
1
CnP1
CnP3
CnP2
CnL1
1
3
2
220 - 240V 50Hz
�
�
�
�
�
�
�
�
�
�
�
�
�
�
�
�
�
�
�
�
�
Code
Description
A
Wiring box
B
Door switch
C
Water level switch
D
Display panel
E
Drain pump
F
Dispenser valve
G
Single layer valve
H
Softener valve
I
Overflow switch
J
Inlet valve
K
Washing pump
Code
Description
L
Temperature limiter
M
Heating element
N
Temperature limiter
O
Rinsing agent missing switch
P
Salt missing switch
Q
Temperature sensor
R
Flowmeter
S
Turbidity sensor
T
Control panel
U
Heater relay
DocNo.800-0702 - Circuit diagram - RDW6015 dishwasher
