ELECTRICAL CONNECTION
• Connect the hood to the mains through a two-pole switch hav-
ing a contact gap of at least 3 mm.
• Remove the grease filters (see paragraph Maintenance) being
sure that the connector of the feeding cable is correctly inserted
in the socket placed on the side of the fan.

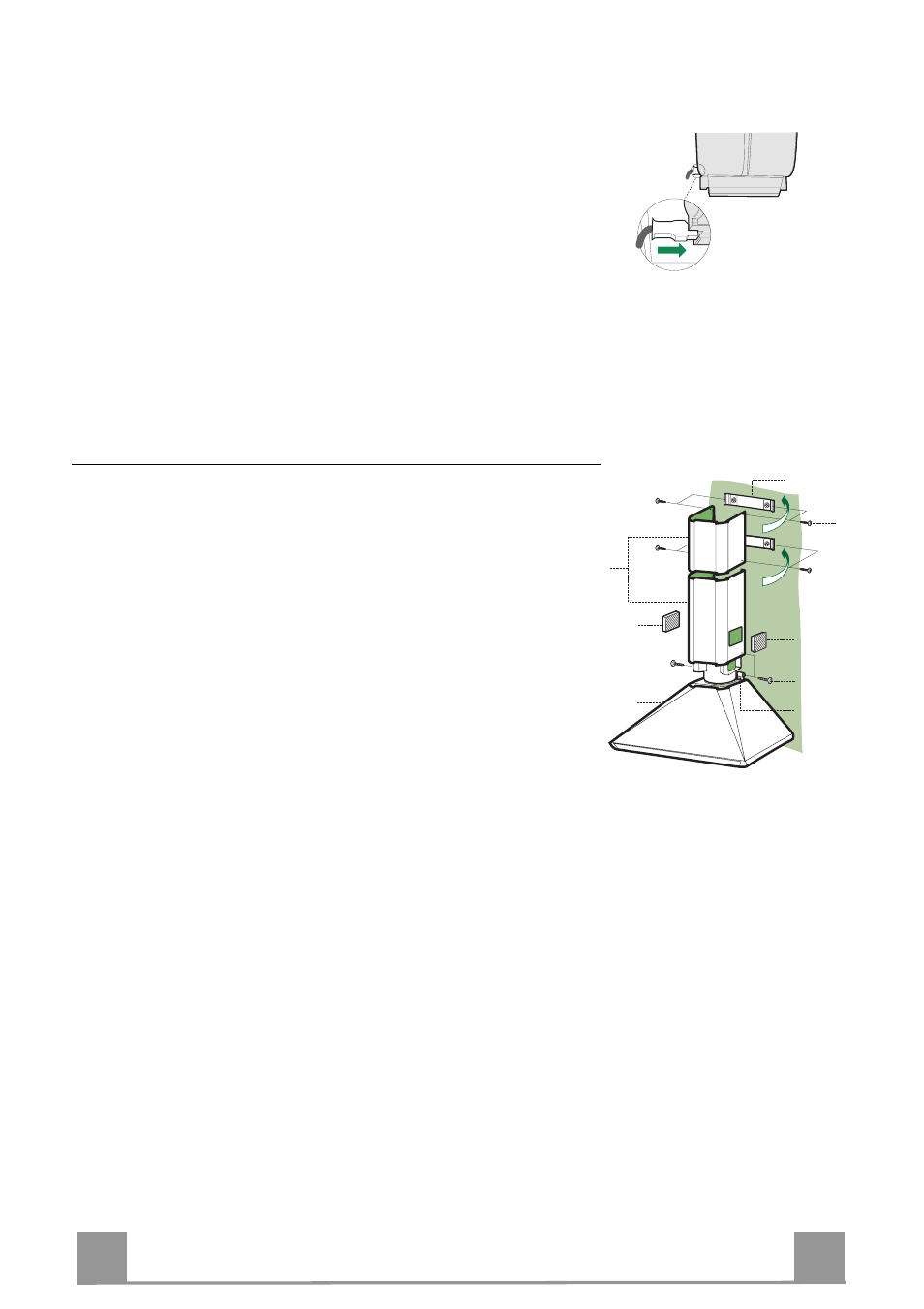

Chimney assembly
Upper chimney section
• Slightly widen the two sides of the upper chimney and hook
them behind the brackets 7.2.1, making sure that they are prop-
erly housed.
• Secure the sides to the brackets using the 4 screws 12e (2,9 x
9,5) supplied.
Lower exhaust flue
• Insert the lower flue fixing bush 17 in the top of the hood body
and rotate it 90° clockwise as far as it will go.
• Slightly widen the two sides of the chimney and hook them
between the upper chimney section and the wall, making sure
that they are properly housed.
• Secure the sides of the bottom section to the bushes provided
using the 2 screws 12c (2,9 x 9,5) supplied.
• On the recirculation version, fit the directional grids 8a – 8b in
their housings making sure that the directional symbols are to-
wards the top and front of the hood. Also make sure that they
are correctly inserted in the outlet connection piece 15.
1
12e
17
8b
2.1
2.2
2
8a
7.2.1
12e
