7

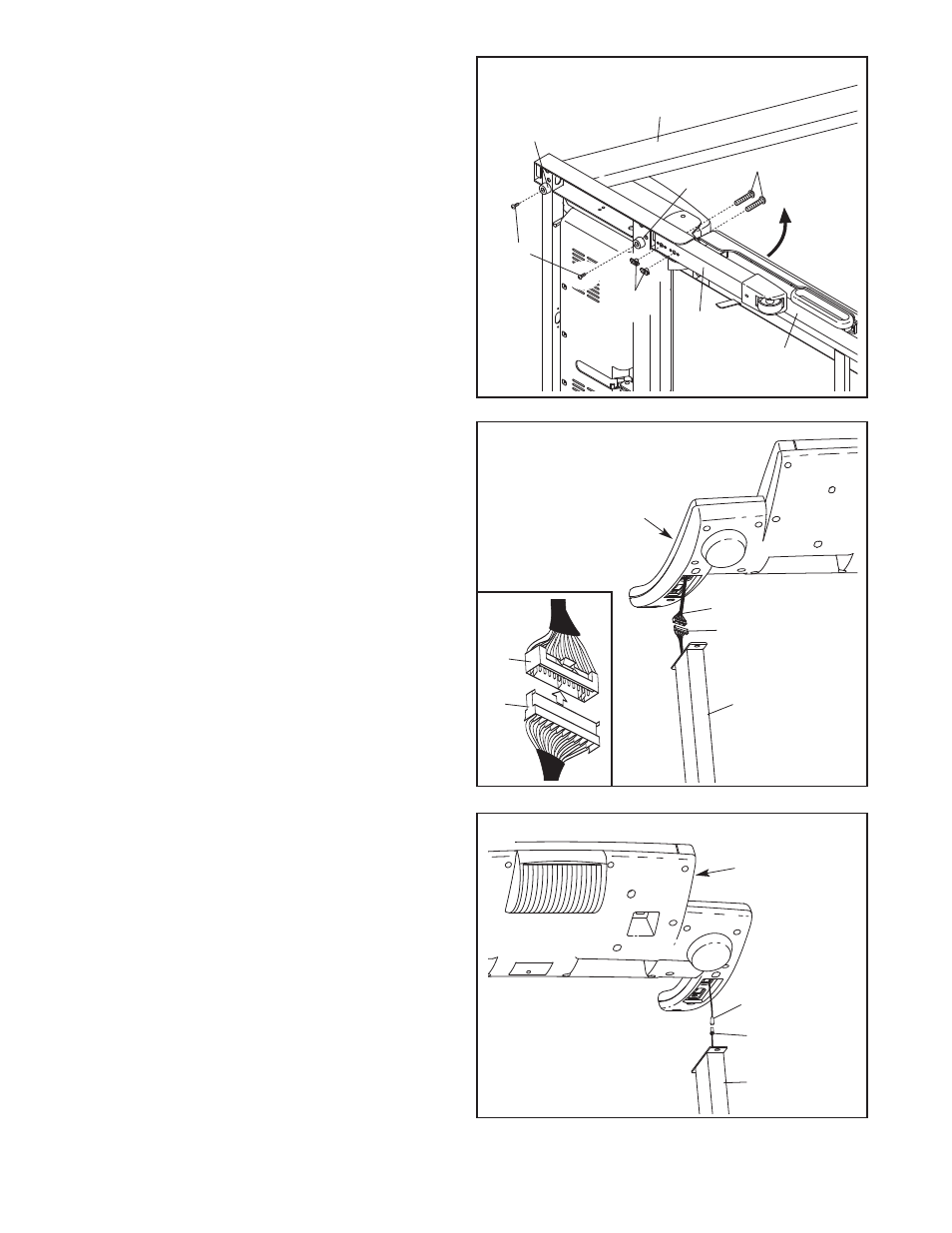

2. With the help of a second person, carefully tip
the treadmill onto its other side. Partially fold the
Frame (58) so the treadmill is more stable.
Do
not fully fold the treadmill until it is com-
pletely assembled.
Attach two Base Pads (82) to the base of the
Uprights (84) with two 1” Tek Screws (83) as
shown.
Insert the other Extension Leg (89) into the base
of the Uprights (84) as shown. Hold two
Extension Leg Nuts (67) in the bottom of the
Extension Leg. Next, insert two Extension Leg
Bolts (65) into the top of the Extension Leg, and
firmly tighten the Extension Leg Bolts into the
Extension Leg Nuts.
2
3. With the help of a second person, carefully raise
the Uprights (84) to a vertical position.
Have the second person hold the console as-
sembly near the Uprights (84) as shown. Look
under the console assembly and locate the con-
sole wire.
Remove the band securing the Wire Harness
(77) to the right Upright (84). Next, connect the
Wire Harness to the Console Wire (66).
See the
inset drawing. The connectors should slide
together easily and snap into place. If the con-
nectors do not slide together easily and snap
into place, turn one connector and then try again.
IF THE CONNECTORS ARE NOT CON-
NECTED PROPERLY, THE CONSOLE MAY
BE DAMAGED WHEN THE POWER IS
TURNED ON.
3
89
58
82
82
84
83
65
67
84
77
66
Console
Assembly
77
66
4. Look under the console assembly and locate the
TV cable.
Remove the band securing the Upright TV Cable
(104) to the left Upright (84). Connect the
Upright TV Cable to the TV cable on the console
assembly.
84
104
TV Cable
Console
Assembly
4
