Wireless N Adapter RNX-N250PC User Manual
6. Click "Apply". This Station will now be store in the list
like Figure7-4. You can also remove the stored data by
select and click “Tear Down” like Figure 7-5.

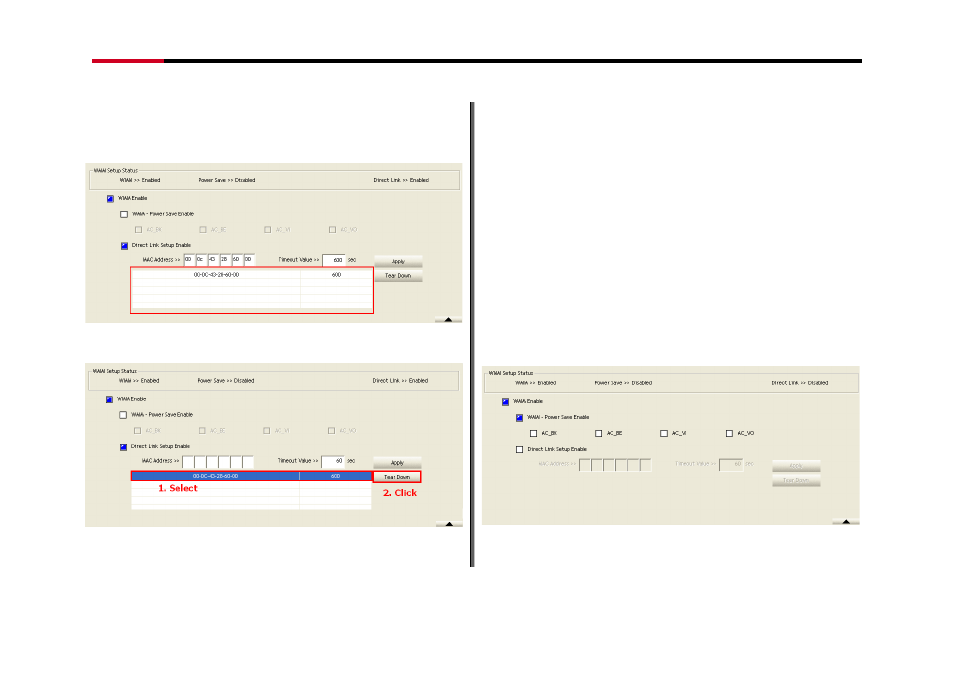

Figure 7-4
Figure 7-5
7.1.2 Example to Enable WMM – Power Save Enable
1. Click "WMM-Power Save Enable" to enable this option
2. Select the AC type you want to enable:
 AC_BK: High throughput. Bulk data that requires
maximum throughput and is not time-sensitive is
sent to this queue (FTP data, for example).
 AC_BE: Medium throughput and delay. Most
traditional IP data is sent to this queue
 AC_VI: Minimum delay. Time-sensitive video data
is automatically sent to this queue
 AC_VO: Time-sensitive data like VoIP and
streaming media are automatically sent to this
queue
Figure 7-6
- 38 -
