3. SETUP GUIDE
2. Connect SMA cable to tranmitter (via "RF IN:).
3. Connect Power adapter(120VAC / 12VDC 500mA) to DC JACK

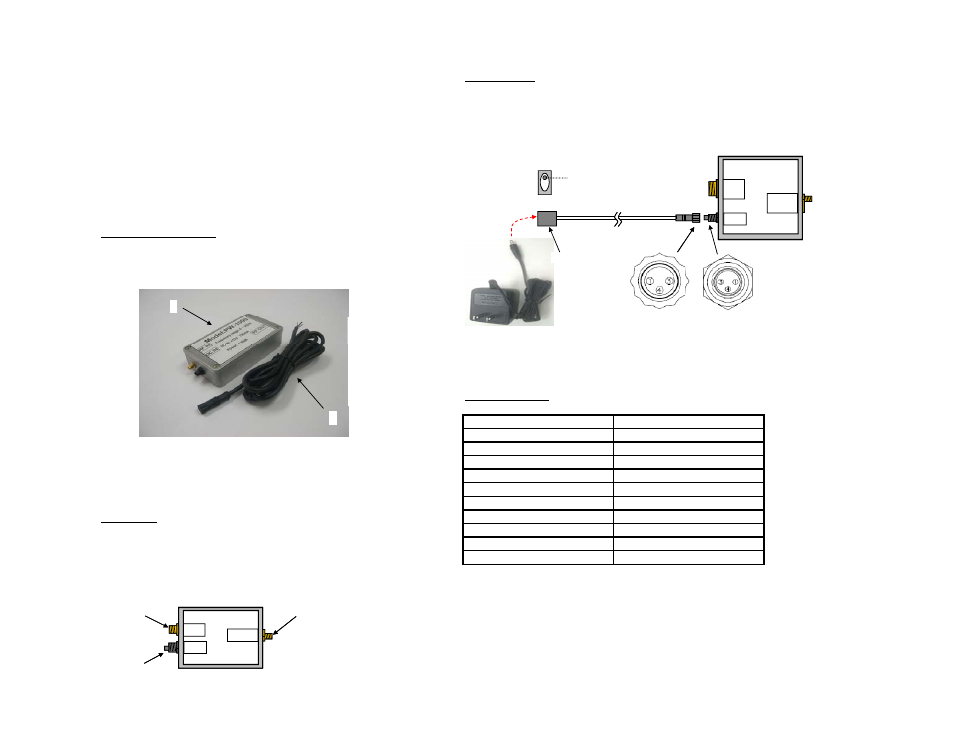

QUICK INSTALL GUIDE
Model: APW-1000
5.8GHz Outdoor RF Power Amplifier
1. PACKAGE CONTENTS：
Make sure that all units shown as below are enclosed,
please contact your dealer if anything is missing.
1. Connect transmitter antenna to APW-1000 (via "RF OUT).
Model: APW-1000
RF IN
RF OUT
DC IN
RF Singnal
to Antenna
RF Singnal from
Transmitter
RF-Link
www.rflinkusa.com
Model: APW-1000
RF IN
RF OUT
DC IN
RF Singnal
to Antenna
RF Singnal from
Transmitter
1
+
DC JACK
4. SPECIFICATION :
Operating frequency range 5.0---6.0 GHz
P1dB 26 dBm
1. -- APW-1000 Outdoor RF Amplifier *1 Power gain 18 dB typical
2. -- Waterproof Power Cable( 2 m) *1 Match impedance 50 Ohm
3. -- Cable (SMA male, 25") *1 Input VSWR 2:1
4. -- Power adapter (input: 120V DC, 60Hz, 9.7W output: 12V DC, 500mA) *1 Supply voltage +12 ~ +28 VDC
Supply current < 380 mA
2. FUNCTION Dimension 125 mm * 80 mm * 40 mm
Operating temperature -20 to +65 Ԩ
1 -- SMA FEMALE ;RF Signal Input Storage temperature -40 to +85 Ԩ
2 -- DC power input ,connect to power supply (12V~28V) Waterproof Rate IP 65
3 -- SMA FEMALE ;RF Signal Output
NOTE:
1. Keep the coaxial cable between the APW-1000 and Transmitter as short as possible.
2. Keep the coaxial cable between the APW-1000 and Antenna as short as possible.
3. Make certain all connections are tight.
4. Make certain all screws has locked on the cover.
1 3
2
Model:APW-1000
RF IN
RF OUT
DC IN
2
1 3
2
Model:APW-1000
RF IN
RF OUT
DC IN
