Please refer to the front and rear panel views on page 4.
SWITCHING ON
The Mains power switch (9) is located on the rear panel of the amplifier. This switch should be left ON for normal
operation. If unattended for a long period, the Mains power should be switched OFF and the lead disconnected
from the power supply.
When switched ON from the rear panel, your Kandy Power Amplifier will go to Operational mode and the MODE
indicator light (1) on the front will glow RED. The amplifier is now ready for use.
1
If there is no signal (or the signal level is very low) the MODE indicator light will change to AMBER after
approximately 2 minutes
2 If there is still no signal after approximately 15 minutes, the amplifier will revert to Standby mode and the
MODE indicator light will glow GREEN
3 As soon as there is a signal the Kandy Power Amplifier will ‘wake up’, the MODE indicator light will glow
RED and after a couple of seconds the outputs will be activated.
USING THE TRIMMERS
Please refer to the rear panel views on page 4.

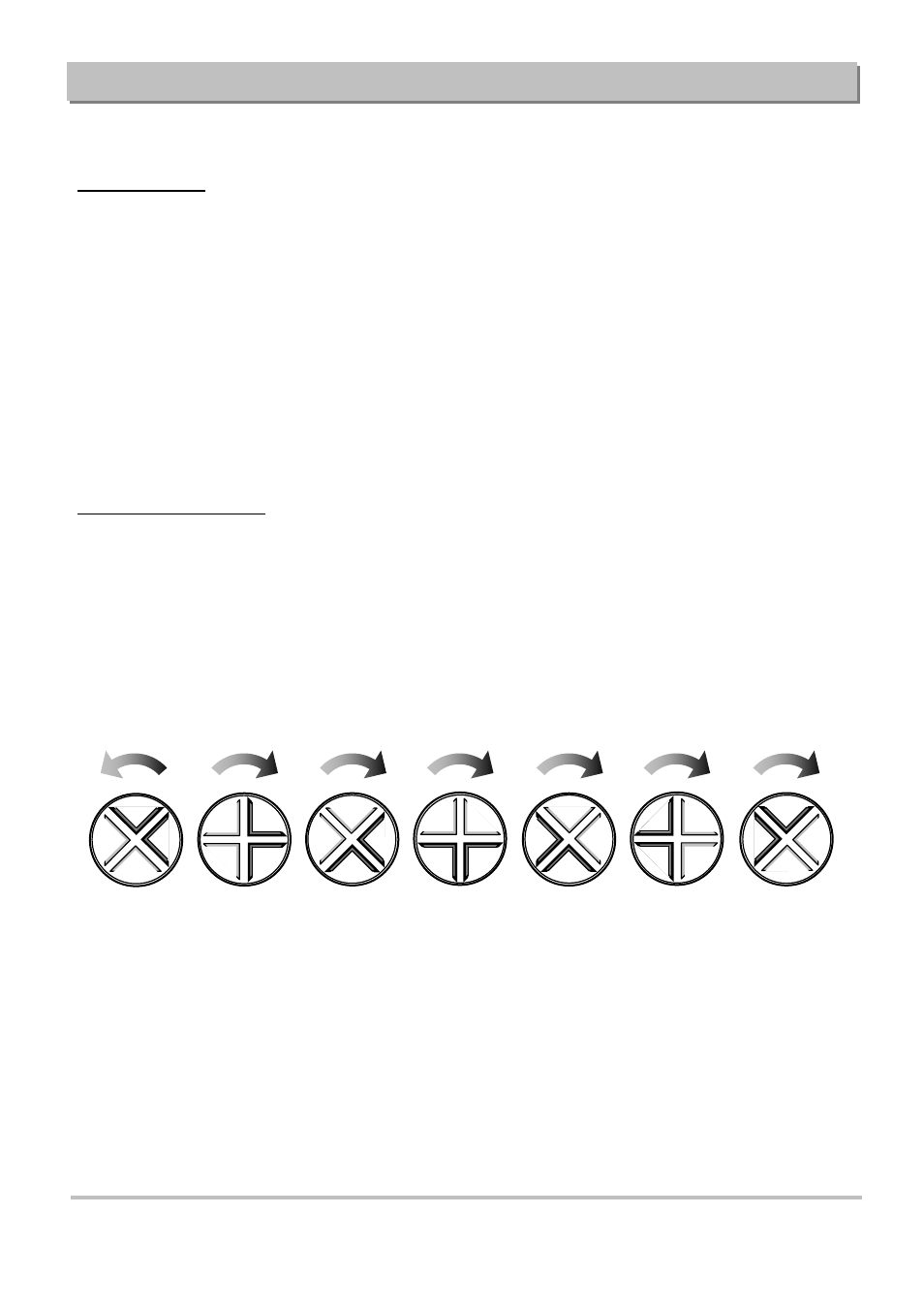

There are two Trimmers (1 & 2), accessible from the back panel, that can be utilised to reduce the input level to
the individual channels and thus reduce the output level. In this configuration the input signal to that channel
must be connected to its Trimmed Input socket only (not the Straight Input) and the selector switch must be set
to Trimmed. When connected as such the gain on that channel can be reduced as indicated below.
NOTE: To avoid damage to the trim pots always use a good quality flat blade electrical trimmer.
NOTE: These values and positions are approximate and should be used as a guide. During the installation and
set-up, you should adjust the trimmer to achieve the desired output level.
O P E R A T I O N K a n d y Power Amplifier 2 Channel
Fully Anti-
clockwise
1/8 Turn
clockwise
Fully
clockwise
1/4 Turn
clockwise
3/8 Turn
clockwise
1/2 Turn
clockwise
5/8 Turn
clockwise
Full Gain
31.6 dB
Trimmed
30.4 dB
Full Trim
Full Mute
Trimmed
28.2dB
Trimmed
25.2dB
Trimmed
20.2 dB
Trimmed
12.2 dB
