Page 2
201
June 2007 Regency Product Specifi cations Book
Wood Stoves
W
ood Sto
v
es
Residential Close Clearance
(To be installed with required pipe components)
When the stove is installed as a close clearance residential unit, a listed double wall connector is required
from the stove collar to the ceiling level.
Unit
From Unit
From Corner
From Vent
centerline
F1100
A B
C D
E F
with Airmate
9” 5”
3” 21”
11.5” 15”
with Rear Defl ector
13.5” 5”
5” 25.5”
11.5” 17”
Mobile Home Close Clearance
(To be installed with required pipe components)
“C” Vent single wall pipe is not approved for Mobile Home installations. (Refer to mobile home instructions.)
Unit
From Unit
From Corner
From Vent
centerline
F1100
A B
C D
E F
with Airmate
11” 6”
6” 23”
12.5” 18”
with Rear Defl ector
13” 5”
9” 25”
11.5” 21”
Unit
From Unit
From Vent
centerline
Min.
Width
Min. Hearth
to Rear Wall
F1100
G H
I J
K
L
with Airmate
11” 7”
23” 13.5” 46”
39”
with Rear Defl ector
13” 5”
25” 11.5”
50”
37”

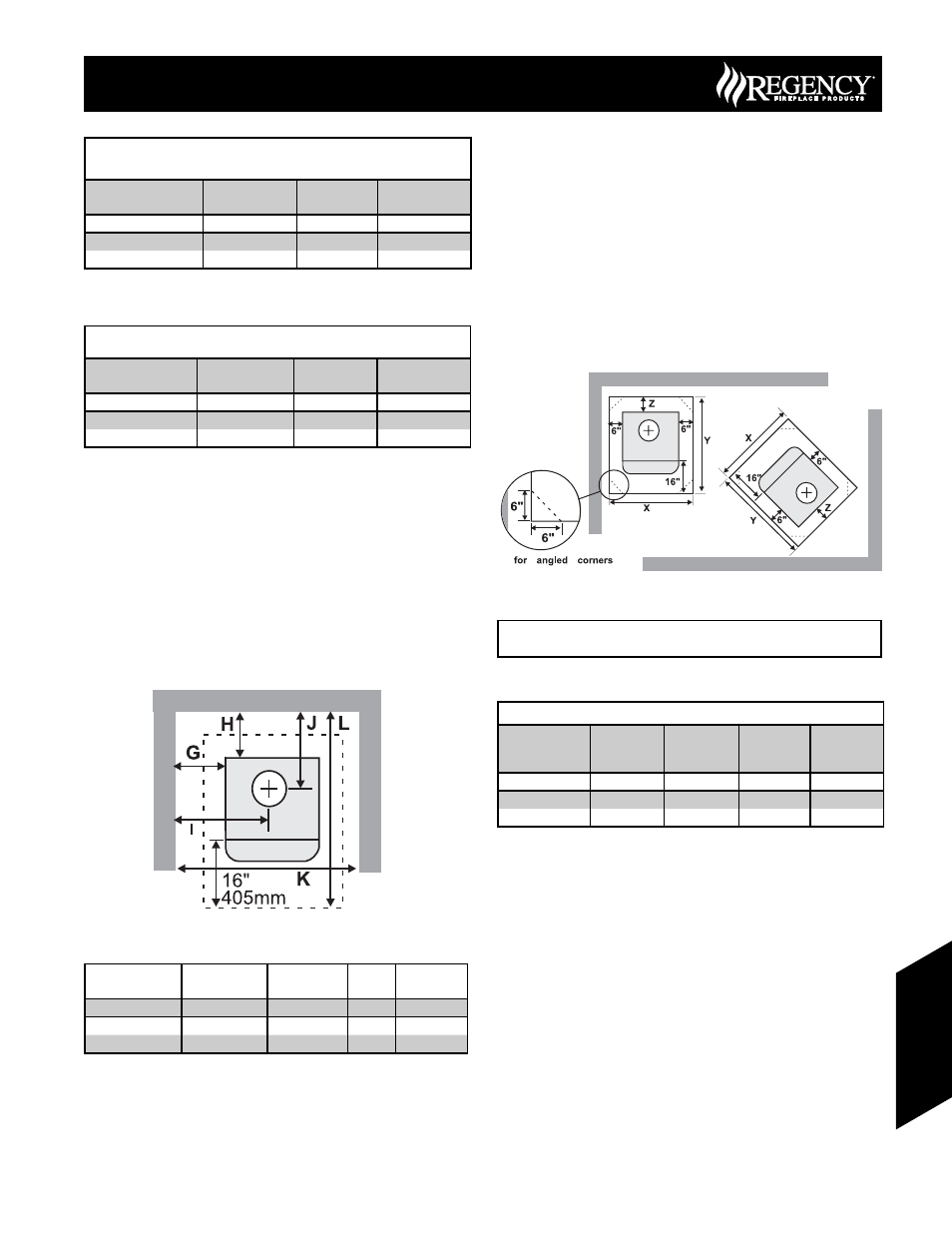

Minimum Alcove Clearance To
Combustible Materials
Regency Freestanding models have been alcove approved and must be
installed with a listed double wall connector to the ceiling level.
Note: Minimum alcove ceiling height - 84"
Maximum depth of alcove - 36"
*The rear clearance to combustibles is less than 6" (152mm), for corner
installations the rear corners may be angled to take advantage of the
closer clearances.
NOTE: In Canada, fl oor protection must extend 18" to the front
and 8" to each side of the stove.
Floor Protection
A combustible fl oor must be protected by a non-combustible material
(like tile, concrete board, or certifi ed to UL-1618 or as defi ned by local
codes) extending beneath the heater and a minimum of 6" from each
side and minimum 16" from the front face of the stove and minimum 6"
(or the rear clearance to combustibles whichever is smaller) from the
rear of the stove.
Minimum Overall Width (X) of Floor
Protector for all installations:
Small Stove
F1100S
36"
Minimum Overall Depth (Y) of Floor Protector
Unit
Residential
“C” Vent
Residential
Close
Clearance
Mobile
Home Close
Clearance
Alcove
F1100
Y Z
Y Z
Y Z
Y Z
with Airmate
38” 6”
37”* 5”
38” 6”
38” 6”
with Rear Defl ector
38” 6”
37”* 5”
37”* 5”
37”* 5”
F1100 Wood Stove
