PAGE 17 CONNECTIONS
Connecting to Optional Equipment
Front L Front R Rear L Rear R Woofer Center
Front speaker
(Left)
Front speaker
(Right)
Sub woofer
AV Amplifier
with 5.1CH Input

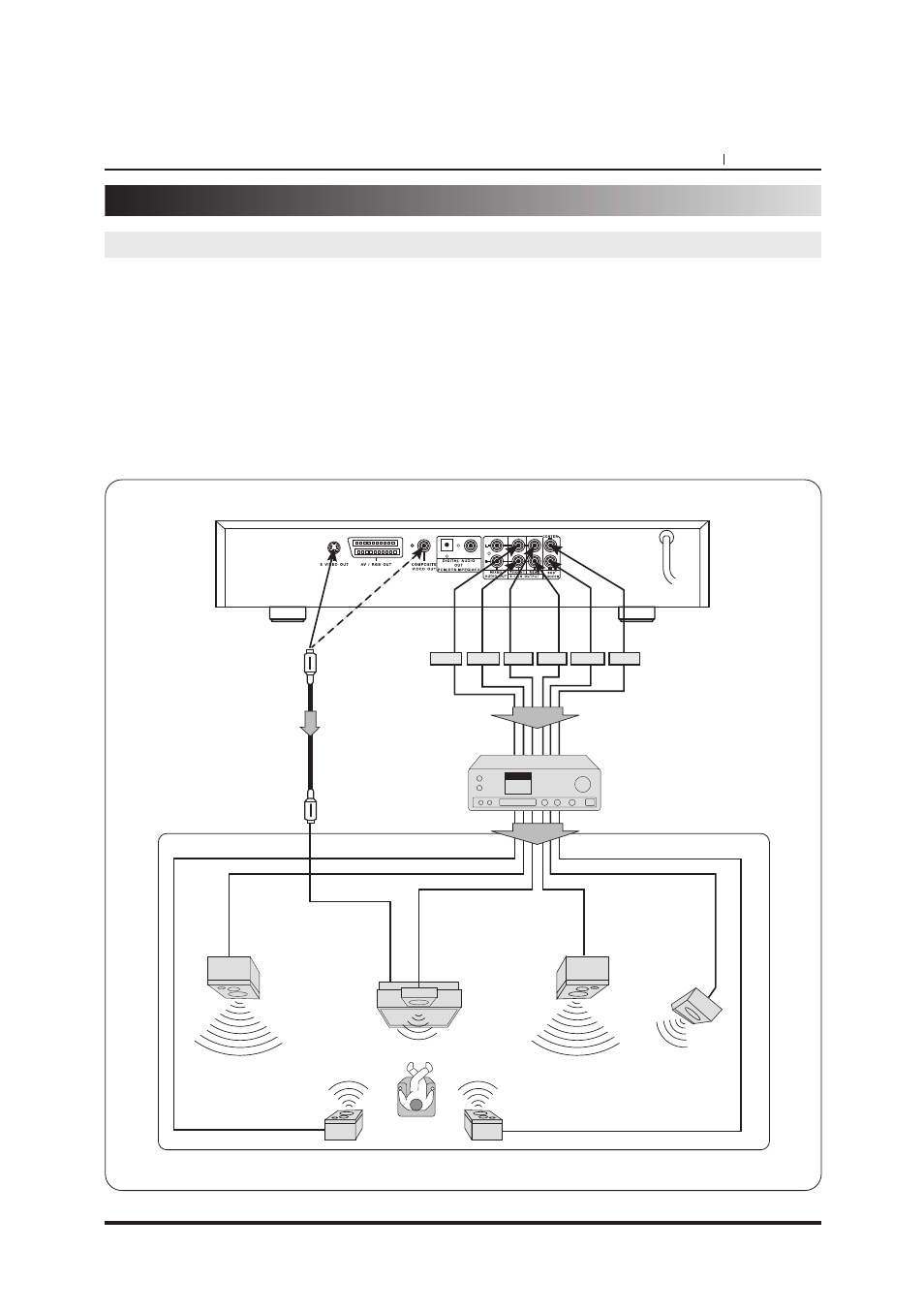

Connection example
Rear speaker
(Right surround) Rear speaker
(Left surround)
Center
speaker
To 5.1CH Input
TV
To S-Video Input
or Video Input
S-Video cable
or Video cable
To S-Video out
or Video out
Dolby Digital Surround (5.1 CH)
Dolby Digital (AC-3) is a six-channel digital surround sound technology developed by Dolby Laboratories for
theater-like surround sound reproduction. DVDs supporting Dolby Digital (AC-3) technology feature the
logo. You can enjoy realistic, theater-like surround sound from DVD movie or music disc featuring this logo. Two
front, one center and two rear speakers plus a subwoofer make up the “5.1-channel” audio system that Dolby
Digital (AC-3) uses.
Hook-ups
Connect an amplifier with 5.1 channel inputs to the player and to the speakers. See the figure below.
Note :
Make sure that the setting of speaker output in Initial Setup is Multichannel. (Refer to page 34)
Enjoying Dolby Digital (5.1 CH) Sound
