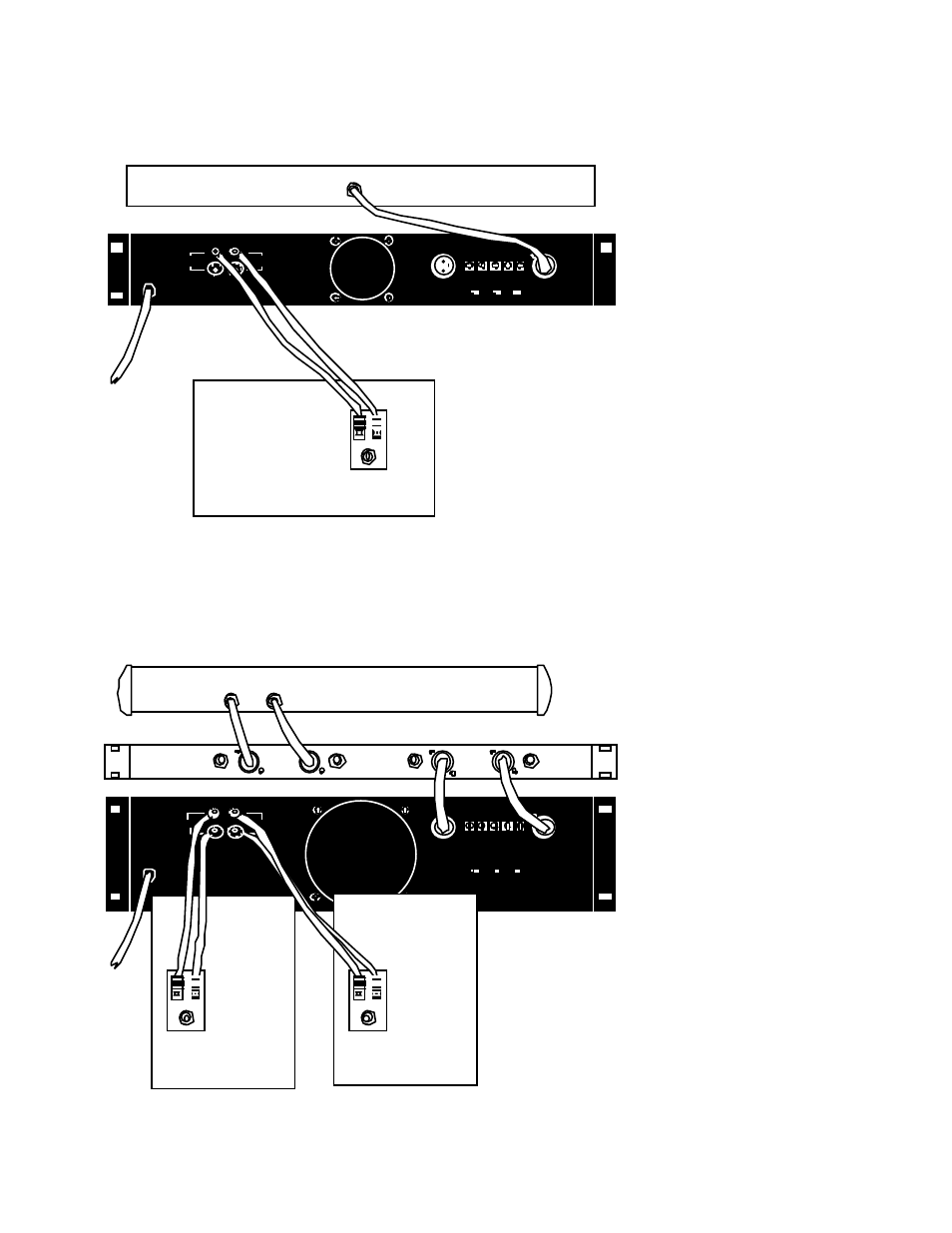

Hook up #3
Monitor Amplifier (in bridged mono)
Zone/Booth send
AMPLIFIER OUTPUTS
+
-
AMPLIFIER INPUTS
+ - - +
GND
CH-2
CH-1
CH-2
CH-1
monitor speaker
Numark amplifier
mixer
power
CH-2
CH-1
Hook up #4
Stereo PA System
AMPLIFIER OUTPUTS
+
-
AMPLIFIER INPUTS
+ - - +
GND
CH-2
CH-1
CH-2
CH-1
inputs
outputs
outputs
speakers
Numark amplifier
compressor or equalizer
mixer
power
CH-2
CH-1
