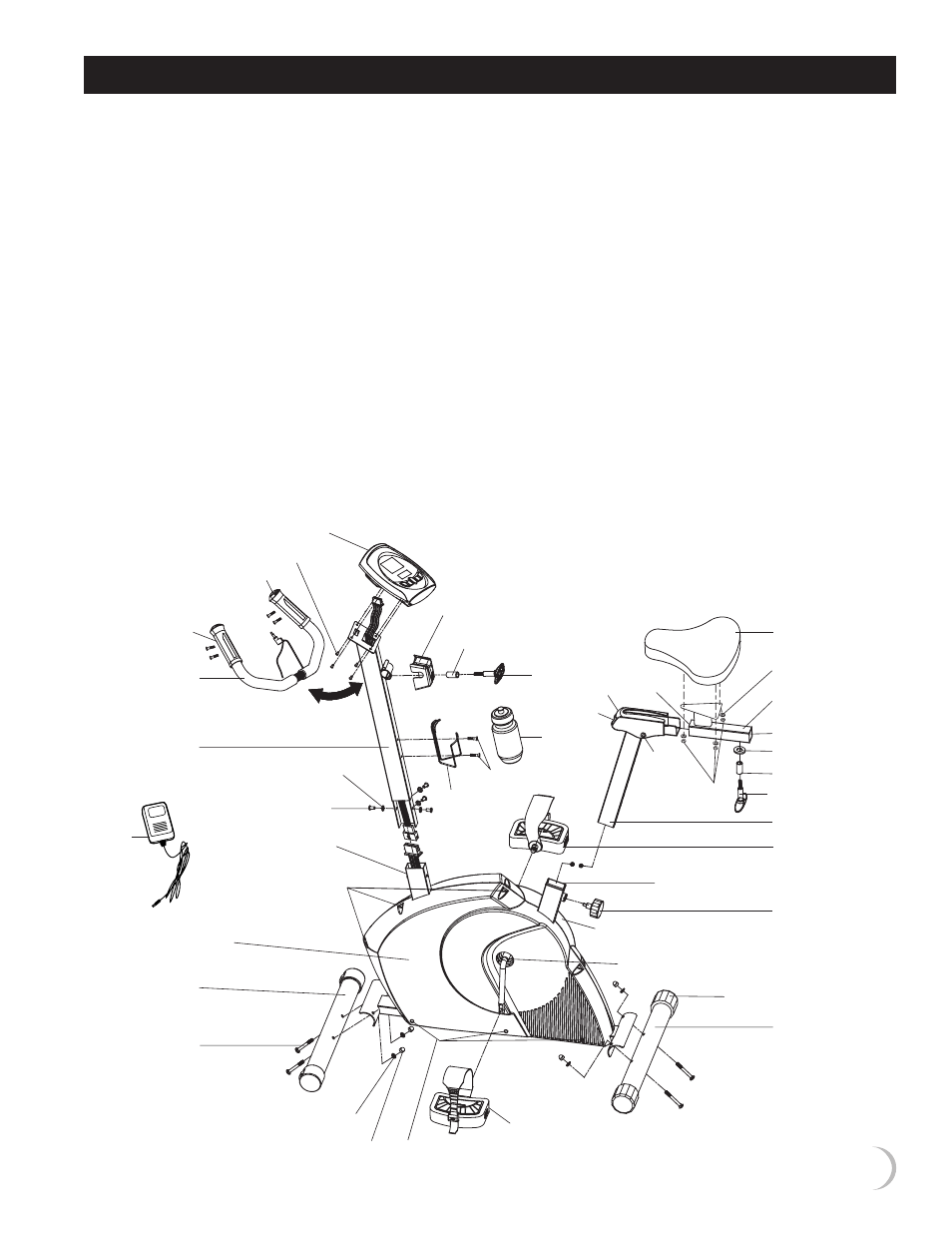

EXPLODED VIEW & PARTS LIST
PART NO.
DESCRIPTION
QTY.
NB5100-01
computer (1)
1
NB5100-02
top pulse sensor w/wire (2)
2
NB5100-03
bottom pulse sensor (3)
2
NB5100-04
M3 x 20mm phillips bolt (4)
2
NB5100-05
handlebar (5)
1
NB5100-07
M5 x 14mm phillips bolt (7)
4
NB5100-14
M8 washer (14)
5
NB5100-15
M8 x 20mm allen bolt (15)
4
NB5100-18
front foot tube w/wheels (18)
1
NB5100-19
M8 x 70mm carriage bolt (19)
4
NB5100-23L
left shroud (23L)
1
NB5100-23R
right shroud (23R)
1
NB5100-24
M4 x 19mm phillips bolt (24)
4
NB5100-25
M4 x 25mm phillips bolt (25)
6
NB5100-26
crank cover (26)
2
NB5100-27L
left pedal w/strap (27L)
1
NB5100-27R
right pedal w/strap (27R)
1
NB5100-28
computer tube cover (28)
1
NB5100-29
long sleeve (29)
1
NB5100-30
T-knob (30)
2
NB5100-31
computer tube w/wire (31)
1
45
72
71
70
14
62
61
27R
53
58
59
30
32
33
34
30
29
28
1
7
3
4
2
4
5
31
14
15
24
54
23L
69
18
19
56
55
27L
23R
25
60
26
33
73
48
46
46
PART NO.
DESCRIPTION
QTY.
NB5100-32
water bottle (32)
1
NB5100-33
M5 x 16mm phillips bolt (33)
4
NB5100-34
holder w/clip (34)
1
NB5100-45
seat (45)
1
NB5100-46
square plug (46)
2
NB5100-48
M4 x 13mm phillips bolt (48)
3
NB5100-53
height adjustment knob (53)
1
NB5100-54
main frame assembly (54)
1
NB5100-55
M8 acorn nut (55)
4
NB5100-56
M8 curved washer (56)
4
NB5100-58
rear foot tube w/levelers (58)
1
NB5100-59
leveler (59)
2
NB5100-60
bushing (60)
1
NB5100-61
seat post (61)
1
NB5100-62
short sleeve (62)
1
NB5100-66
allen wrench (66)
1
NB5100-67
multi open end wrench (67)
1
NB5100-68
multi "T" tool w/phillips screwdriver (68)
1
NB5100-69
AC adapter (69)
1
NB5100-70
M8 nylon nut - silver (70)
3
NB5100-71
M8 washer - silver (71)
3
NB5100-72
seat post slider (72)
1
NB5100-73
seat post cover (73)
1
NB5100-FP
fastener pack (FP)
1
NB5100-OM
owner’s manual (OM)
1
NB5100-MC
master carton (MC)
1
