Napoleon Fireplaces BGNV42P - Manual (Page 8)

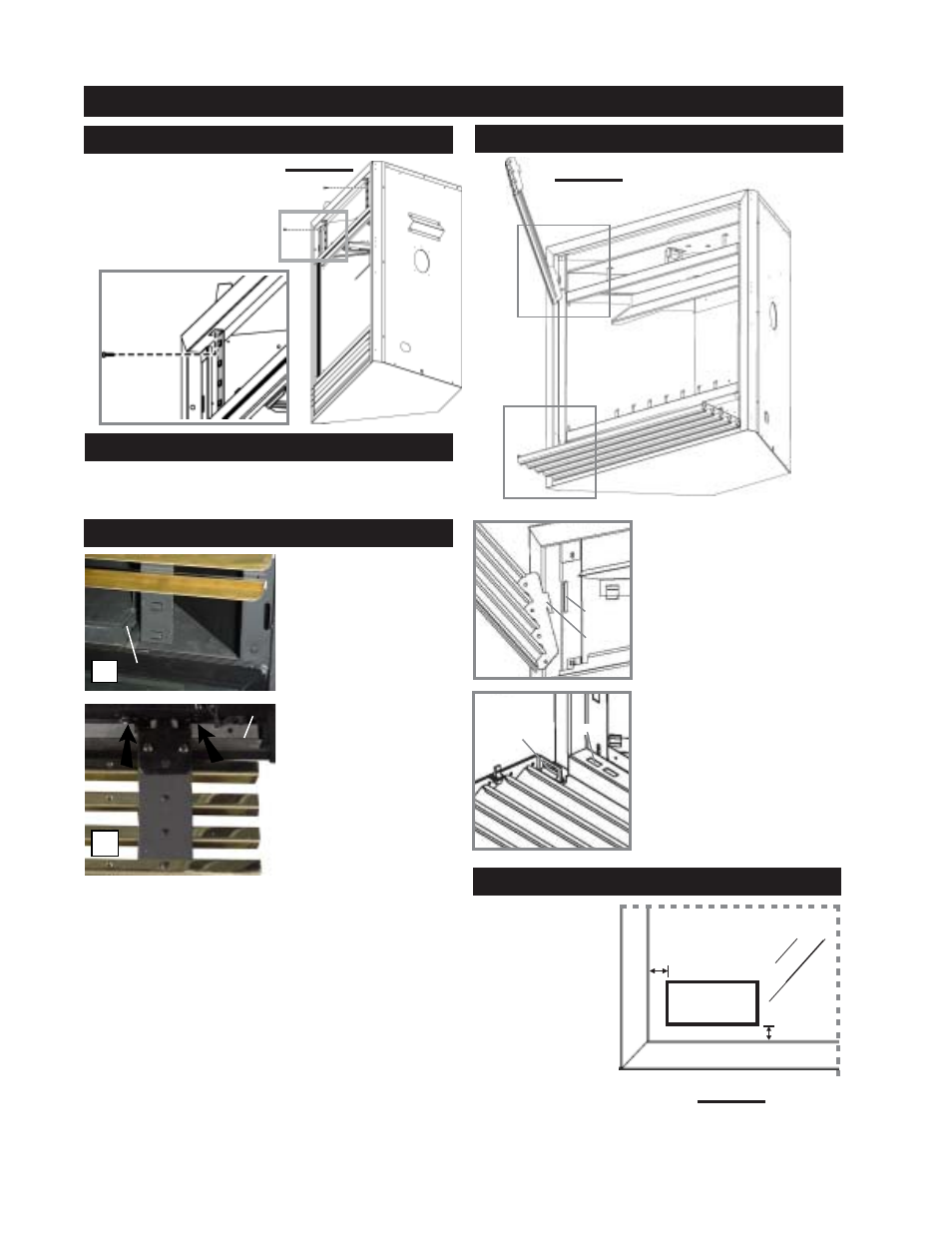

8
W415-0377 / 03.04.03
The upper louvres must be removed to allow the door to be
removed. Release the two door latches, located across
the top of the door and lift off the lower door bracket.
Insert the upper louvres into
the slots on both brackets.
Attach each hinge on the
lower louvre assembly to
the lip of the fireplace base
with 2 screws.
Position the hinge screen
into place and with the con-
trol door open, secure to the
fireplace using three
screws. HINGE SCREEN
16
15 DOOR LATCH
UPPER LOUVRE
FIGURE 17
UPPER LOUVRES
Insert the louvre tabs into the
slots located at the top left and
right corners of the unit.
S L O T
TA B
A
LOWER LOUVRES
Insert the hinge clips into the
slots located at the bottom left
and right corners of the unit.
To remove the louvres, pull the
back tabs of the clips forward,
while pushing the louvre assem-
bly back. Lift the clip.
B
HINGE
CLIP
S L O T
Remove the
backing of the
logo supplied and
place on the glass
viewing door, as
indicated.
LOGO PLACEMENT
FIGURE 18
LOGO
½"
½"
1. Align the holes in the louvre
brackets with the pre-drilled
holes in the firebox, as shown.
2. Secure louvre brackets in
place using screws.
GDL42 LOUVRE INSTALLATION
DOOR INSTALLATION
LOUVRE BRACKET INSTALLATION
FINISHING
A
B
L42 LOUVRE INSTALLATION
FIGURE 14
